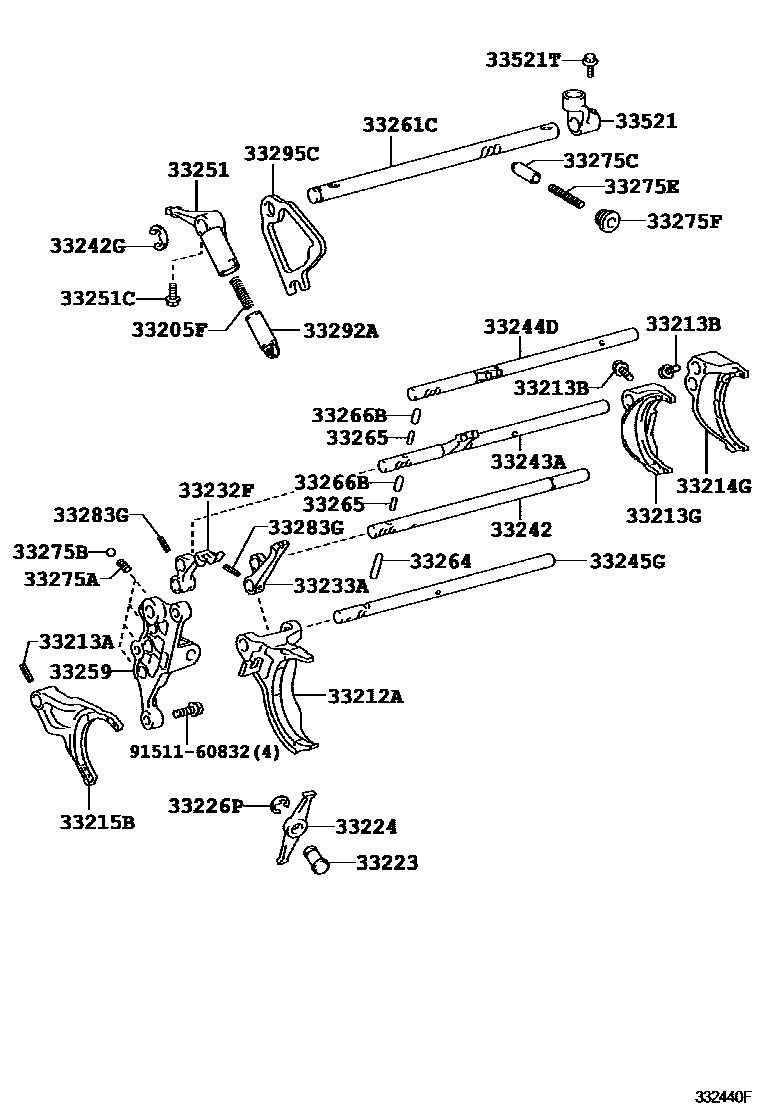

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33205FSPRING, COMPRESSION(FOR SELECT RETURN)
33212AFORK, GEAR SHIFT, NO.1
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33223PIVOT, SHIFT ARM
33224ARM, 1ST & REVERSE SHIFT
33226PRING, E(FOR 1ST & 2ND SHIFT RETURN PLUNGER)
33242GRING, E (FOR SHIFT FORK SHAFT)
33251CBOLT, SET (FOR SHIFT & SELECT LEVER)
33259BRACKET, SHIFT INTERLOCK
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
L=11.5,OD=4.8
L=24.6,OD=6
33265PIN, SHIFT INTERLOCK, NO.2
L=11.2,OD=4
33266BPIN, SHIFT INTERLOCK, NO.3
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=18,TYPE A:REFER ILLUST.
OD=17,TYPE B:REFER ILLUST.
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=13.5
L=33.8
L=15.35
33275BBALL, SHAFT DETENT
33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)
33275FPLUG (FOR SHIFT DETENT BALL)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33295CCAM, SHIFT & SELECT
33521HOUSING, SHIFT LEVER
33521TBOLT (FOR SHIFT LEVER HOUSING)
9151160832
main91511-60832
36 parts on this diagram · 3 diagrams in section
