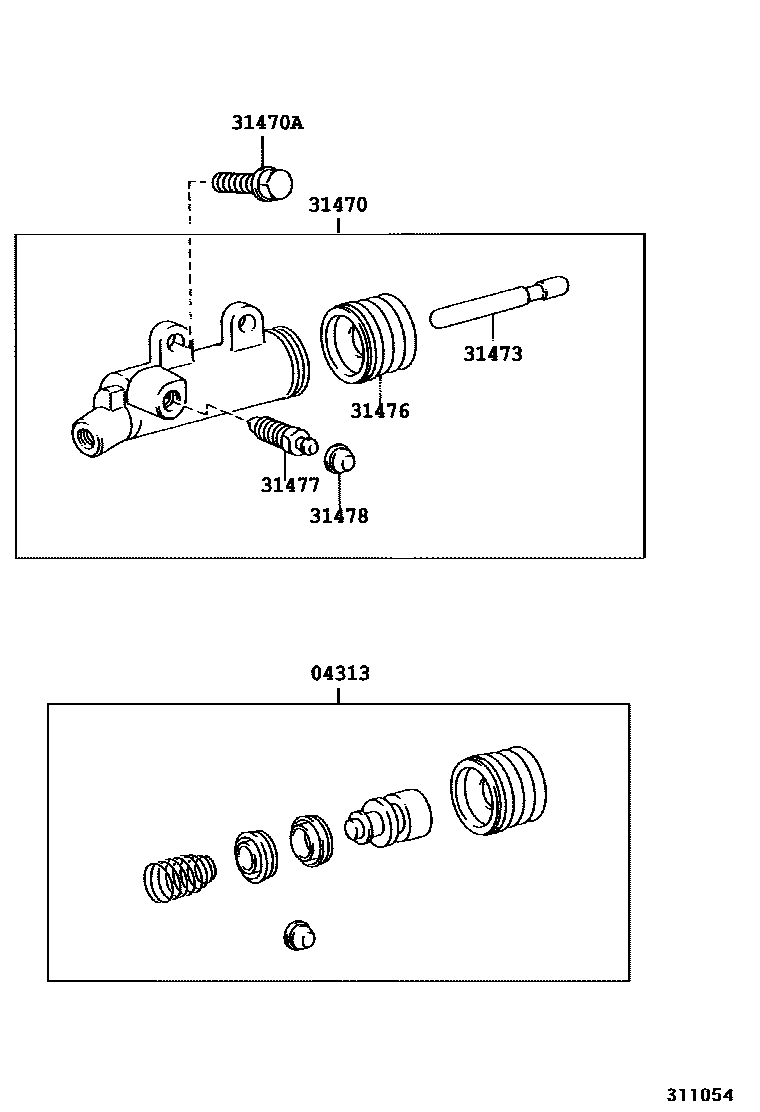

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-34010iGRN225,245,265..6F200409-201009

sub04313-34011

main04313-34011iGRN225,245..6F201009-201508

main04313-35070iGRN305..6F201508-201909

main04313-60170iTRN26#200409-201711

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-35180iGRN225,245,265..6F200409-201009

sub31470-35181

main31470-35181iGRN225,245..6F201009-201508

main31470-35190iTRN22#,24#..5F200409-201111

sub31470-35191

main31470-35191iTRN225,245..5F201111-201711

main31470-35210iGRN305..6F201508-201909

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90119-T0221iGRN305..6F201508-201909

*8-1.25PX25-20.1,(L)

main91611-B0825iGRN225,245,TRN225,245..5F,6F200409-201711

*8-1.25PX25-25

main91611-B0825iGRN305..6F201508-201909

*8-1.25PX25-25,(J)

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22030iTRN22#,24#,26#..5F200409-201711

main31473-35060iGRN305..6F201009-201909

main31473-60160iGRN265..6F200409-201009

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iTRN225,245..5F200409-201711

main31476-36010iGRN225,245..6F200409-201909

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iGRN305..6F200409-201909

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iGRN225,245,265,TRN22#,24#,26#..5F,6F200409-201909

7 parts on this diagram · 2 diagrams in section
