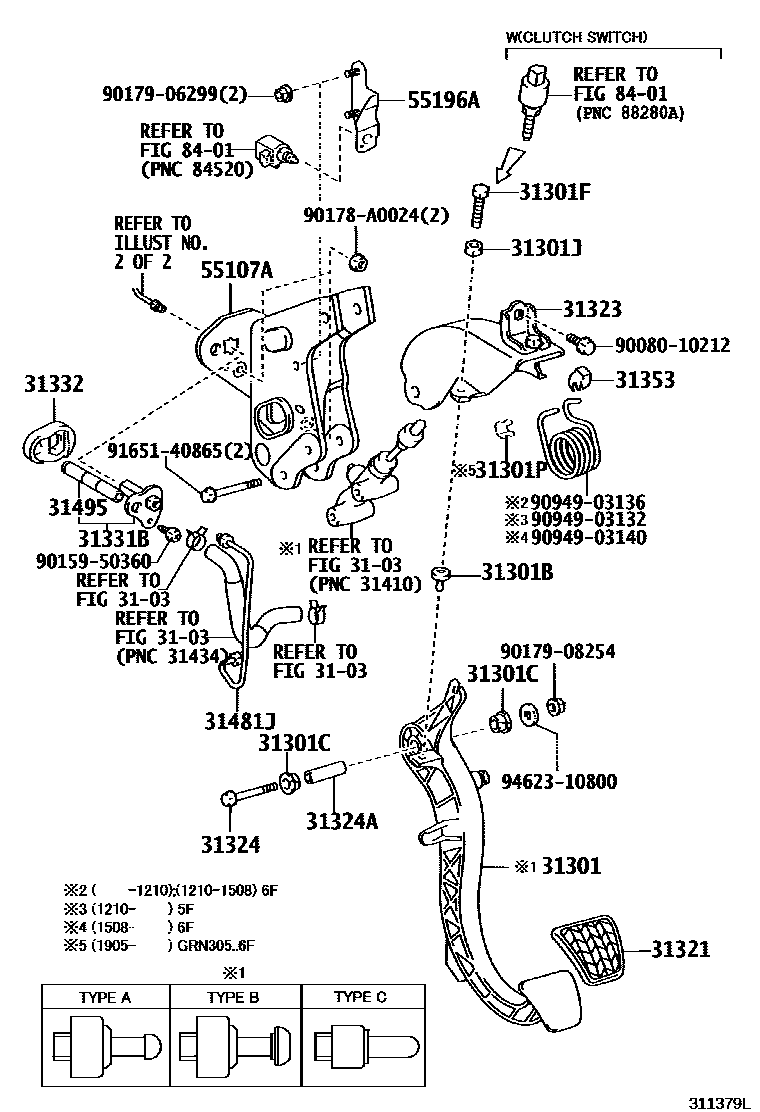

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

3103

31301PEDAL SUB-ASSY, CLUTCH

main31311-04010iGRN225,245,265,TRN22#,24#,26#..5F,6F200409-200603

sub31311-04011

main31311-04011iGRN225,245,TRN22#,24#..5F,6F200604-201109

sub31311-04020

main31311-04011iGRN225,245,TRN22#,24#..5F,6F201109-201203

TYPE A:REFER 31-03

sub31311-04020

main31311-04012iGRN225,245,TRN225,245..5F,6F201203-201409

TYPE B:REFER 31-03

main31311-04020iGRN225,245,TRN225,245..5F,6F201409-201508

TYPE C:REFER 31-03

sub31311-04021

sub90389-06055

main31311-04020iGRN305,TRN245..5F,6F201508-201905

sub31311-04021

sub90389-06055

main31311-04021iGRN305..6F201905-201909

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iGRN225,245,265,TRN22#,24#,26#..5F,6F200409-201909

31301CBUSH(FOR CLUTCH PEDAL)

main90386-14015iGRN305,TRN245..5F,6F200409-201909

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iGRN245,265,TRN22#,24#,26#..5F,6F200409-201508

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94130-61000iGRN245,265,TRN22#,24#,26#..5F,6F200409-201508

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iGRN305..6F201905-201909

31321PAD, CLUTCH PEDAL

main31321-52010iGRN225,245,TRN225,245..5F,6F200409-201909

31323BRACKET, CLUTCH PEDAL

main55105-04020iGRN225,245,265,TRN22#,24#,26#..5F,6F200409-201909

31324SHAFT, CLUTCH PEDAL

main90105-08261iGRN225,245,265,TRN22#,24#,26#..5F,6F200409-201909

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-08160iGRN225,245,265,TRN22#,24#,26#..5F,6F200409-201909

31331BWAY, CLUTCH PEDAL SUPPORT

main31331-60010iGRN225,245,265,TRN22#,24#,26#..5F,6F200409-201909

31332GROMMET, CLUTCH PEDAL SUPPORT

main31332-60010iGRN225,245,265,TRN22#,24#,26#..5F,6F200409-201909

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iGRN225,245,TRN225,245..5F,6F200409-201909

31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE

main31481-04080iTRN26#200409-201508

main31481-04090iGRN225,245..6F200409-201508

main31481-04120iGRN305..6F201508-201711

main31481-04121iGRN305..6F201711-201909

main31481-04130iTRN245..5F201508-201711

31481JTUBE, CLUTCH MASTER CYLINDER TO 2 WAY

main31481-6A050iGRN225,245,265,TRN22#,24#,26#..5F,6F200409-201909

31495WAY, CLUTCH TUBE

main31495-60100iGRN305..6F200409-201909

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-04030iGRN225,245,265,TRN22#,24#,26#..5F,6F200409-201909

55196ABRACKET, CLUTCH START SWITCH MOUNTING

main55196-04020iGRN225,245,265,TRN22#,24#,26#..5F,6F200409-201909

8401

9008010212

main90080-10212

9015950360

main90159-50360

90178A0024

main90178-A0024

9017906299

main90179-06299

9017908254

main90179-08254

9094903132

main90949-03132

9094903136

main90949-03136

9094903140

main90949-03140

9165140865

main91651-40865

9462310800

main94623-10800

30 parts on this diagram · 4 diagrams in section
