ALTERNATOR

0001 112V 90A 0002 112V 100A,12V 130A 0003 112V 80A 0004 112V 100A,12V 130A 0005 112V 80A 0006 112V 100A 0007 112V 100A 0008 112V 130A

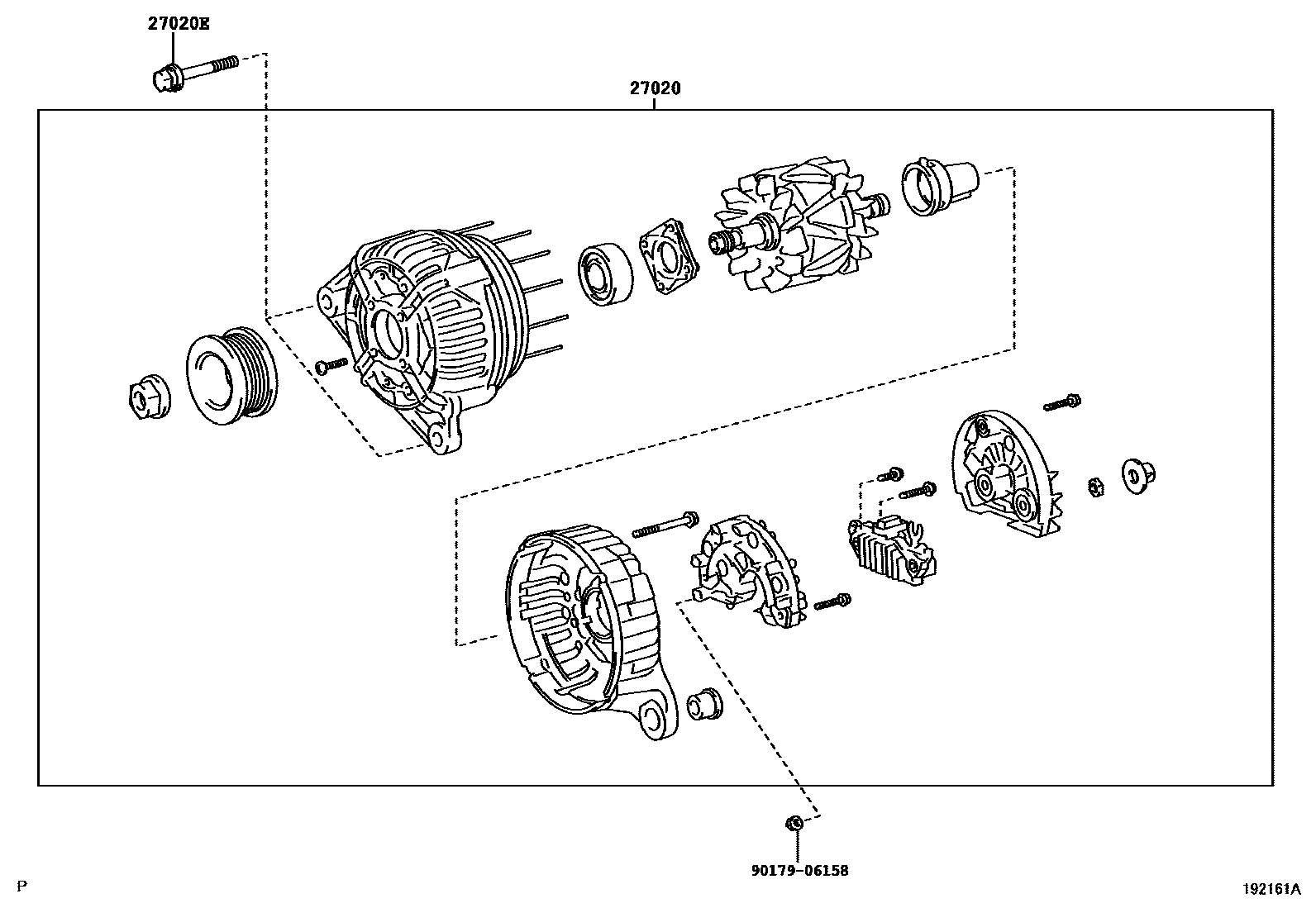

27020ALTERNATOR ASSY

main27060-0C170i2TRFE..TRN245,265201508-201909

12V 100A

main27060-0P010i1GRFE..GRN245,265..6F200409-200511

12V 90A

sub27060-0P020

main27060-0P030i1GRFE..GRN225,245,250,265,270200409-201508

12V 100A

main27060-0P350i2GRFKS..GRN305..6F201508-201711

12V 130A,TOWING PACKAGE-WITH

main27060-0P350i2GRFKS..GRN305,310,325,330..6FC201508-202009

12V 130A

main27060-0P460i2GRFKS..GRN305,310,325,330202009

12V 130A

main27060-31340i2GRFKS..GRN305..6F201508-201711

12V 100A

main27060-75310i2TRFE..TRN22#,24#,26#200409-200608

12V 80A

sub27060-75311

main27060-75410i2TRFE..TRN22#,24#,26#200608-200902

12V 80A

sub27060-75411

main27060-75411i2TRFE..TRN22#,24#,26#200903-200910

12V 80A

sub27060-75412

main27060-75412i2TRFE..TRN22#,24#;2TRFE..TRN265..4FC200911-201010

12V 80A

sub27060-75413

main27060-75490i2TRFE..TRN225,245,265201011-201508

12V 80A

27020EBOLT(FOR ALTERNATOR)

main90105-A0107i2GRFKS..GRN305,310,325,330201711-201909

(L)

main90119-A0146i1GRFE..GRN265..5FC;1GRFE..GRN225,245,250,270200409-201508

main91552-81040i2GRFKS..GRN305,310,325,330201508-201711

main91552-81040i2GRFKS..GRN305,310,325,330201711-201909

(J)

main91552-81085i2TRFE..TRN245,265200409-201909

9017906158

main90179-06158

3 parts on this diagram · 8 diagrams in section
