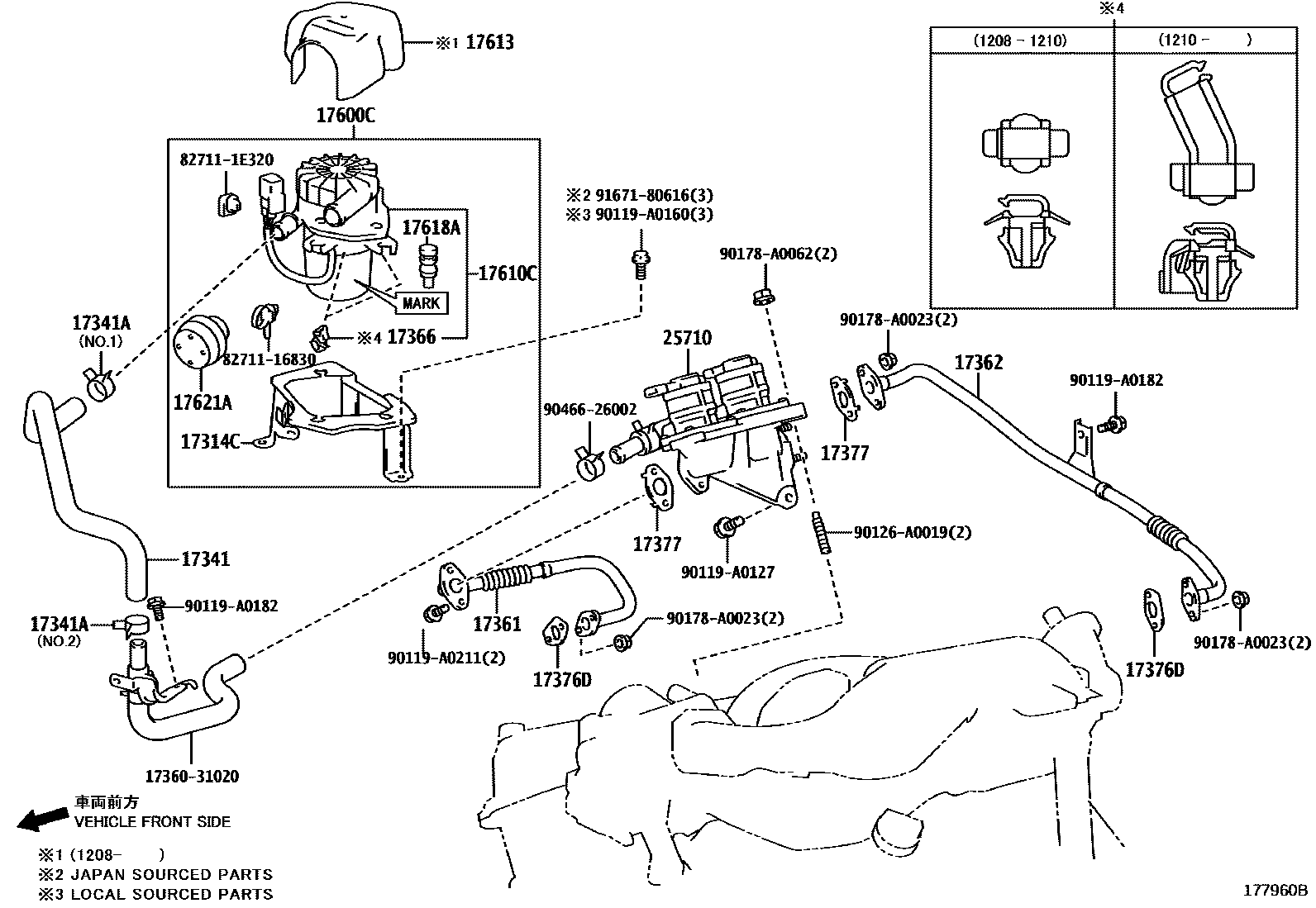

MANIFOLD AIR INJECTION SYSTEM

0001 1 0002 1

17314CBRACKET, AIR PUMP

main17314-0C040i2TRFE..TRN245,265200409-201909

main17314-0P010i1GRFE..GRN225,245,250,265,270201109

MEXICO SPEC

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-0C040i2TRFE..TRN26#200409-201109

main17341-0C041i2TRFE..TRN245,265201109-201909

main17341-0P020i1GRFE..GRN245,265..DCB..5FC201109

MEXICO SPEC

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main90466-26002i2TRFE..TRN245,265201109-201909

NO.2

main90466-26002i1GRFE..GRN225,245,250,265,270201109

MEXICO SPEC,NO.2

main90467-28007i2TRFE..TRN22#,24#,26#200409-201109

NO.2

main96134-42300i2TRFE..TRN245,265201109-201909

NO.1

main96134-52600i2TRFE..TRN26#200409-201109

NO.1

17361TUBE, AIR

main17361-31020i1GRFE..GRN225,245,250,265,270201109

MEXICO SPEC

17362TUBE, AIR, NO.2

main17362-31030i1GRFE..GRN225,245,250,265,270201109

MEXICO SPEC

17366CLAMP, AIR INJECTION HOSE, NO.1

main17366-0P010i2TRFE..TRN245,265201210-201909

main17366-0P010i1GRFE..GRN225,245,250,265,270201210

MEXICO SPEC

main17366-38020i2TRFE..TRN22#,24#,265..4FC201208-201210

MEXICO SPEC

17376DGASKET, AIR TUBE, NO.2

main17376-50010i1GRFE..GRN225,245,250,265,270201109

MEXICO SPEC

17377GASKET, AIR TUBE, NO.2

main17377-31010i1GRFE..GRN225,245,250,265,270201109

MEXICO SPEC

17600CPUMP ASSY, AIR

main17600-0C020i2TRFE..TRN22#,24#,26#200409-201508

main17600-0C040i2TRFE..TRN220,240..4FC201109-201909

main17600-0P040i1GRFE..GRN225,245,250,265,270201109

MARK 17600-0P040

main17600-0P040i1GRFE..GRN245,265..DCB..5FC201109

MEXICO SPEC,MARK 17600-0P040

17610CPUMP ASSY, AIR

main17610-0C050i2TRFE..TRN220,240..4FC201109-201909

main17610-0W020i1GRFE..GRN225,245,250,265,270201109

MEXICO SPEC,MARK 17610-0W020

main17610-0W020i1GRFE..GRN225,245,250,265,270201109

MARK 17610-0W020

17613COVER, AIR PUMP

main17613-0P010i2TRFE..TRN220,240..4FC201208-201909

main17613-0P010i1GRFE..GRN225,245,250,265,270201208

MEXICO SPEC

17618AINSULATOR, AIR PUMP

main17618-0C010i2TRFE..TRN26#200409-201909

main17618-0C010i1GRFE..GRN225,245,250,265,270201109

MEXICO SPEC

17621AINLET, AIR PUMP

main17621-0C010i2TRFE..TRN220,240..4FC201109-201909

main17621-0C010i1GRFE..GRN225,245,250,265,270201109

MEXICO SPEC

25710VALVE ASSY, AIR SWITCHING

main25710-31020i1GRFE..GRN245,265..DCB..5FC201109-201205

MEXICO SPEC

sub25710-31021

main25710-31021i1GRFE..GRN245,265..DCB..5FC201206-201304

MEXICO SPEC

sub25710-31022

main25710-31022i1GRFE..GRN245,265..DCB..5FC201305

MEXICO SPEC

main25710-75010i2TRFE..TRN22#,24#,26#200409-200912

sub25710-75011

main25710-75011i2TRFE..TRN22#,24#,26#200912-201006

sub25710-75012

sub17117-75011

sub90126-08031

main25710-75012i2TRFE..TRN22#,24#,265201006-201201

sub25710-75013

main25710-75013i2TRFE..TRN22#,24#,265201201-201206

sub25710-75014

main25710-75014i2TRFE..TRN22#,24#,265201206-201305

sub25710-75015

main25710-75015i2TRFE..TRN245,265201305-201909

1736031020TUBE ASSY, AIR

main17360-31020

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E320

90119A0127

main90119-A0127

90119A0160

main90119-A0160

90119A0182

main90119-A0182

90119A0211

main90119-A0211

90126A0019

main90126-A0019

90178A0023

main90178-A0023

90178A0062

main90178-A0062

9046626002

main90466-26002

9167180616

main91671-80616

26 parts on this diagram · 2 diagrams in section
