WATER PUMP

0001 1 0002 1 0003 1 0004 1

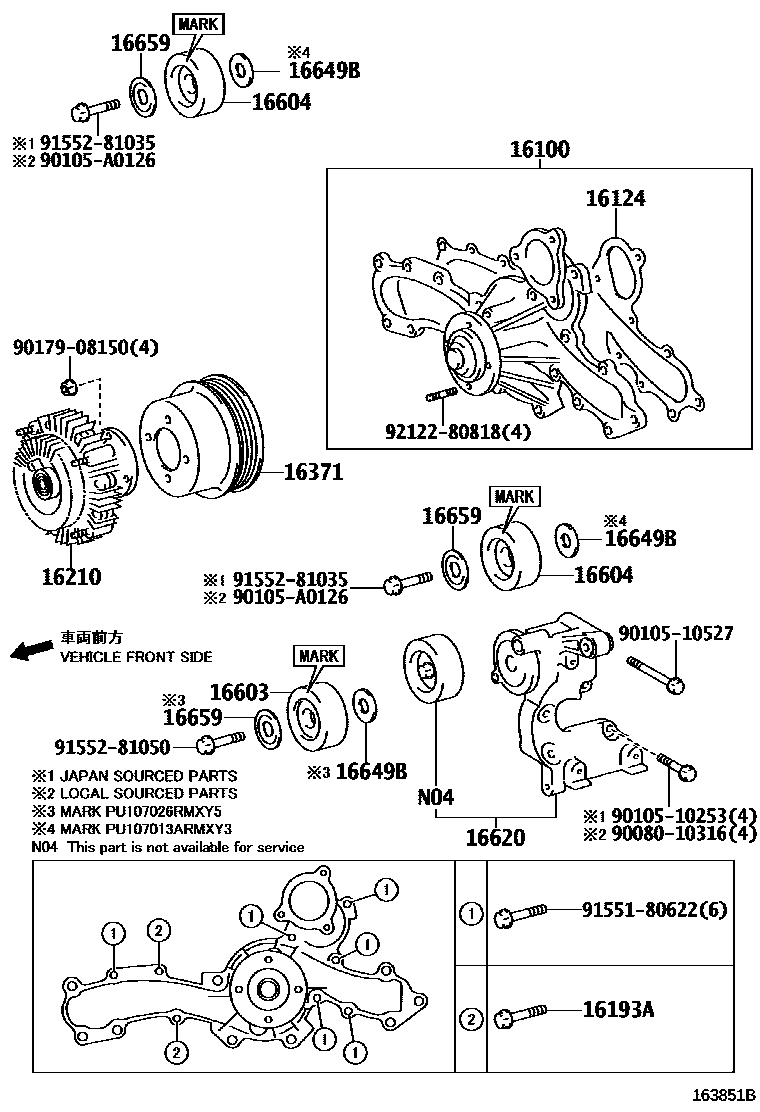

16100PUMP ASSY, ENGINE WATER

main16100-09470i1GRFE..GRN225,245,250,265,270200508-200901

main16100-09471i1GRFE..GRN225,245,250,265,270200901-201508

main16100-09720i2GRFKS..GRN305,310,325,330201508-201909

main16100-39405i1GRFE..GRN225,245,250,265,270200409-200508

main16100-79445i2TRFE..TRN22#,24#;2TRFE..TRN265..4FC200409-201909

16124GASKET, WATER PUMP COVER

main16124-0P030i1GRFE..GRN265..5FC;1GRFE..GRN225,245,250,270200805-201508

main16124-0P030i1GRFE..GRN225,245,250,265,270200508-200805

(L)

main16124-31070i1GRFE..GRN225,245,250,265,270200409-200805

(J)

main16124-75030i2TRFE..TRN22#,24#,26#200409-201909

16193ABOLT(FOR WATER PUMP COVER)

main16193-0P040i2GRFKS..GRN305,310,325,330201508-201909

(L)

main16193-31080i2GRFKS..GRN305,310,325,330201508-201909

(J)

main16193-31080i1GRFE..GRN225,245,250,265,270200409-201508

16210COUPLING ASSY, FLUID

main16210-0P010i1GRFE..GRN265..5FC;1GRFE..GRN225,245,250,270200805-201508

main16210-0P010i1GRFE..GRN225,245,250,265,270200508-200805

(L)

main16210-0P020i2GRFKS..GRN305,310,325,330201508-201909

(L)

main16210-31020i1GRFE..GRN225,245,250,265,270200409-200805

(J)

main16210-31040i2GRFKS..GRN305,310,325,330201508-201909

(J)

main16210-75100i2TRFE..TRN22#,24#,26#200409-200508

main16210-75110i2TRFE..TRN22#,24#,26#200508-200709

main16210-75111i2TRFE..TRN245,265200709-201909

16371PULLEY, FAN

main16371-0P010i1GRFE..GRN265..6F200805-201508

main16371-0P010i1GRFE..GRN225,245,250,265,270200508-200805

(L)

main16371-0P020i2GRFKS..GRN305,310,325,330201508-201909

main16371-31040i1GRFE..GRN225,245,250,265,270200409-200805

(J)

main16371-75040i2TRFE..TRN225,245,265200409-201909

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-0P010i1GRFE..GRN225,245,250,265,270200508-200509

PU107026RMXY5,(L)

main16603-0P020i1GRFE..GRN225,245,250,265,270200509-200805

PU107029RMXY,(L)

main16603-0P020i1GRFE..GRN225,245,250,265,270200805-200811

PU107029RMXY

main16603-0P030i1GRFE..GRN225,245,250,265,270200811-201508

main16603-31010i2TRFE..TRN22#,24#,26#200409-200502

MARK=PU107026RMXY

main16603-31030i2TRFE..TRN22#,24#,26#200502-200703

MARK=PU107026RMXY5

main16603-31030i1GRFE..GRN225,245,250,265,270200409-200511

PU107026RMXY5,(J)

main16603-31040i2TRFE..TRN225,245,265200703-201604

MARK=PU107029RMXY

main16603-31040i1GRFE..GRN225,245,250,265,270200511-200805

PU107029RMXY,(J)

main16603-31050i2TRFE..TRN245,265201605-201909

MARK=PU107029RMXY

main16603-31050i1GRFE..GRN225,245,250,265,270200804-201711

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-0P010i1GRFE..GRN225,245,250,265,270200508-200805

PU107013ARMXY1,(L)

main16604-0P010i1GRFE..GRN225,245,250,265,270200805-200811

MARK=PU107013ARMXY1

main16604-0P011i1GRFE..GRN265..5FC;1GRFE..GRN225,245,250,270200811-201508

main16604-31010i1GRFE..GRN225,245,250,265,270200409-200805

PU107013ARMXY1,(J)

main16604-31020i1GRFE..GRN225,245,250,265,270200711-200805

MARK=PU107013ARMXY3

main16604-31030i2GRFKS..GRN305,310,325,330201508-201909

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0P010i2GRFKS..GRN305,310,325,330201508-201909

main16620-31012i1GRFE..GRN225,245,250,265,270200409-201508

16649BPLATE, IDLER PULLEY COVER

main16649-31010i1GRFE..GRN225,245,250,265,270200409-200511

main16649-31020i1GRFE..GRN225,245,250,265,270200711-201508

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-31011i1GRFE..GRN225,245,250,265,270200409-200805

(J)

main16659-31011i2TRFE..TRN22#,24#,26#200409-200703

main16659-AD010i1GRFE..GRN225,245,250,265,270200508-200805

(L)

main16659-AD010i1GRFE..GRN225,245,250,265,270200805-201508

9008010316

main90080-10316

9010510253

main90105-10253

9010510527

main90105-10527

90105A0126

main90105-A0126

9017908150

main90179-08150

9155180622

main91551-80622

9155281035

main91552-81035

9155281050

main91552-81050

9212280818

main92122-80818

19 parts on this diagram · 4 diagrams in section
