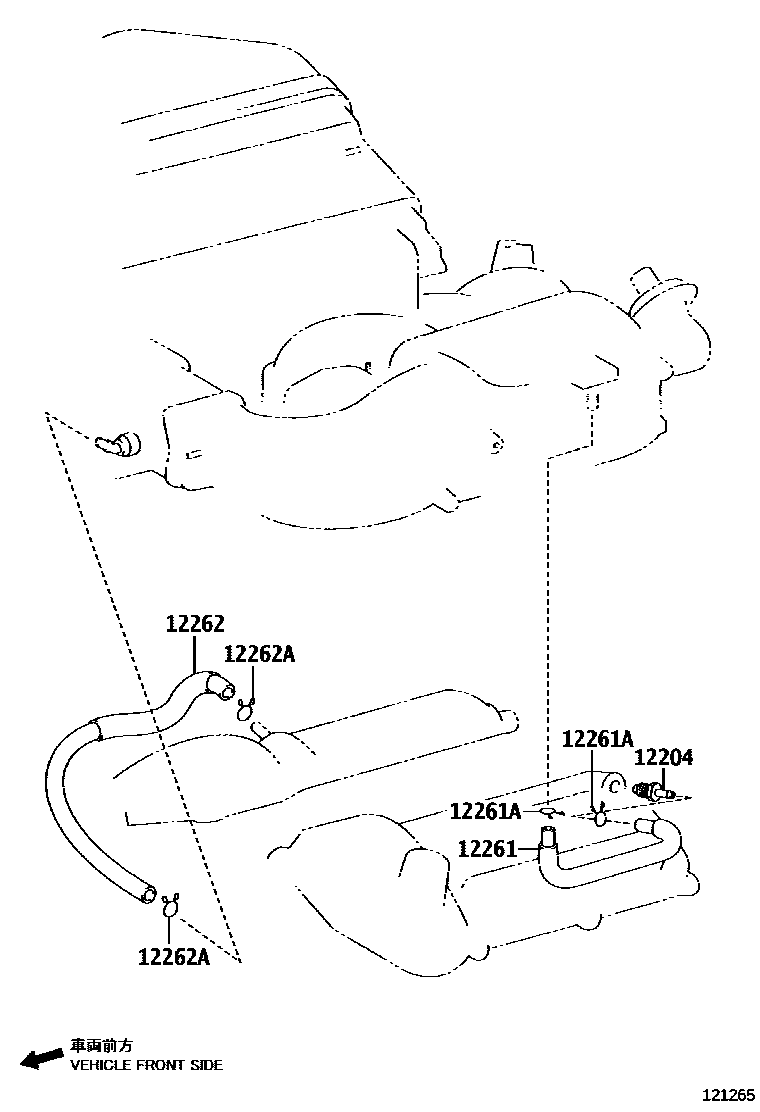

VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
(L)
(J)
12261HOSE, VENTILATION
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
12262HOSE, VENTILATION, NO.2
12262ACLIP(FOR VENTILATION HOSE NO.2)
NO.1
NO.2
5 parts on this diagram · 4 diagrams in section
