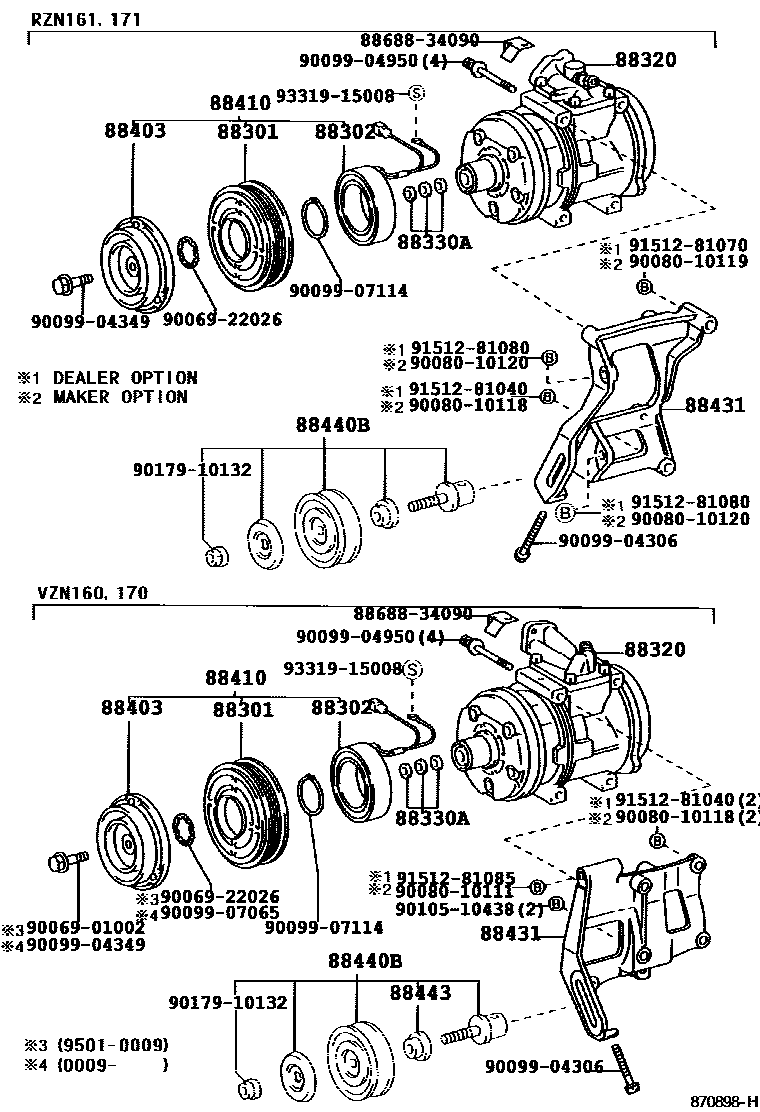

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-35090iVZN160,170199501-200409

main88412-95J00iRZN161,171199501-200409

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-04010iRZN161,171199501-200409

main88411-2A030iVZN170200009-200409

88320COMPRESSOR ASSY, COOLER

main88320-04010iVZN170200009-200409

main88320-04020iRZN161,171200009-200409

main88320-35540iRZN161,171199501-200009

sub88320-35H92

main88320-35550iVZN160,170199501-200009

sub88320-60H91

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iRZN161,171,VZN170199501-200409

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290iRZN161,171,VZN160,170199501-200409

88410CLUTCH ASSY, MAGNET

main88410-04020iRZN161,171199501-200409

main88410-04030iVZN160,170199501-200009

main88410-35340iVZN170200009-200409

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-04030iRZN161,171199501-199509

main88431-04030iRZN161,171199509-200409

MAKER OPTION

main88431-04040iVZN160,170199501-199509

main88431-04040iVZN160,170199509-200009

MAKER OPTION

main88431-0C020iVZN170200009-200409

main88431-34020iRZN161,171199706-200009

DEALER OPTION

main88431-35070iVZN170199706-200009

DEALER OPTION

88440BPULLEY ASSY, IDLE

main88440-04030iRZN161,171199501-200409

main88440-04040iVZN170199501-200409

88443COLLAR, IDLE PULLEY

main88443-36010iVZN170200009-200409

8868834090BRACKET, COOLER DIAPHRAGM

main88688-34090

9006901002

main90069-01002

9006922026

main90069-22026

9008010111

main90080-10111

9008010118

main90080-10118

9008010119

main90080-10119

9008010120

main90080-10120

9009904306

main90099-04306

9009904349

main90099-04349

9009904950

main90099-04950

9009907065

main90099-07065

9009907114

main90099-07114

9010510438

main90105-10438

9017910132

main90179-10132

9151281040

main91512-81040

9151281070

main91512-81070

9151281080

main91512-81080

9151281085

main91512-81085

9331915008

main93319-15008
