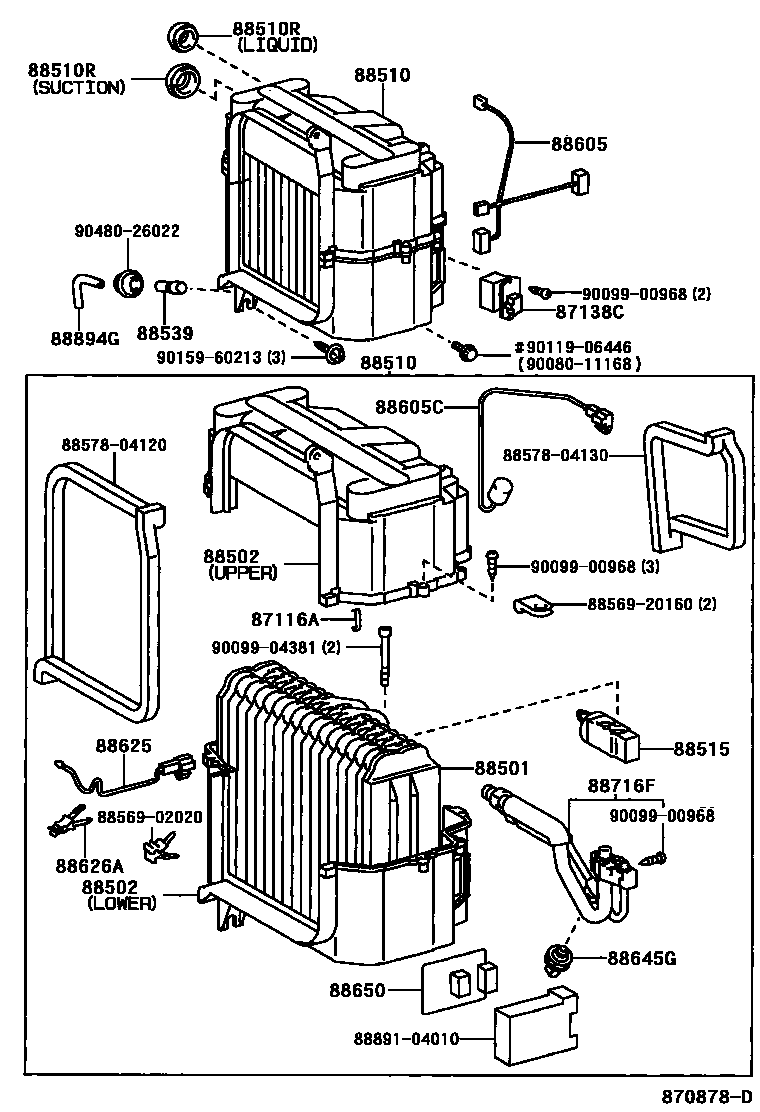

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MAKER OPTION 0002 1DEALER OPTION 0003 1 0004 1DEALER OPTION 0005 1O-RING

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-04020iRZN161,171,VZN160,170199501-200409

MAKER OPTION

main87116-04020iVZN170..4FC199706-200409

DEALER OPTION

main87116-14010iRZN161,171,VZN160,170199501-199706

DEALER OPTION

87138CRESISTOR, BLOWER

main87138-35040iRZN161,171,VZN170199501-200009

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-04030iRZN161,171,VZN170200009-200409

DEALER OPTION

main88501-04030iRZN161,171,VZN160,170199501-200009

88502CASE SUB-ASSY, COOLING UNIT

main88502-04010iRZN161,171,VZN170199706-200409

DEALER OPTION,UPPER

main88502-04010iRZN161,171,VZN160,170199501-200409

UPPER

main88502-04010iRZN161,171,VZN170200009-200409

MAKER OPTION,UPPER

main88502-04011iRZN161,171,VZN160,170199612-199707

MAKER OPTION,UPPER

main88502-04020iRZN161,171,VZN160,170199501-199706

LOWER

sub88502-04021

main88502-04021iRZN161,171,VZN160,170199612-200409

MAKER OPTION,LOWER

main88502-04021iRZN161,171,VZN170200009-200409

LOWER

main88502-04021iRZN161,171,VZN170200009-200409

DEALER OPTION,LOWER

88510UNIT ASSY, COOLER

main88510-04130iRZN161,171,VZN160,170199501-199612

sub88510-04131

main88510-04130iRZN161,171,VZN160,170199612-199706

DEALER OPTION

sub88510-04131

main88510-04131iRZN161,171,VZN160,170199612-199706

MAKER OPTION

main88510-04131iRZN161,171,VZN170199706-200009

main88510-04190iRZN161,171,VZN170200009-200409

88510RGROMMET (FOR COOLER UNIT)

main90480-15033iRZN161,171,VZN170199706-200409

LIQUID SIDE

main90480-21007iRZN161,171,VZN170199706-200409

SUCTION SIDE

main90480-26027iVZN170199706-200009

DEALER OPTION,LIQUID SIDE

main90480-26027iRZN161,171,VZN160,170199501-199706

LIQUID SIDE

main90480-36019iVZN170199706-200009

DEALER OPTION,SUCTION SIDE

main90480-36019iRZN161,171,VZN160,170199501-199706

SUCTION SIDE

88515VALVE, COOLER EXPANSION

main88515-04030iVZN170..4FC199501-200409

MAKER OPTION

main88515-06020iRZN161,171,VZN170199612-200409

DEALER OPTION

main88515-06020iRZN161,171,VZN160,170199501-199706

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-04020iRZN161,171,VZN160,170199501-200409

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-04040iRZN161,171,VZN160,170199501-200009

88605CHARNESS SUB-ASSY, COOLER WIRING, NO.2

main88605-04050iRZN161,171,VZN170199501-200409

88625THERMISTOR, COOLER, NO.1

main88625-35030iRZN161,171,VZN160,170199501-200409

88626AHOLDER, THERMISTOR

main88626-28010iRZN161,171,VZN160,170199501-200409

88645GSWITCH, PRESSURE

main88645-04040iRZN161,171,VZN170199501-200409

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-04010iRZN161,171,VZN160,170199501-200009

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88710-04060iRZN161,171,VZN160,170199501-200009

main88710-04120iRZN161,171,VZN170200009-200409

88894GCONNECTOR, DRAIN HOSE

main88894-04070iVZN170199909-200409

8856902020CLAMP (FOR COOLER RELAY)

main88569-02020

8856920160CLAMP (FOR COOLER RELAY)

main88569-20160

8857804120PAKING, COOLER AIR DUCT

main88578-04120

8857804130PAKING, COOLER AIR DUCT

main88578-04130

8889104010PACKING (FOR COOLER)

main88891-04010

9008011168

main90080-11168

9009900968

main90099-00968

9009904381

main90099-04381

9011906446

main90119-06446

9015960213

main90159-60213

9048026022

main90480-26022

27 parts on this diagram · 5 diagrams in section
