HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-04030iRZN161,171,VZN160,170199501-200009

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-04030iRZN161,171,VZN160,170199501-200009

main87107-0C010iRZN161,171,VZN170200009

87111CASE, HEATER

main87111-04030iRZN161,171,VZN160,170199501-199810

UPPER

main87111-04040iRZN161,171,VZN160,170199501-199810

LOWER

87130BLOWER ASSY, HEATER, FRONT

main87130-04030iRZN161,171,VZN160,170199501-199706

main87130-04031iRZN161,171,VZN170199706-200009

main87130-04050iRZN161,171,VZN170200009

8715

87150RADIATOR ASSY, HEATER

main87150-04050iRZN161,171,VZN160,170199501-199703

sub87150-04051

main87150-04051iRZN161,171,VZN160,170199703-199809

sub87150-04052

main87150-04052iRZN161,171,VZN170199809-200009

main87150-04060iRZN161,171,VZN170200009

87211EDUCT, AIR

main87211-04040iRZN161,171,VZN160,170199501-200009

87211FDUCT, AIR

main87211-04050iRZN161,171,VZN160,170199501-199809

sub87211-04051

main87211-04051iRZN161,171,VZN170199809-200009

main87211-04070iVZN170..DCB200009

main87211-04080iRZN161,171,VZN170..RCB,XTR200009

8712602020CLAMP, HEATER CONTROL

main87126-02020

9008011168

main90080-11168

9011906446

main90119-06446

9017906069

main90179-06069

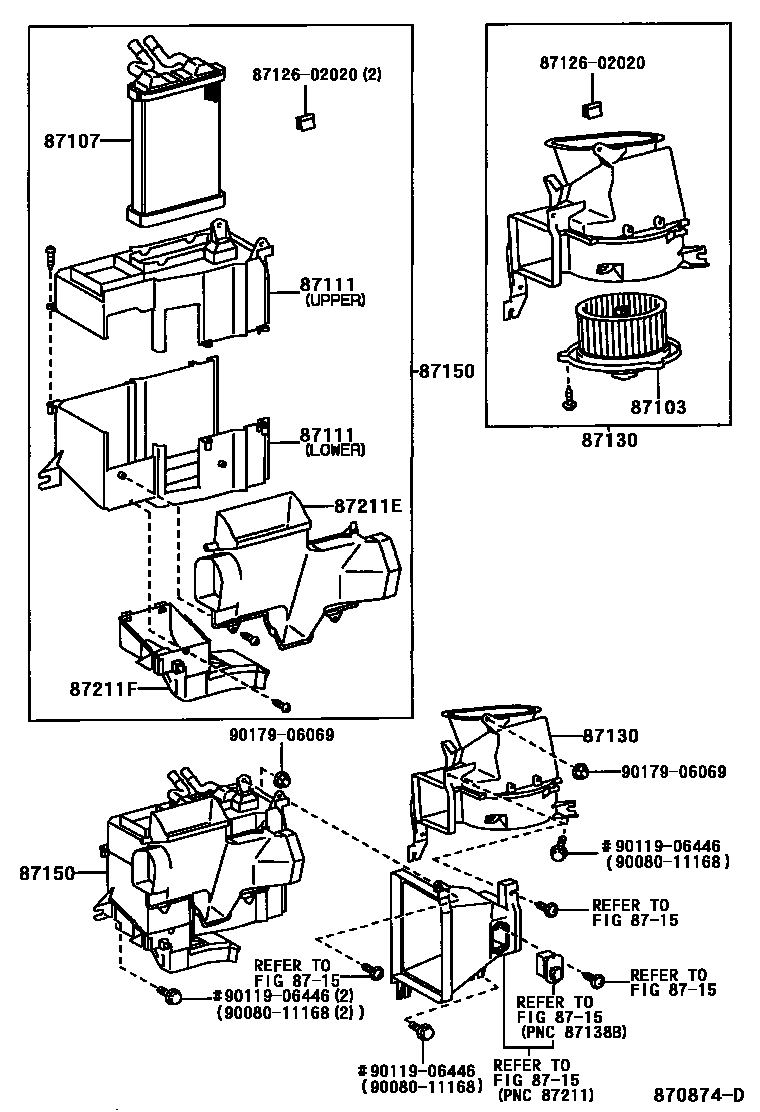

12 parts on this diagram · 2 diagrams in section
