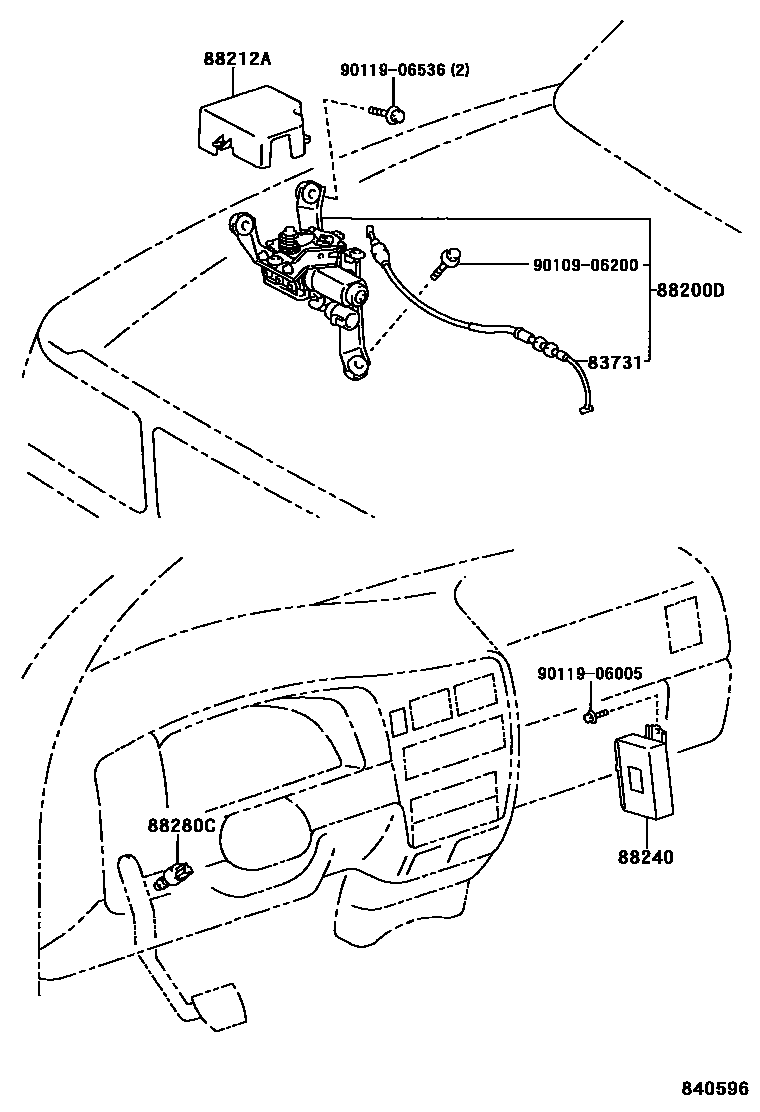

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1 0003 1 0004 1

83731CABLE, CRUISE CONTROL

main83731-35200iVZN170..4FC199501-199609

main83731-35210iVZN160,170..R199501-199609

main83731-35221iVZN170..4FC199609-200009

main83731-35230iVZN170..4FC200009-200209

main83731-35241iVZN160,170..R199609-200009

main83731-60040iVZN170..R200009-200209

88200DACTUATOR ASSY, CRUISE CONTROL

main88001-04020iVZN170199803-199808

sub88001-04030

main88001-04030iVZN170199808-200009

main88001-0W010iVZN160,170199609-199803

main88002-35050iVZN170..4FC199501-199609

main88002-35060iVZN160,170..R199501-199609

main88200-04030iVZN170200009-200209

main88200-35260iRZN161,171199501-199706

main88200-35290iRZN161,171199706-200009

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-06010iRZN161,171199706-200009

main88212-35090iVZN160,170199501-199609

main88212-35110iVZN170200009-200209

88240COMPUTER ASSY, CRUISE CONTROL

main88240-04020iRZN161,171200009

main88240-04030iVZN170..4FC200009-200209

main88240-04050iVZN170..R200009-200209

main88240-35230iRZN161,171,VZN160,170199501-199609

main88240-35231iRZN161,171199609-199706

main88240-35280iRZN161,171199706-199808

sub88240-35281

sub88240-35311

sub88240-35320

main88240-35310iRZN161,171199808-199908

sub88240-35311

main88240-35311iRZN161,171199908-200009

88280CSWITCH ASSY, CLUTCH

main88280-14030iRZN161,171,VZN160,170..5F199501-200409

9010906200

main90109-06200

9011906005

main90119-06005

9011906536

main90119-06536

8 parts on this diagram · 4 diagrams in section
