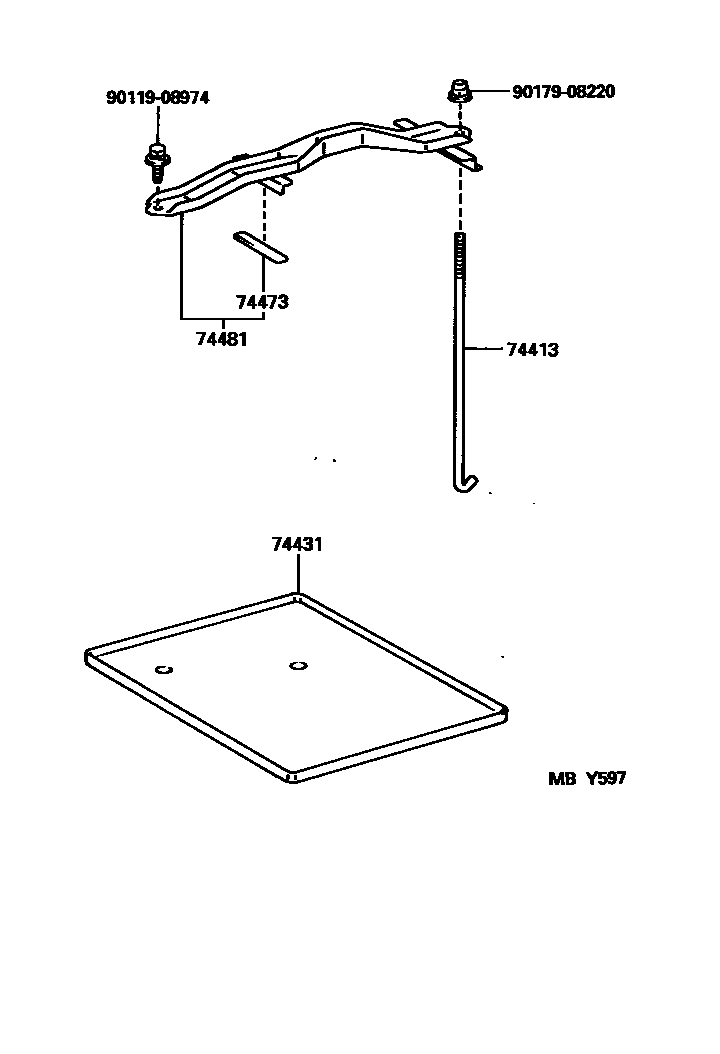

BATTERY CARRIER

74413BOLT, BATTERY CLAMP

main74451-AD010iRZN161,171,VZN160,170199501-200009

74431TRAY, BATTERY

main74431-03010iRZN161,171,VZN170199501-200009

W(80D26L BATTERY)

main74431-AD020iVZN170199501-200009

74473SPACER, BATTERY

main74473-22010iRZN161,171,VZN160,170199501-199706

74481CLAMP, BATTERY HOLD DOWN

main74404-04030iRZN161,171,VZN160,170199612-200009

(L)

main74404-04030iRZN161,171,VZN170200009

main74404-35140iRZN161,171,VZN160,170199501-199907

(J)

9011908974

main90119-08974

9017908220

main90179-08220

6 parts on this diagram · 1 diagram in section
