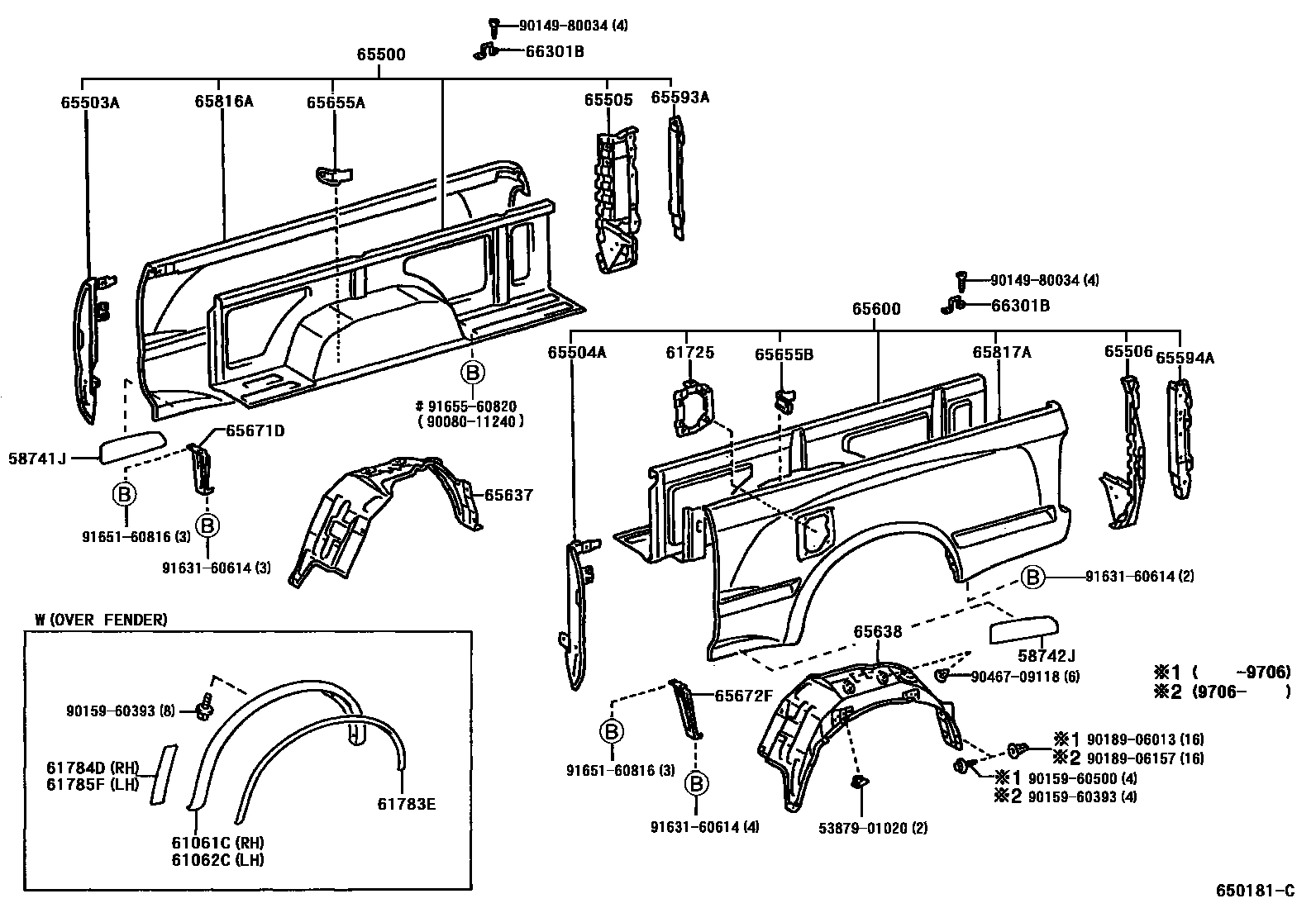

REAR BODY SIDE PANEL
58741JPROTECTOR, REAR WHEEL EXTENSION, RH
58742JPROTECTOR, REAR WHEEL EXTENSION, LH
61061CEXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.1 RH
61062CEXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.1 LH
61725BOX, FUEL INLET
W(STEP SIDE DECK)
61783EPAD, REAR WHEEL OPENING EXTENSION, NO.1
61784DPAD, REAR WHEEL OPENING EXTENSION, NO.2
61785FPAD, REAR WHEEL OPENING EXTENSION, NO.3
65500PANEL ASSY, REAR BODY SIDE, RH
W(OVER FENDER)
W(STEP SIDE DECK)
65503APOST SUB-ASSY, SIDE PANEL FRONT END, RH
65504APOST SUB-ASSY, SIDE PANEL FRONT END, LH
65505POST SUB-ASSY, SIDE PANEL REAR END, RH
65506POST SUB-ASSY, SIDE PANEL REAR END, LH
65593APLATE, SIDE PANEL REAR END POST INSIDE, RH
65594APLATE, SIDE PANEL REAR END POST INSIDE, LH
65600PANEL ASSY, REAR BODY SIDE, LH
W(OVER FENDER)
W(STEP SIDE DECK)
65637LINER, REAR WHEEL HOUSE, RH
65638LINER, REAR WHEEL HOUSE, LH
65655ABRACKET, WHEEL HOUSE SEAL, FRONT
65655BBRACKET, WHEEL HOUSE SEAL, FRONT
65671DBRACE, SIDE PANEL SKIRT, FRONT RH
65672FBRACE, SIDE PANEL SKIRT, FRONT LH
65816APANEL, REAR BODY SIDE, RH
W(OVER FENDER)
65817APANEL, REAR BODY SIDE, LH
W(OVER FENDER)
66301BHOOK SUB-ASSY, ROPE
5387901020LINER, FRONT FENDER, LH
main53879-01020
9008011240
main90080-11240
9014980034
main90149-80034
9015960393
main90159-60393
9015960500
main90159-60500
9018906013
main90189-06013
9018906157
main90189-06157
9046709118
main90467-09118
9163160614
main91631-60614
9165160816
main91651-60816
9165560820
main91655-60820
36 parts on this diagram · 3 diagrams in section
