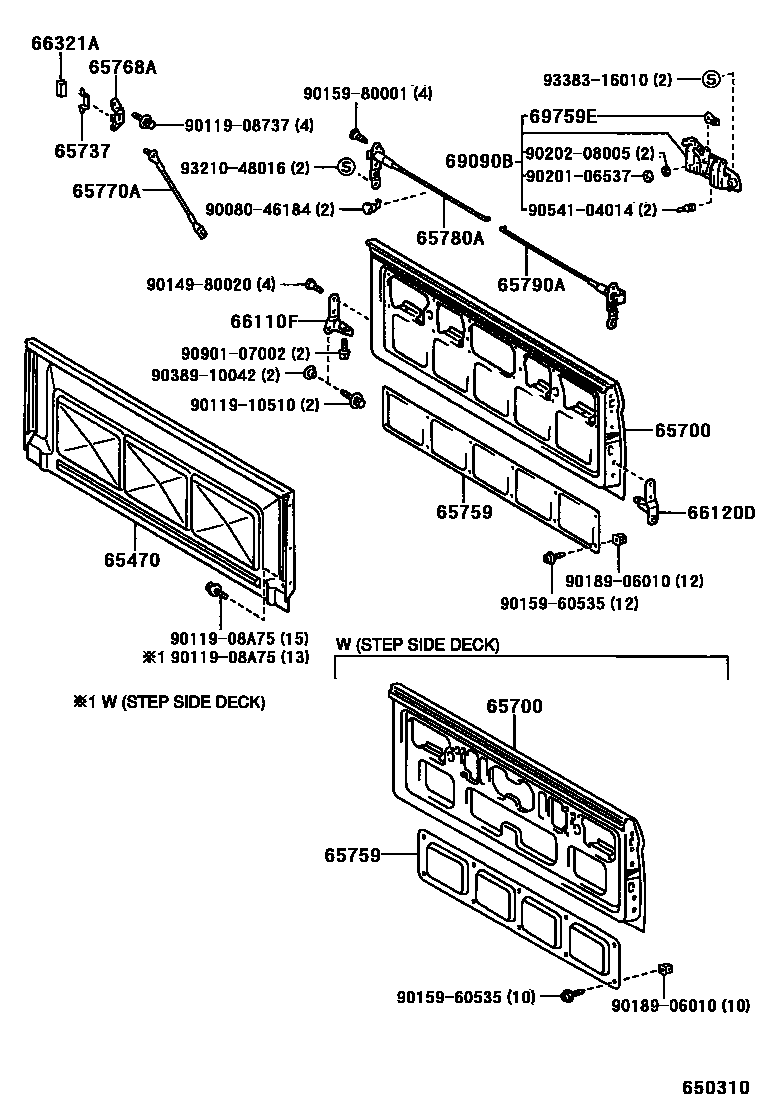

REAR BODY GUARD FRAME & TAIL GATE

65470BOARD ASSY, HEADER

main65405-04010iRZN161,171,VZN160,170199501-200409

main65405-04020iVZN170..DCB200009-200409

main65405-04030iRZN161,171,VZN170..RCB,XTR200009-200309

W(STEP SIDE DECK)

main65405-YY010iRZN161,171,VZN170199912-200009

W(STEP SIDE DECK)

sub65405-04030

65700GATE ASSY, REAR BODY TAIL

main65700-04030iRZN161,171,VZN160,170199501-200409

main65700-04040iRZN161,171,VZN170..RCB,XTR200009-200309

W(STEP SIDE DECK)

main65700-YY010iRZN161,171,VZN170199912-200009

W(STEP SIDE DECK)

sub65700-04040

65737STOP, TAIL GATE

main65737-35030iRZN161,171,VZN170199501-200409

65759COVER, TAIL GATE SERVICE HOLE

main65759-04020iRZN161,171,VZN160,170199501-199809

main65759-04020iRZN161,171,VZN170199809-200409

(L)

main65759-04050iRZN161,171,VZN170..RCB,XTR200009-200309

W(STEP SIDE DECK)

main65759-89105iRZN161,171,VZN170199809-200409

(J)

main65759-YY010iRZN161,171,VZN170199912-200009

W(STEP SIDE DECK)

sub65759-04050

65768ASTRIKER, TAIL GATE LOCK

main65768-35020iRZN161,171,VZN160,170199501-200409

65770ASTAY ASSY, TAIL GATE

main65770-04030iRZN161,171,VZN160,170199501-200409

65780ALOCK ASSY, TAIL GATE, RH

main65780-04010iRZN161,171,VZN170..RCB,XTR200009-200309

W(STEP SIDE DECK)

main65780-35020iRZN161,171,VZN170199501-200409

main65780-YY010iRZN161,171,VZN170199912-200009

W(STEP SIDE DECK)

65790ALOCK ASSY, TAIL GATE, LH

main65790-04010iRZN161,171,VZN170..RCB,XTR200009-200309

W(STEP SIDE DECK)

main65790-35030iRZN161,171,VZN170199501-200409

main65790-YY010iRZN161,171,VZN170199912-200009

W(STEP SIDE DECK)

66110FHINGE ASSY, TAIL GATE, RH

main66110-89108iRZN161,171,VZN170199501-200409

66120DHINGE, SIDE GATE MALE

main66120-89102iRZN161,171,VZN160,170199501-200409

66321ABUMPER, GATE RUBBER

main66321-04020iRZN161,171,VZN160,170199501-200409

69090BHANDLE ASSY, TAIL GATE

main69090-35010iRZN161,171,VZN160,170199501-200409

69759ESNAP, TAIL GATE LOCK LINK

main69759-20110iRZN161,171,VZN160,170199501-200009

9008046184

main90080-46184

9011908737

main90119-08737

9011908A75

main90119-08A75

9011910510

main90119-10510

9014980020

main90149-80020

9015960535

main90159-60535

9015980001

main90159-80001

9018906010

main90189-06010

9020106537

main90201-06537

9020208005

main90202-08005

9038910042

main90389-10042

9054104014

main90541-04014

9090107002

main90901-07002

9321048016

main93210-48016

9338316010

main93383-16010

28 parts on this diagram · 1 diagram in section
