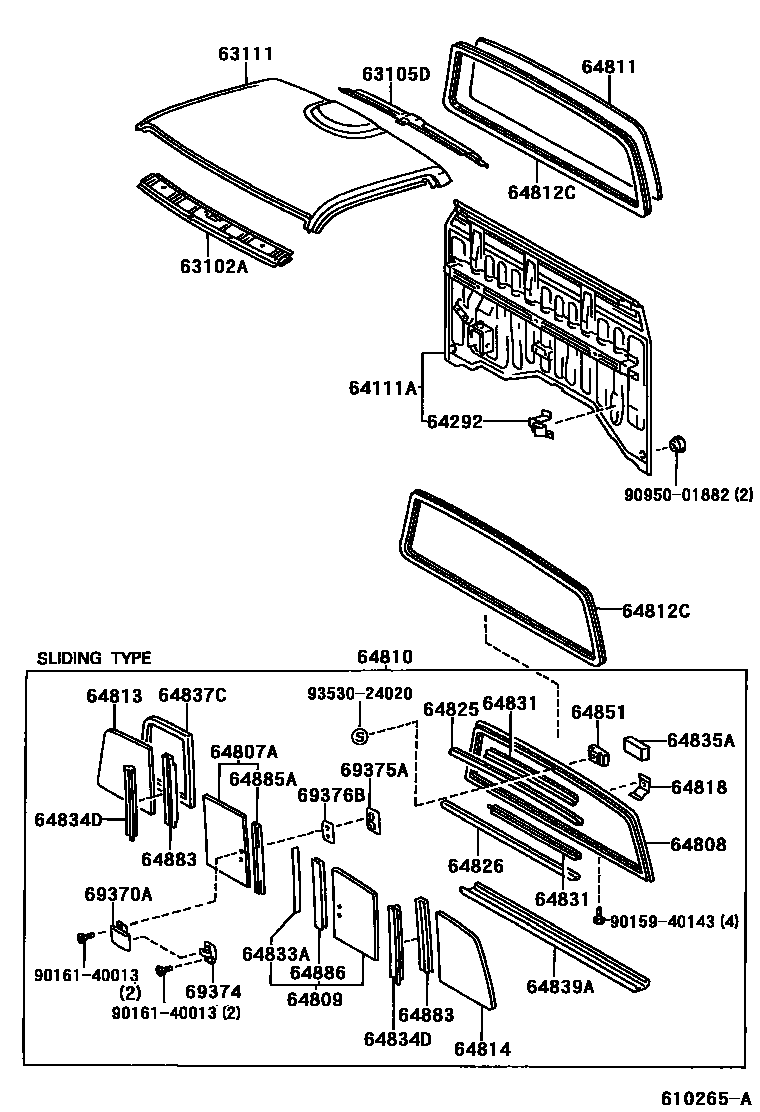

ROOF PANEL & BACK PANEL
63102APANEL SUB-ASSY, WINDSHIELD HEADER
W(ROOF RACK)
63105DFRAME SUB-ASSY, BACK WINDOW, UPPER
63111PANEL, ROOF
W(MOON ROOF)
W(MOON ROOF)
W(ROOF RACK)
64292CLAMP, JACK HANDLE
64807AGLASS SUB-ASSY, BACK WINDOW SLIDE, RH
*TEM,T=3.3,BLUE
*TEM,T=3.3,GRAY
*TEM,T=3.3,GRAY
64808CHANNEL SUB-ASSY, BACK WINDOW SLIDE GLASS
64809GLASS SUB-ASSY, BACK WINDOW SLIDE, LH
*TEM,T=3.3,BLUE
*TEM,T=3.3,GRAY
*TEM,T=3.3,GRAY
64810WINDOW ASSY, BACK
*TEM,T=3.3,BLUE
*TEM,T=3.3,GRAY
*TEM,T=3.4,GREEN
*TEM,T=3.4,GRAY
*TT,T=3.4,GREEN
64811GLASS, BACK WINDOW
*TT,T=3.5,GREEN
*TEM,T=3.5,BLUE
64812CWEATHERSTRIP, BACK WINDOW GLASS
W(SLIDING TYPE BACK WINDOW)
64813GLASS, BACK WINDOW CORNER, RH
*TEM,T=3.4,BLUE
*TEM,T=3.4,GRAY
*TEM,T=3.4,GRAY
64814GLASS, BACK WINDOW CORNER, LH
*TEM,T=3.4,BLUE
*TEM,T=3.4,GRAY
*TEM,T=3.4,GRAY
64818SPACER, BACK WINDOW GLASS
64825RUN, BACK WINDOW CHANNEL, UPPER
64826RUN, BACK WINDOW CHANNEL, LOWER
64831WEATHERSTRIP, BACK WINDOW GLASS
64833AWEATHERSTRIP, BACK WINDOW CENTER CHANNEL
64834DWEATHERSTRIP, BACK WINDOW SLIDE GLASS
64835AWEATHERSTRIP, BACK WINDOW GLASS, CENTER
64837CWEATHERSTRIP, BACK WINDOW CORNER GLASS
64839APACKING, BACK WINDOW
64851STOP, BACK WINDOW SLIDE GLASS
64883FRAME, BACK WINDOW
64885ACHANNEL, BACK WINDOW GLASS, RH
64886CHANNEL, BACK WINDOW GLASS, LH
69370ALOCK ASSY, BACK WINDOW
69374CATCH, BACK WINDOW LOCK
69375ARETAINER, BACK WINDOW LOCK
69376BPACKING, BACK WINDOW LOCK
9015940143
main90159-40143
9016140013
main90161-40013
9095001882
main90950-01882
9353024020
main93530-24020
34 parts on this diagram · 4 diagrams in section
