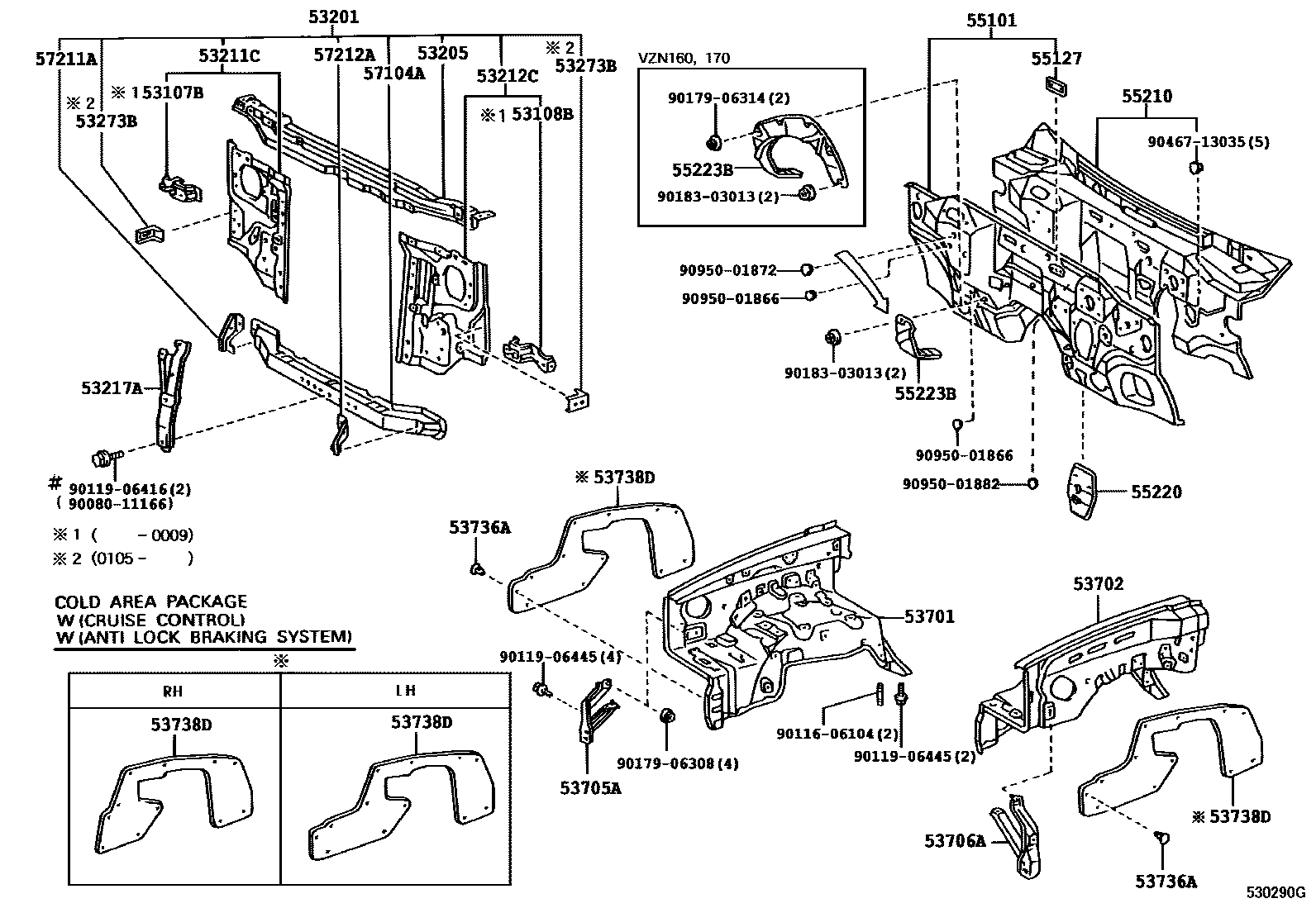

FRONT FENDER APRON & DASH PANEL
53107BBRACKET SUB-ASSY, RADIATOR GRILLE, LOWER RH
(L)
(J)
53108BBRACKET SUB-ASSY, RADIATOR GRILLE, LOWER LH
(L)
(J)
53201SUPPORT SUB-ASSY, RADIATOR
53217ABRACE, HOOD LOCK SUPPORT
53273BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, RH
53701APRON SUB-ASSY, FRONT FENDER, RH
W(*66)
CALIFORNIA SPEC OR COLD SPEC OR W(*CRC)
sub53701-04141
W(ABS & CRUISE CONTROL)
W(CRUISE CONTROL)
sub53701-04230
53705ABRACE SUB-ASSY, FENDER APRON, RH
53706ABRACE SUB-ASSY, FENDER APRON, LH
53736ACLIP(FOR FRONT FENDER APRON SEAL)
(L)
CALIFORNIA SPEC
(J)
53738DSEAL, FRONT FENDER APRON TO FRAME, FRONT
LH
RH(REAR)
RH(FRONT)
LH
CALIFORNIA SPEC,LH
RH(REAR)
CALIFORNIA SPEC,RH
RH(FRONT)
55101PANEL SUB-ASSY, DASH
W(*ADD)
W(*ADD)
W(*ADD)
W(*ADD)
W(SPEEDOMETER CABLE)
W(SPEED METER CABLE)
W(*ADD)
W(VSC)
W(VSC)
55127REINFORCEMENT, PARKING BRAKE
55210INSULATOR ASSY, DASH PANEL
55220INSULATOR ASSY, DASH PANEL, NO.2
55223BINSULATOR, DASH PANEL HEAT, NO.1
(L)
(L)
(J)
(J)
57104AMEMBER SUB-ASSY, FRONT CROSS
57211ABRACKET, BODY MOUNTING, NO.1 RH
57212ABRACKET, BODY MOUNTING, NO.1 LH
9008011166
main90080-11166
9011606104
main90116-06104
9011906416
main90119-06416
9011906445
main90119-06445
9017906308
main90179-06308
9017906314
main90179-06314
9018303013
main90183-03013
9046713035
main90467-13035
9095001866
main90950-01866
9095001872
main90950-01872
9095001882
main90950-01882
33 parts on this diagram · 1 diagram in section
