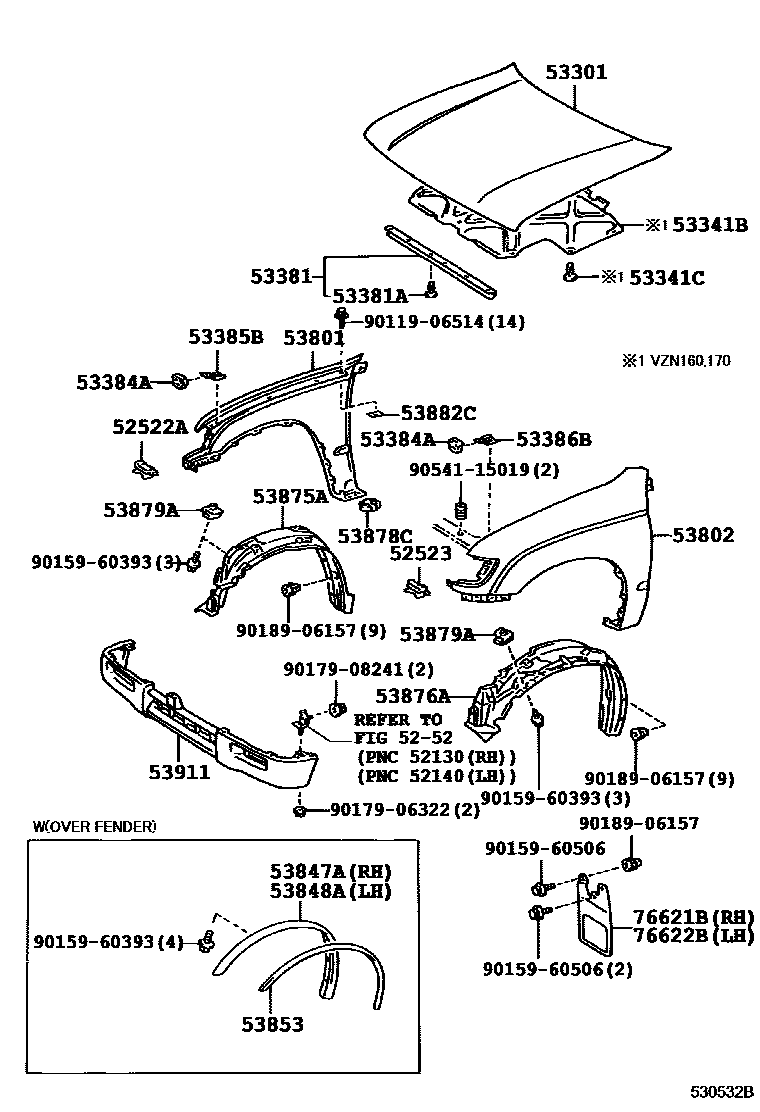

HOOD & FRONT FENDER

0001 1 0002 1

5252

52522ARETAINER, FRONT BUMPER FILLER, NO.2

main52522-35020iRZN161,171,VZN160,170199501-200009

main52522-35050iRZN161,171,VZN170200009

52523RETAINER, FRONT BUMPER FILLER, NO.3

main52523-35020iRZN161,171,VZN160,170199501-200009

main52523-35050iRZN161,171,VZN170200009

53301HOOD SUB-ASSY

main53301-04030iRZN161,171,VZN160,170199501-200009

main53301-04050iRZN161,171,VZN170200009-200107

sub53301-04051

main53301-04051iRZN161,171,VZN170200107

53341BINSULATOR, HOOD

main53341-35010iVZN160,170199501-200009

53341CCLIP(FOR HOOD INSULATOR)

main90467-09004-01iVZN160,170199501-199906

BLACK,TRIM1#,4#

sub90467-09004

main90467-09050iVZN170199906-200009

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-AD010iRZN161,171,VZN160,170199501-200409

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90080-46010iRZN161,171,VZN170199501-200009

53384ABUMPER, FENDER TO HOOD

main53384-AD010iRZN161,171,VZN160,170199501-200009

53385BBRACKET, FENDER TO HOOD BUMPER, RH

main53386-20020iRZN161,171,VZN160,170199501-200409

53386BBRACKET, FENDER TO HOOD BUMPER, LH

main53385-20020iRZN161,171,VZN160,170199501-200409

53801FENDER SUB-ASSY, FRONT RH

main53801-04050iRZN161,171,VZN170..RCB,XTR200009

main53801-04060iRZN161,171,VZN170200009

W(OVER FENDER)

main53811-04070iRZN161,171,VZN160,170199501-200009

53802FENDER SUB-ASSY, FRONT LH

main53802-04070iRZN161,171,VZN170..RCB,XTR200009

main53802-04080iRZN161,171,VZN170200009

W(OVER FENDER)

main53812-04070iRZN161,171,VZN160,170199501-200009

53847AEXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, RH

main75871-35900iRZN161,171,VZN170..RCB,XTR199706-200309

53848AEXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, LH

main75872-35900iRZN161,171,VZN170..RCB,XTR199706-200309

53853PAD, FRONT WHEEL OPENING EXTENSION, NO.3

main75696-35010iVZN170..SR5199706-200309

sub75696-35020

53875ALINER, FRONT FENDER, RH

main53875-04040iRZN161,171,VZN160,170199501-199910

sub53875-04041

main53875-04041iRZN161,171,VZN170199910-200009

main53875-04050iRZN161,171,VZN170200009

53876ALINER, FRONT FENDER, LH

main53876-04040iRZN161,171,VZN160,170199501-199910

sub53876-04041

main53876-04041iRZN161,171,VZN170199910-200009

main53876-04050iRZN161,171,VZN170200009

53878CSPACER, FRONT FENDER

main53878-34010iRZN161,171,VZN160,170199501-200009

53879ARETAINER, FRONT FENDER LINER

main53879-01020iRZN161,171,VZN170199501-200009

main53879-01020iRZN161,171,VZN170199912-200009

W(STEP SIDE DECK)

53882CSEAL, FRONT FENDER MAIN

main53882-16030iRZN161,171,VZN160,170199501-200409

main53882-16030iRZN161,171,VZN170199912-200002

W(STEP SIDE DECK)

53911PANEL, FRONT VALANCE

main53901-AD030iRZN161,171,VZN170200009-200409

main53911-04050iRZN161,171,VZN160,170199501-199511

sub53911-04051

sub52145-35020

sub52146-35020

sub90179-06322

main53911-04051iRZN161,171,VZN160,170199511-199706

main53911-04090iRZN161,171,VZN170199706-200009

76621BMUDGUARD, FRONT BODY, RH

main76621-04030iRZN161,171,VZN160,170199501-200002

sub76621-04040

main76621-04040iRZN161,171,VZN170200002-200009

76622BMUDGUARD, FRONT BODY, LH

main76622-04030iRZN161,171,VZN160,170199501-200002

sub76622-04040

main76622-04040iRZN161,171,VZN170200002-200009

9011906514

main90119-06514

9015960393

main90159-60393

9015960506

main90159-60506

9017906322

main90179-06322

9017908241

main90179-08241

9018906157

main90189-06157

9054115019

main90541-15019

31 parts on this diagram · 2 diagrams in section
