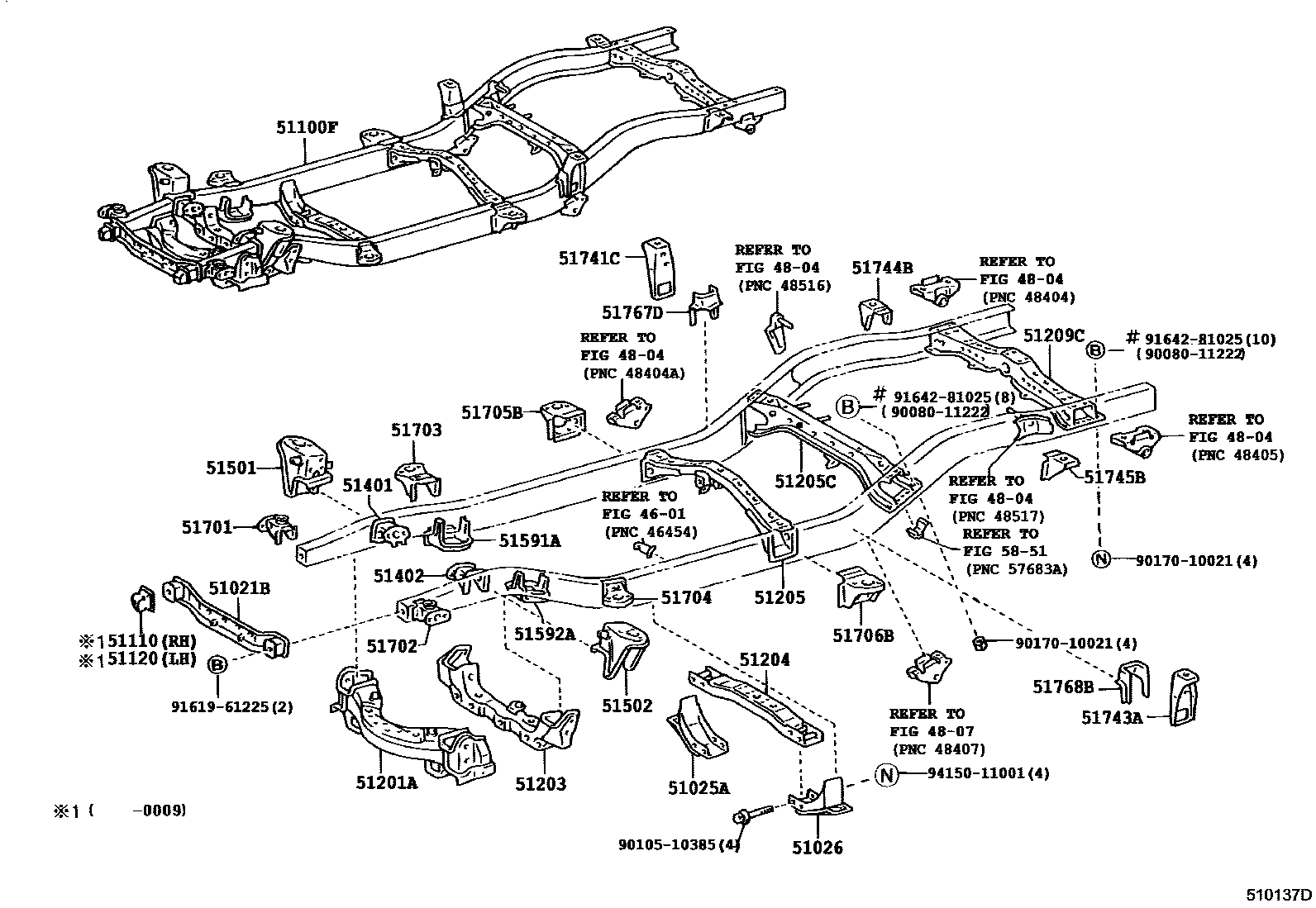

FRAME
4601
4804
4807
51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH
51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH
51100FFRAME SUB-ASSY
sub51001-04171
sub51001-04172
sub51001-04181
sub51001-04182
sub51001-04201
sub51001-04202
sub51001-04211
sub51001-04212
sub51001-04221
sub51001-04222
51110EXTENSION ASSY, SIDE RAIL, RH
51120EXTENSION ASSY, SIDE RAIL, LH
51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
51205CROSSMEMBER SUB-ASSY, FRAME, NO.4
51205CCROSSMEMBER SUB-ASSY, FRAME, NO.5
51209CCROSSMEMBER SUB-ASSY, FRAME, REAR
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51591ASUPPORT, STABILIZER, RH
51592ASUPPORT, STABILIZER, LH
51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51705BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH
51706BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH
51741CBRACKET, REAR BODY MOUNTING, NO.2 RH
51743ABRACKET, REAR BODY MOUNTING, NO.2 LH
51744BBRACKET, REAR BODY MOUNTING, NO.3 RH
51745BBRACKET, REAR BODY MOUNTING, NO.3 LH
51767DREINFORCEMENT, BODY SUPPORT BRACKET, RH
51768BREINFORCEMENT, BODY SUPPORT BRACKET, LH
5851
9008011222
main90080-11222
9010510385
main90105-10385
9017010021
main90170-10021
9161961225
main91619-61225
9164281025
main91642-81025
9415011001
main94150-11001
40 parts on this diagram · 2 diagrams in section
