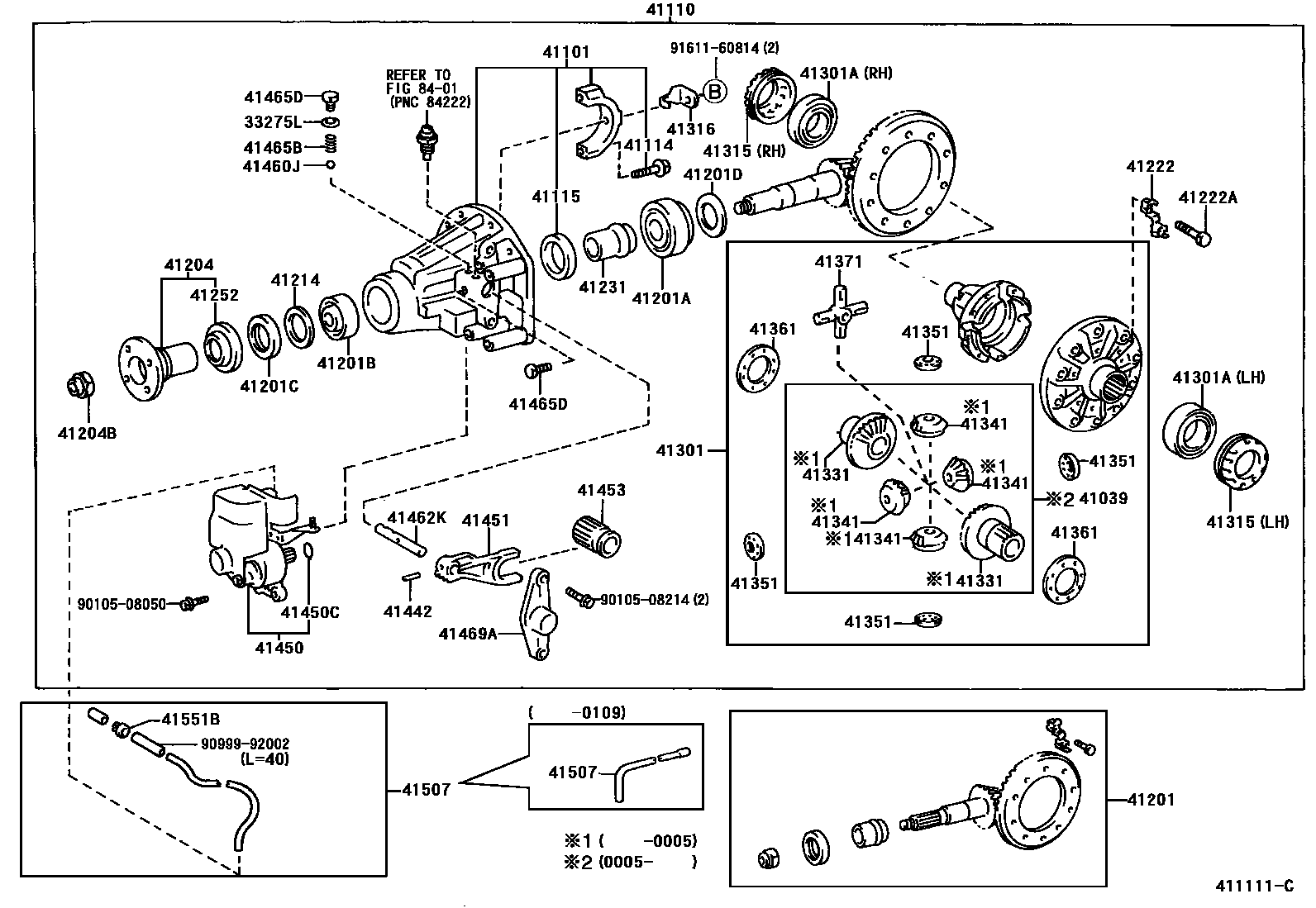

REAR AXLE HOUSING & DIFFERENTIAL
33275LSEAT, REAR DIFFERENTIAL LOCK SHIFT DETENT BALL SPRING
41039GEAR KIT, DIFFERENTIAL, REAR
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=43:10=4.300
*FGR=43:12=3.583
*FGR=43:11=3.909
*FGR=41:10=4.100,AXLE CODE=B03A
sub41110-35751
*FGR=41:10=4.100
*FGR=41:9=4.555,AXLE CODE=B04A
*FGR=43:12=3.583,W(REAR DIFFERENTIAL LOCK)
*FGR=43:11=3.909,W(REAR DIFFERENTIAL LOCK)
*FGR=43:10=4.300,W(REAR DIFFERENTIAL LOCK)
41114BOLT, REAR DIFFERENTIAL BEARING CAP
W(REAR DIFFERENTIAL LOCK)
41115RING, DIFFERENTIAL OIL STORAGE
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=41:9=4.556,AXLE CODE=B04A
*FGR=41:10=4.100,AXLE CODE=B03A
sub41201-80161
*FGR=43:10=4.300
*FGR=43:11=3.909
41201ABEARING (FOR REAR DRIVE PINION REAR)
W(REAR DIFFERENTIAL LOCK)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
W(REAR DIFFERENTIAL LOCK)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
W(REAR DIFFERENTIAL LOCK)
W(REAR DIFFERENTIAL LOCK)
sub90311-44007
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
OD=47,T=1.70,W(REAR DIFFERENTIAL LOCK)
OD=47,T=1.73,W(REAR DIFFERENTIAL LOCK)
OD=47,T=1.76,W(REAR DIFFERENTIAL LOCK)
OD=47,T=1.79,W(REAR DIFFERENTIAL LOCK)
OD=47,T=1.82,W(REAR DIFFERENTIAL LOCK)
OD=47,T=1.85,W(REAR DIFFERENTIAL LOCK)
OD=47,T=1.88,W(REAR DIFFERENTIAL LOCK)
OD=47,T=1.91,W(REAR DIFFERENTIAL LOCK)
OD=47,T=1.94,W(REAR DIFFERENTIAL LOCK)
OD=47,T=1.97,W(REAR DIFFERENTIAL LOCK)
OD=47,T=2.00,W(REAR DIFFERENTIAL LOCK)
OD=47,T=2.03,W(REAR DIFFERENTIAL LOCK)
OD=47,T=2.06,W(REAR DIFFERENTIAL LOCK)
OD=47,T=2.09,W(REAR DIFFERENTIAL LOCK)
OD=47,T=2.12,W(REAR DIFFERENTIAL LOCK)
OD=47,T=2.15,W(REAR DIFFERENTIAL LOCK)
OD=47,T=2.18,W(REAR DIFFERENTIAL LOCK)
OD=47,T=2.21,W(REAR DIFFERENTIAL LOCK)
OD=47,T=2.24,MARK 01,W(REAR DIFFERENTIAL LOCK)
OD=47,T=2.27,MARK 02,W(REAR DIFFERENTIAL LOCK)
OD=47,T=2.30,MARK 03,W(REAR DIFFERENTIAL LOCK)
OD=47,T=2.33,MARK 04,W(REAR DIFFERENTIAL LOCK)
T=1.88,MARK 88
T=1.90,MARK 90
T=1.92,MARK 92
T=1.94,MARK 94
T=1.96,MARK 96
T=1.98,MARK 98
T=2.00,MARK 00
T=2.02,MARK 02
T=2.04,MARK 04
T=2.06,MARK 06
T=2.08,MARK 08
T=2.10,MARK 10
T=2.12,MARK 12
T=2.14,MARK 14
T=2.16,MARK 16
T=2.18,MARK 18
T=2.20,MARK 20
T=2.22,MARK 22
T=2.24,MARK 24
T=2.26,MARK 26
T=2.28,MARK 28
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
W(REAR DIFFERENTIAL LOCK)
W(REAR DIFFERENTIAL LOCK)
41204BNUT (FOR REAR DRIVE PINION)
OD=39.5,W(REAR DIFFERENTIAL LOCK)
OD=37,W(REAR DIFFERENTIAL LOCK)
OD=34.6
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
W(REAR DIFFERENTIAL LOCK)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
W(REAR DIFFERENTIAL LOCK)
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
W(REAR DIFFERENTIAL LOCK)
W(REAR DIFFERENTIAL LOCK)
W(REAR DIFFERENTIAL LOCK)
41301CASE SUB-ASSY, REAR DIFFERENTIAL
sub41301-60061
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
W(REAR DIFFERENTIAL LOCK),RH
W(REAR DIFFERENTIAL LOCK),LH
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
RH
LH
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41331GEAR, REAR DIFFERENTIAL SIDE
sub41331-34011
sub41331-34012
41351WASHER, REAR DIFFERENTIAL PINION THRUST
W(REAR DIFFERENTIAL LOCK)
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
T=0.9,W(REAR DIFFERENTIAL LOCK),RH,ID=46
T=1.0,W(REAR DIFFERENTIAL LOCK),RH,ID=46
T=1.1,W(REAR DIFFERENTIAL LOCK),RH,ID=46
T=1.2,W(REAR DIFFERENTIAL LOCK),RH,ID=46
T=1.3,W(REAR DIFFERENTIAL LOCK),RH,ID=46
T=0.90,RH & LH,ID=54
T=0.90,W(REAR DIFFERENTIAL LOCK)
T=1.00,W(REAR DIFFERENTIAL LOCK)
T=1.00,RH & LH,ID=54
T=1.10,W(REAR DIFFERENTIAL LOCK)
T=1.10,RH & LH,ID=54
T=1.20,RH & LH,ID=54
T=1.20,W(REAR DIFFERENTIAL LOCK)
T=1.30,RH & LH,ID=54
T=1.30,W(REAR DIFFERENTIAL LOCK)
41371SPIDER, REAR DIFFERENTIAL
41442BOLT OR PIN, SHIFT FORK LOCK
41450ACTUATOR, DIFFERENTIAL LOCK SHIFT
41450CRING, O (FOR REAR DIFFERENTIAL LOCK SHIFT ACTUATOR)
41451FORK, REAR DIFFERENTIAL LOCK SHIFT
41453SLEEVE, REAR DIFFERENTIAL LOCK
41460JBALL (FOR REAR DIFFERENTIAL LOCK CYLINDER)
41462KSHAFT, REAR DIFFERENTIAL LOCK SHIFT FORK
41465BSPRING, COMPRESSION (FOR REAR DIFFERENTIAL LOCK RETAINER)
41465DPLUG (FOR REAR DIFFERENTIAL LOCK CYLINDER)
41469ARETAINER, REAR DIFFERENTIAL LOCK SHAFT
41507TUBE, REAR DIFFERENTIAL LOCK ACTUATOR BREATHER
41551BGROMMET, REAR DIFFERENTIAL BREATHER
8401
9010508050
main90105-08050
9010508214
main90105-08214
9099992002
main90999-92002
9161160814
main91611-60814
44 parts on this diagram · 3 diagrams in section
