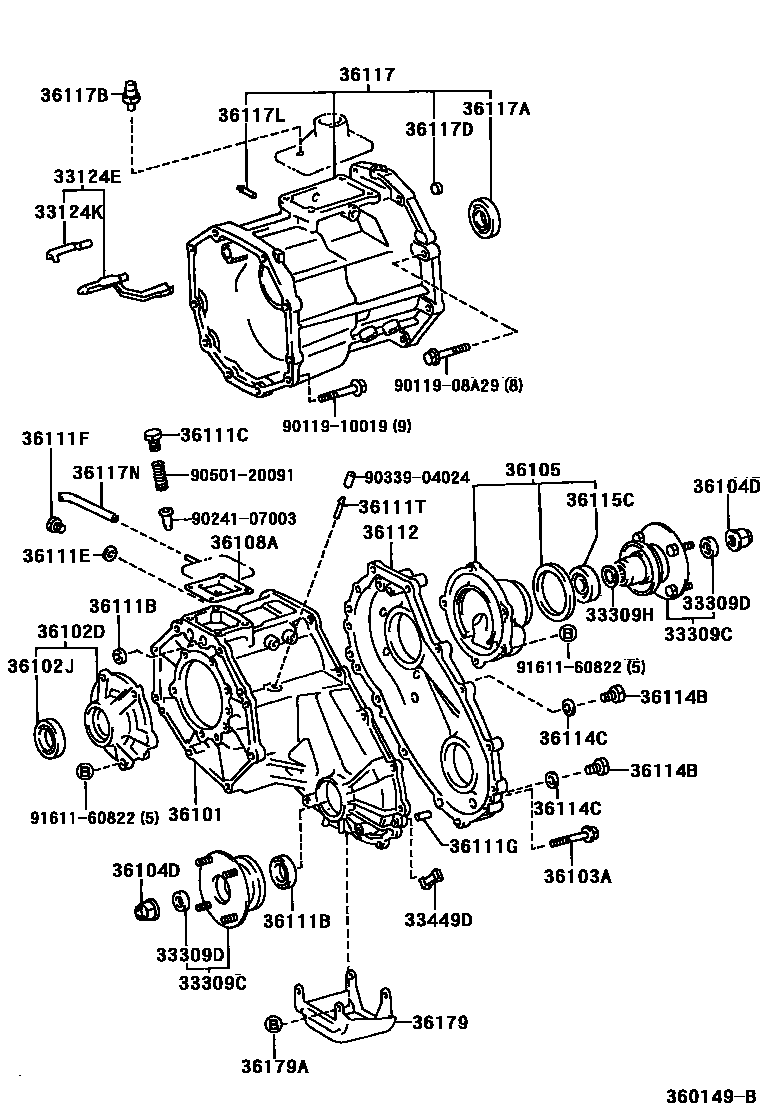

TRANSFER CASE & EXTENSION HOUSING
33124EPIPE, OIL RECEIVER(FOR TRANSFER)
33124KCLAMP OIL RECEIVER(FOR TRANSFER)
33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
REAR
FRONT
33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
33309HWASHER, TRANSFER OUTPUT SHAFT
N=30,OD=38
33449DMAGNET (FOR TRANSFER CASE)
36101CASE SUB-ASSY, TRANSFER
36102COVER SUB-ASSY, TRANSFER CASE
36102DRETAINER SUB-ASSY, TRANSFER RH BEARING
36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)
36103ABOLT (FOR TRANSFER CASE)
*8-1.25PX55-30
36104DNUT (FOR TRANSFER OUTPUT SHAFT)
36105HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT
36108ADEFLECTOR SUB-ASSY, BREATHER OIL
W(2-4 SELECTOR)
36111BSEAL, OIL (FOR TRANSFER CASE)
W(2-4 SELECTOR),FORK SHAFT SIDE
FORK SHAFT SIDE
36111CPLUG (FOR TRANSFER CASE)
36111EGASKET (FOR TRANSFER CASE)
OFF ROAD PACKAGE
OFF ROAD PACKAGE & W(*ADD)
W(*66 OR *DL)
36111FPLUG (FOR TRANSFER CASE)
OFF ROAD PACKAGE & W(*ADD)
OFF ROAD PACKAGE
W(*66 OR *DL)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=14,OD=10
36111TTUBE (FOR TRANSFER CASE)
sub90406-T0007
36112CASE, TRANSFER, REAR
W(2-4 SELECTOR)
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
36117ADAPTER, TRANSFER
36117ASEAL, OIL(FOR TRANSFER ADAPTER)
36117BPLUG, BREATHER(FOR TRANSFER ADAPTER)
36117DPLUG(FOR TRANSFER ADAPTER)
36117LTUBE(FOR TRANSFER ADAPTER)
sub90406-T0007
36117NHOSE(FOR TRANSFER ADAPTER)
36179PROTECTOR, TRANSFER CASE LOWER
36179ABOLT (FOR TRANSFER CASE LOWER PROTECTOR)
(L)
(J)
9011908A29
9011910019
9024107003
9033904024
9050120091
9161160822
38 parts on this diagram · 6 diagrams in section
