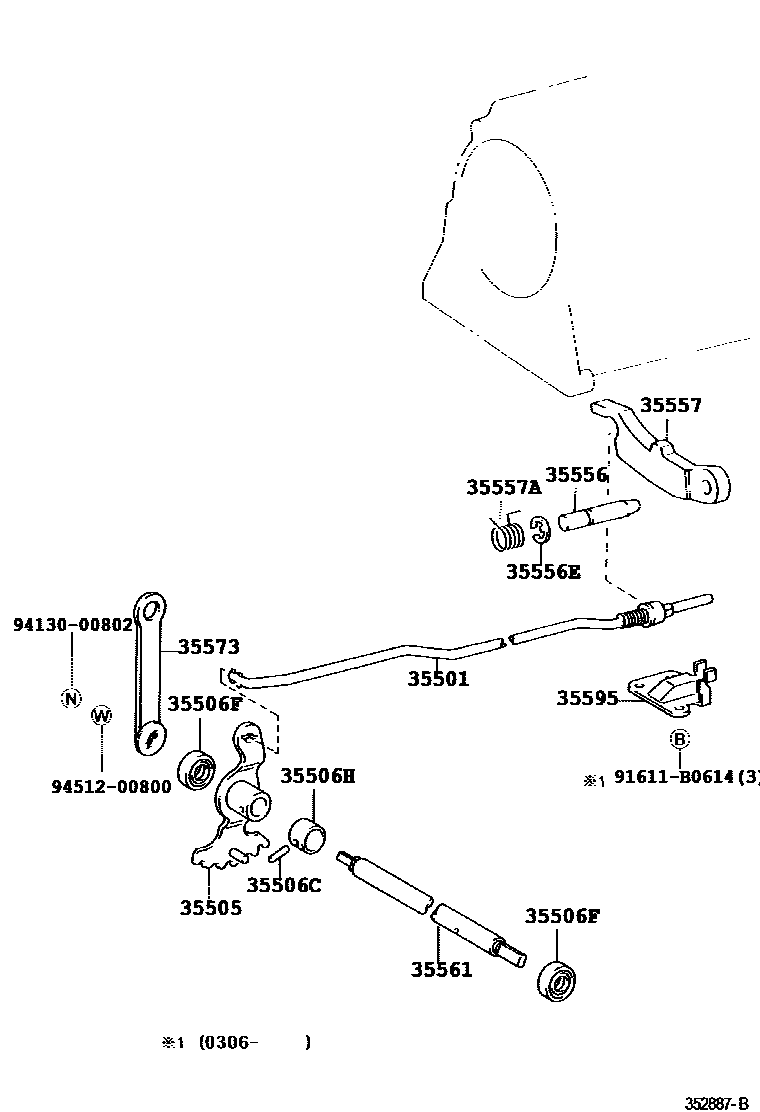

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A340F 0002 1A340F 0003 1A340F

35501ROD SUB-ASSY, PARKING LOCK

main35501-30010iRZN161,171,VZN170..4FC199501-199706

main35501-60010iRZN161,171,VZN170..4FC199706-200409

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-50010iRZN161,171,VZN170..4FC199501-200409

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iRZN161,171,VZN170..4FC199501-200409

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iRZN161,171,VZN170..4FC199501-200409

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20006iRZN161,171,VZN170..4FC199501-200302

main90560-20025iRZN161,171,VZN170..4FC200302-200409

35556SHAFT, PARKING LOCK PAWL

main35556-30020iRZN161,171,VZN170..4FC199501-200409

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iRZN161,171,VZN170..4FC199501-200409

35557PAWL, PARKING LOCK

main35557-30020iRZN161,171,VZN170..4FC199501-199706

main35557-60020iRZN161,171,VZN170..4FC199706-200409

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iRZN161,171,VZN170..4FC199501-200409

35561SHAFT, MANUAL VALVE LEVER

main35561-35010iRZN161,171,VZN170..4FC199501-200409

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-35030iRZN161,171,VZN170..4FC199501-200409

35595BRACKET, PARKING LOCK PAWL

main35595-30010iRZN161,171,VZN170..4FC199501-199706

main35595-60010iRZN161,171,VZN170..4FC199706-200409

91611B0614

main91611-B0614

9413000802

main94130-00802

9451200800

main94512-00800

15 parts on this diagram · 3 diagrams in section
