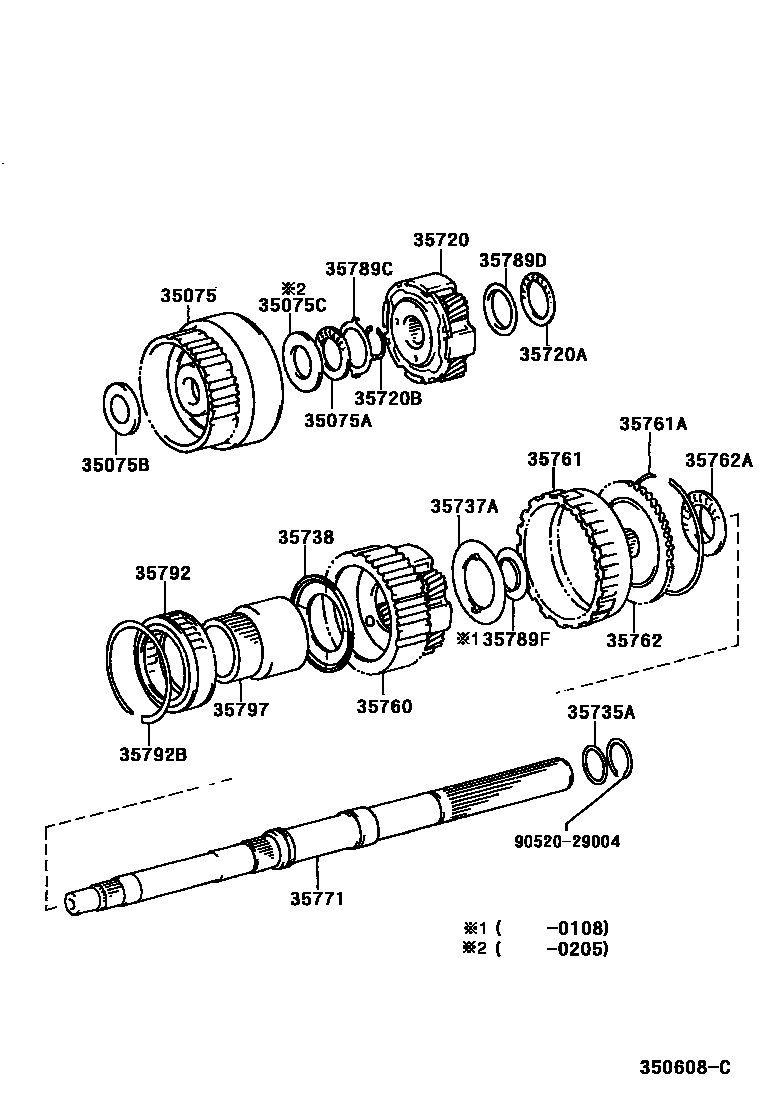

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

35075GEAR SUB-ASSY, FRONT PLANETARY RING

main35075-30011iRZN161,171,VZN170..4FC199501-199508

sub35075-50010

main35075-50010iRZN161,171,VZN170..4FC199508-200409

35075ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY RING)

main90374-32004iRZN161,171,VZN170..4FC199501-200205

sub90374-35004

main90374-35004iRZN161,171,VZN170..4FC200205-200409

35075BRACE, THRUST BEARING (FOR FRONT PLANETARY RING GEAR FRONT)

main35789-30120iRZN161,171,VZN170..4FC199501-200409

35075CRACE, THRUST BEARING (FOR FRONT PLANETARY RING GEAR RR)

main35789-30130iRZN161,171,VZN170..4FC199501-200205

35720GEAR ASSY, FRONT PLANETARY

main35720-30080iRZN161,171,VZN170..4FC199501-200409

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90374-35001iRZN161,171,VZN170..4FC199501-200409

35720BRING, SHAFT SNAP (FOR FRONT PLANETARY GEAR)

main90520-24026iRZN161,171,VZN170..4FC199501-200409

35735ARING, PLANETARY OUTPUT SHAFT OIL SEAL

main35735-30020iRZN161,171,VZN170..4FC199501-200409

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

main35737-30030iRZN161,171,VZN170..4FC199501-200409

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35739-30030iRZN161,171,VZN170..4FC199501-200409

35760GEAR ASSY, REAR PLANETARY

main35705-30010iRZN161,171,VZN170..4FC199501-200409

35761GEAR, REAR PLANETARY RING

main35761-30020iRZN161,171,VZN170..4FC199501-200409

35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)

main90521-99024iRZN161,171,VZN170..4FC199501-200409

35762FLANGE, REAR PLANETARY RING GEAR

main35762-30040iRZN161,171,VZN170..4FC199501-200409

35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)

main90374-38003iRZN161,171,VZN170..4FC199906-200409

main90374-39001iRZN161,171,VZN170..4FC199501-199906

sub90374-38003

35771SHAFT, OUTPUT

main35073-35030iRZN161,171,VZN170..4FC199501-200409

35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)

main35789-30080iRZN161,171,VZN170..4FC199501-200409

35789DRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)

main35789-30100iRZN161,171,VZN170..4FC199501-200409

35789FRACE, THRUST BEARING (FOR REAR PLANETARY FLANGE)

main35789-30160iRZN161,171,VZN170..4FC199501-200108

35792CLUTCH, 1 WAY, NO.2

main35792-14020iRZN161,171,VZN170..4FC199501-200409

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-87001iRZN161,171,VZN170..4FC199501-200409

35797RACE, 1 WAY CLUTCH INNER

main35797-50010iRZN161,171,VZN170..4FC199501-200409

9052029004

main90520-29004

23 parts on this diagram · 1 diagram in section
