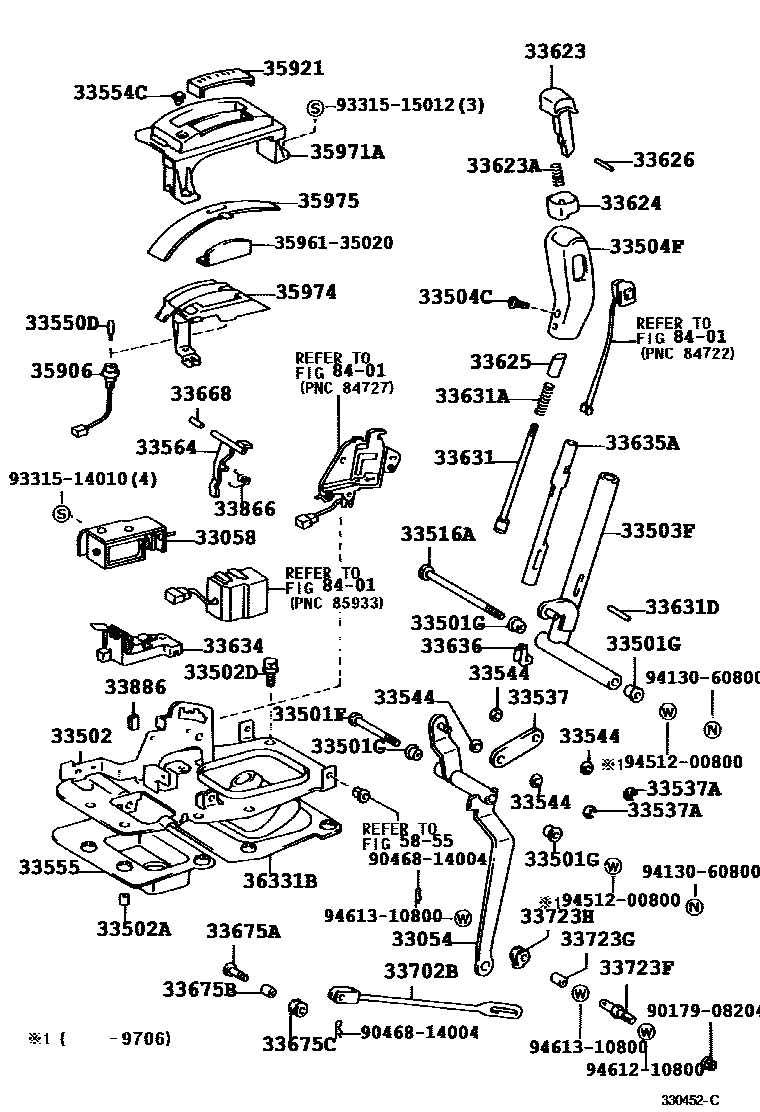

SHIFT LEVER & RETAINER
33054LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT)
33501FSHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)
33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33502ACOLLAR (FOR FLOOR SHIFT SETTING)
OD=8.8
33502DBOLT, HEXAGON (FOR SHIFT LEVER PLATE)
(L)
(J)
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504CSCREW (FOR SHIFT LEVER KNOB SETTING)
33504FKNOB SUB-ASSY, SHIFT LEVER
33516ASHAFT, CONTROL, NO.3
33537PLATE, CONTROL LEVER
33537ARING, E (FOR CONTROL LEVER PLATE)
33544INSERT, SHIFT LEVER, NO.1
33550DBULB, POSITION INDICATOR LAMP
12V 1.2W W/O SOCKET
33554CAP, SHIFT LEVER
33554CCOVER, SHIFT LOCK RELEASE BUTTON
33555BOOT, SHIFT LEVER
33564LINK, SHIFT LOCK RELEASE, NO.1
33623BUTTON, SHIFT LEVER KNOB
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33624HOLDER, KNOB COVER
33625SLEEVE, SHIFT LEVER KNOB
33626STOPPER, SHIFT LEVER BUTTON
33631ROD, DETENT
33631ASPRING, COMPRESSION (FOR DETENT ROD)
33631DPIN, GROOVED (FOR DETENT ROD)
33634PROTECTOR, WIRE
33635AGUIDE, WIRE, NO.1 (FOR SHIFT LEVER)
33636GUIDE, WIRE, NO.2 (FOR SHIFT LEVER)
33668PIN, CONTROL LEVER LOCK
33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33675BBUSH (FOR TRANSMISSION CONTROL ROD)
33675CGROMMET (FOR TRANSMISSION CONTROL ROD)
33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33723HGROMMET (FOR FLOOR SHIFT CONTROL SHAFT)
33866SPRING, SHIFT LOCK RELEASE
33886STOPPER, SHIFT LEVER
35971AHOUSING, POSITION INDICATOR, UPPER
35974HOUSING, POSITION INDICATOR, LOWER
36331BBOOT, TRANSFER SHIFT LEVER
5855
8401
3596135020HOUSING, POSITION INDICATOR LAMP
main35961-35020
9017908204
main90179-08204
9046814004
main90468-14004
9331514010
main93315-14010
9331515012
main93315-15012
9413060800
main94130-60800
9451200800
main94512-00800
9461210800
main94612-10800
9461310800
main94613-10800
57 parts on this diagram · 2 diagrams in section
