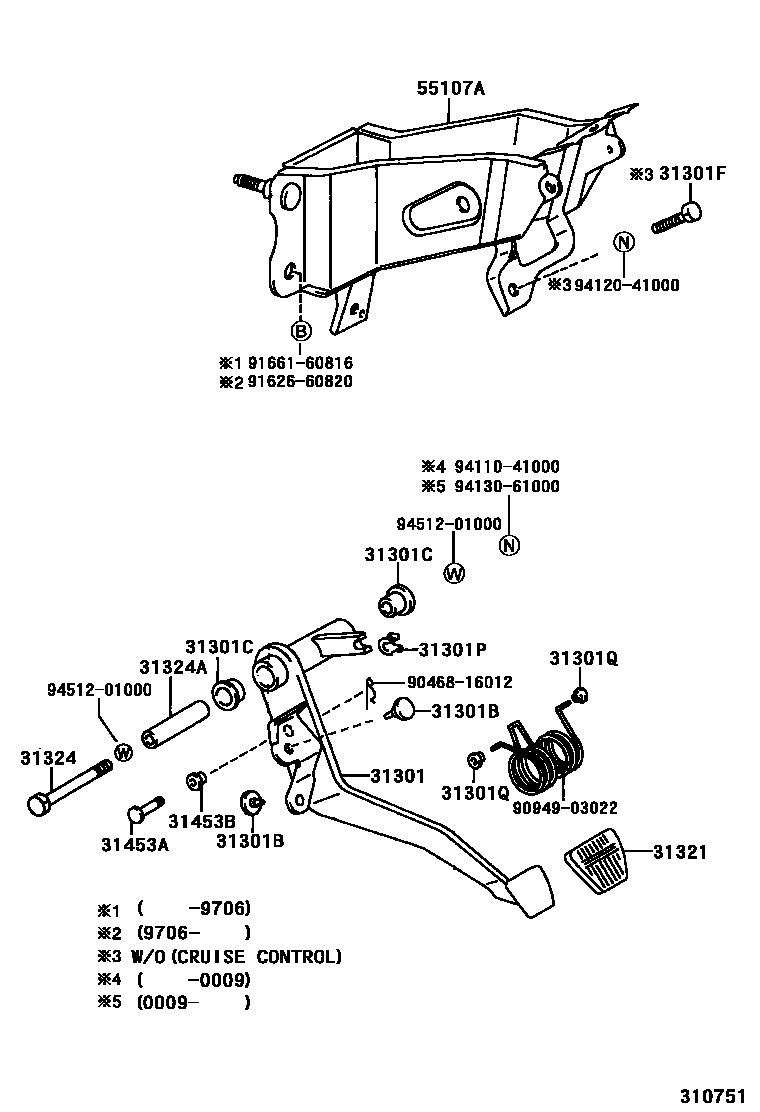

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-35220iRZN161,171..W199501-200009

main31301-35221iRZN161,171..W200009

main31310-35050iVZN160,170..R199501-200009

main31310-35051iVZN170..R200009

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iRZN161,171,VZN160,170..5F199501-200009

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007iRZN161,171,VZN160,170..5F199501-200009

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iRZN161,171,VZN160,170..5F199501-200009

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-05017iVZN170..R199501-200009

31301QBUSH(FOR CLUTCH PEDAL SPRING)

main90386-05018iVZN160,170..R199501-200009

31321PAD, CLUTCH PEDAL

main31321-14020iRZN161,171,VZN160,170..5F199501-200009

main31321-52010iRZN161,171,VZN170..5F200009

31324SHAFT, CLUTCH PEDAL

main90080-10203iRZN161,171..W200001-200009

(L)

main91121-51070iRZN161,171..W199501-199706

main91121-51090iVZN160,170..R199501-200009

main91121-61070iRZN161,171..W199706-200001

main91121-61070iRZN161,171..W200001-200009

(J)

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10027iRZN161,171..W199501-200009

main90387-10121iVZN160,170..R199501-200009

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main47148-34010iRZN161,171,VZN160,170..5F199501-200009

L=27

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iRZN161,171,VZN160,170..5F199501-200009

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-04010iRZN161,171..W199612-200409

(L)

main55107-35040iRZN161,171..W199501-200409

(J)

main55107-35050iVZN170..R199501-200409

9046816012

main90468-16012

9094903022

main90949-03022

9162660820

main91626-60820

9166160816

main91661-60816

9411041000

main94110-41000

9412041000

main94120-41000

9413061000

main94130-61000

9451201000

main94512-01000

20 parts on this diagram · 4 diagrams in section
