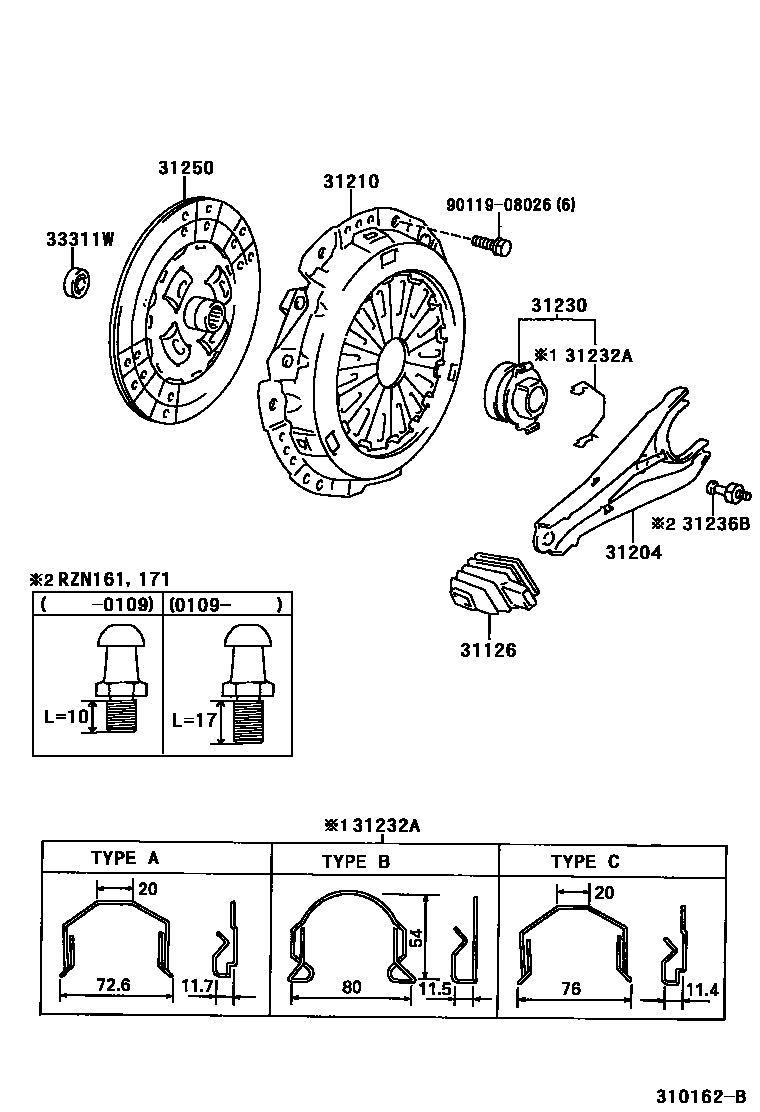

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-26020iRZN161,171..W199501-200409

main31126-34010iVZN160,170..R199501-200409

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iRZN161,171..W199501-200409

main31204-35031iVZN170..R199501-200409

31210COVER ASSY, CLUTCH

main31210-26170iRZN161,171..W200408-200409

sub31210-26171

main31210-35200iRZN161,171..W199501-200408

sub31210-26170

main31210-35210iVZN170..R199501-200409

sub31210-35290

31230BEARING ASSY, CLUTCH RELEASE

main31230-35090iRZN161,171..W199501-200009

sub31230-35091

main31230-35091iRZN161,171..W200009-200409

main31230-35110iVZN170..R199501-200409

31232ACLIP, RELEASE BEARING HUB

main31232-35020iRZN161,171,VZN160,170..5F199501-200009

TYPE A:REFER TO ILLUSTRATION

main31232-35020iRZN161,171,VZN170..5F200009-200409

TYPE A

main31232-35030iVZN160,170..R199501-200009

TYPE B:REFER TO ILLUSTRATION

main31232-35030iVZN170..R200304-200409

TYPE B

main31232-35040iRZN161,171..W200009-200409

TYPE C

main31232-35040iRZN161,171..W199501-200009

TYPE C:REFER TO ILLUSTRATION

31236BSUPPORT, RELEASE FORK

main31236-26010iRZN161,171..W200109-200409

main31236-30060iRZN161,171..W199501-200109

main31236-35030iVZN170..R199501-200409

31250DISC ASSY, CLUTCH

main31250-26230iRZN161,171..W200408-200409

sub31250-26231

main31250-34010iRZN161,171..W199501-199708

sub31250-35400

main31250-35350iVZN160,170..R199501-199703

sub31250-35351

main31250-35351iVZN160,170..R199703-199805

sub31250-35352

main31250-35352iVZN170..R199805-200409

sub31250-35353

main31250-35400iRZN161,171..W199708-200408

sub31250-26230

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iVZN170..R199501-200409

sub90363-12024

main90363-12018iRZN161,171..W200006-200409

NSK

main90363-12020iRZN161,171..W200006-200009

NACHI

9011908026

main90119-08026

9 parts on this diagram · 1 diagram in section
