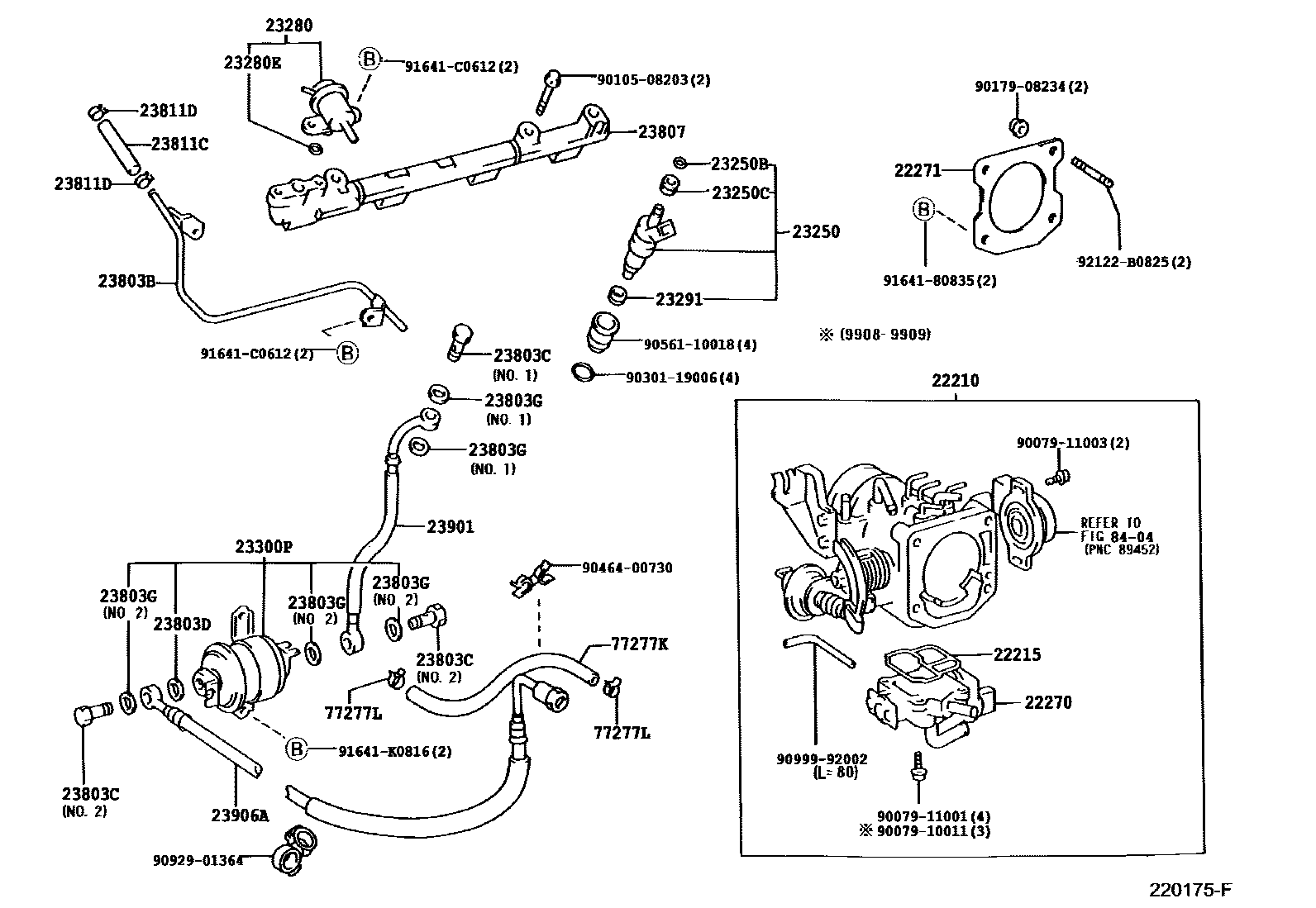

FUEL INJECTION SYSTEM
22210BODY ASSY, THROTTLE
sub22210-62180
sub22210-62190
W(*CRC)
W(*CRC)
W(*CRC)
W(*CRC)
CALIFORNIA SPEC
CALIFORNIA SPEC
CALIFORNIA(LEV) SPEC
CALIFORNIA(LEV) SPEC
22215GASKET, THROTTLE BODY COVER
CALIFORNIA(LEV) SPEC
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
CALIFORNIA(LEV) SPEC
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23300PFILTER, FUEL(FOR EFI)
23803BPIPE SUB-ASSY, FUEL, NO.3
CALIFORNIA(LEV) SPEC
23803CGASKET(NOZZLE LEKAGE PIPE NO.3)
NO.1
NO.2
23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
23803GGASKET(FOR FUEL HOSE)
NO.1
NO.2
23811CHOSE, FUEL(FOR FUEL PIPE TO PRESSURE REGULATOR)
L=120
CALIFORNIA SPEC
23906AHOSE SUB-ASSY, FUEL
8404
9007910011
main90079-10011
9007911001
main90079-11001
9007911003
main90079-11003
9010508203
main90105-08203
9017908234
main90179-08234
9030119006
main90301-19006
9046400730
main90464-00730
9056110018
main90561-10018
9092901364
main90929-01364
9099992002
main90999-92002
9164180835
main91641-80835
91641C0612
main91641-C0612
91641K0816
main91641-K0816
92122B0825
main92122-B0825
37 parts on this diagram · 5 diagrams in section
