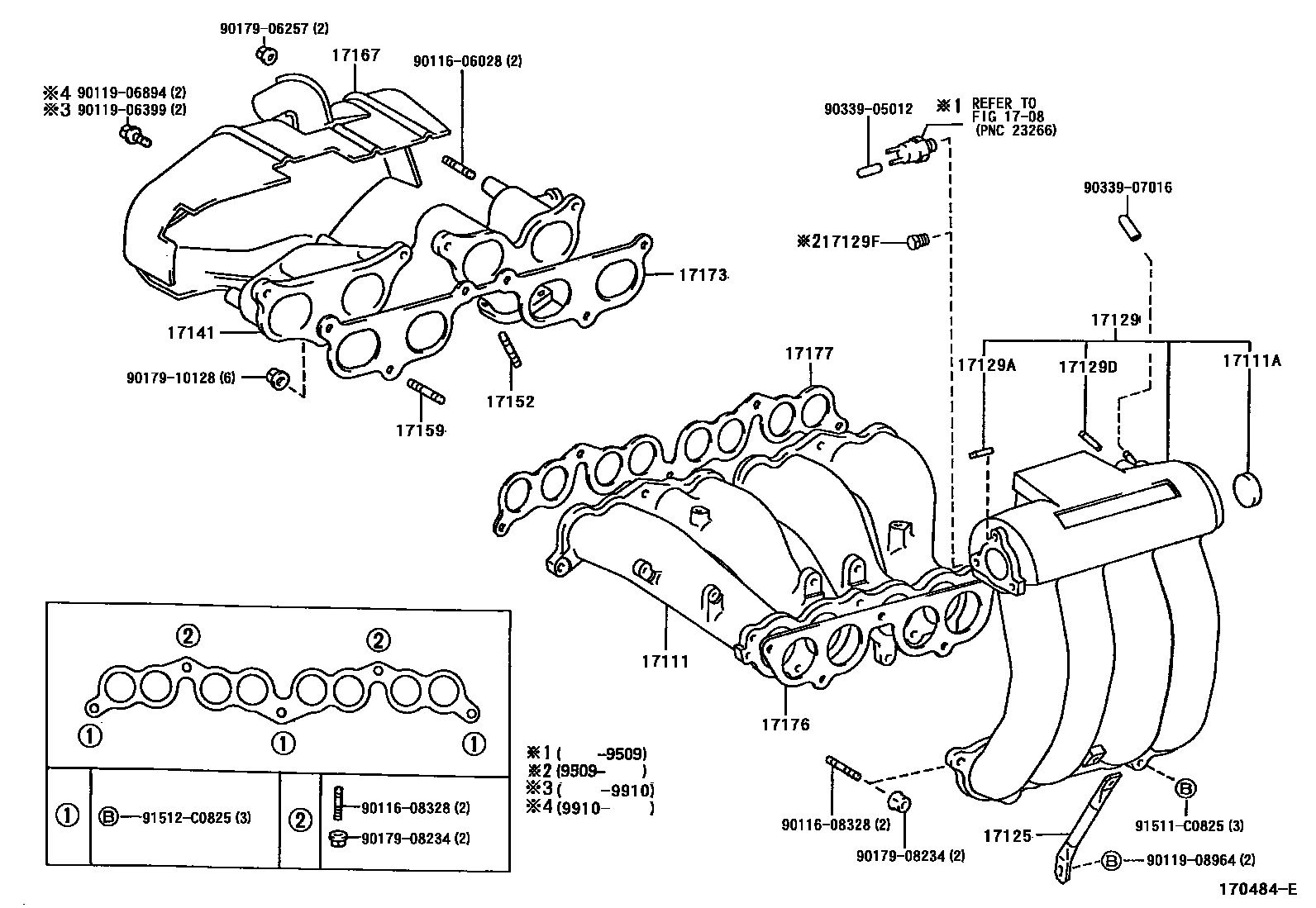

MANIFOLD
1708
17111APLUG, NO.1
17129AUNION, NO.1
17129DUNION, NO.2
17129FPLUG, INTAKE MANIFOLD SUCTION HOLE
CALIFORNIA(LEV) SPEC
17141MANIFOLD, EXHAUST
CALIFORNIA(LEV) SPEC
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE SIDE
EXHAUST SIDE
17173GASKET, EXHAUST MANIFOLD TO HEAD
CALIFORNIA(LEV) SPEC
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
CALIFORNIA(LEV) SPEC
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
CALIFORNIA(LEV) SPEC
9011606028
main90116-06028
9011608328
main90116-08328
9011906399
main90119-06399
9011906894
main90119-06894
9011908964
main90119-08964
9017906257
main90179-06257
9017908234
main90179-08234
9017910128
main90179-10128
9033905012
main90339-05012
9033907016
main90339-07016
91511C0825
main91511-C0825
91512C0825
main91512-C0825
27 parts on this diagram · 4 diagrams in section
