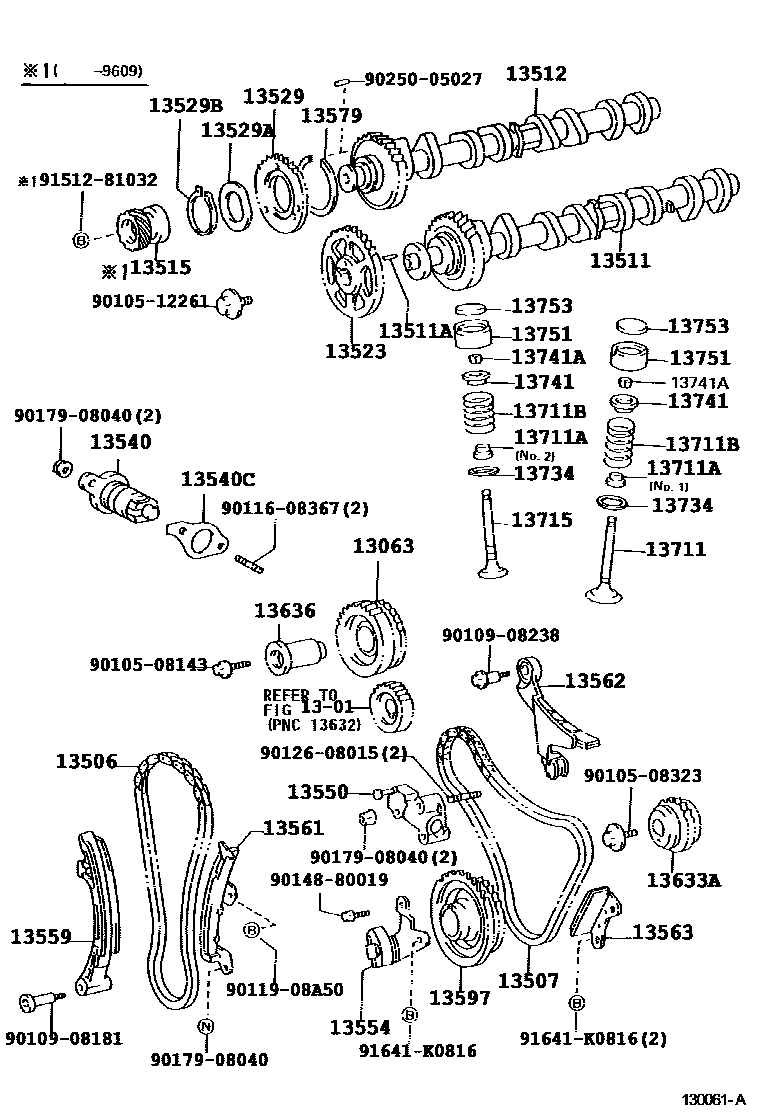

CAMSHAFT & VALVE
1301
13063GEAR SUB-ASSY, BALANCESHAFT DRIVE
sub13063-75011
13506CHAIN SUB-ASSY
13507CHAIN SUB-ASSY, NO.2
13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)
L=15,OD=5
L=11,OD=6
13515GEAR, DISTRIBUTOR DRIVE
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13529GEAR, CAMSHAFT SUB
13529AWASHER, WAVE(FOR CAMSHAFT SUB GEAR)
13529BRING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR)
13540TENSIONER ASSY, CHAIN, NO.1
13540CGASKET(FOR CHAIN TENSIONER)
13550TENSIONER ASSY, CHAIN, NO.2
13554DAMPER, CHAIN VIBRATION, NO.4
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
13562DAMPER, CHAIN VIBRATION, NO.2
13563DAMPER, CHAIN VIBRATION, NO.3
13597SPROCKET, CRANKSHAFT TIMING, NO.2
13633AGEAR, BALANCESHAFT DRIVEN, NO.2
13636SHAFT, BALANCESHAFT DRIVE GEAR
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
FOR INTAKE VALVE
FOR INTAKE VALVE
FOR EXHAUST VALVE
13715VALVE, EXHAUST
13734SEAT, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
T=2.50
T=2.55
T=2.60
T=2.65
T=2.70
T=2.75
T=2.80
T=2.85
T=2.90
T=2.95
T=3.00
T=3.05
T=3.10
T=3.15
T=3.20
T=3.25
T=3.30
9010508143
main90105-08143
9010508323
main90105-08323
9010512261
main90105-12261
9010908181
main90109-08181
9010908238
main90109-08238
9011608367
main90116-08367
9011908A50
main90119-08A50
9012608015
main90126-08015
9014880019
main90148-80019
9017908040
main90179-08040
9025005027
main90250-05027
9151281032
main91512-81032
91641K0816
main91641-K0816
46 parts on this diagram · 2 diagrams in section
