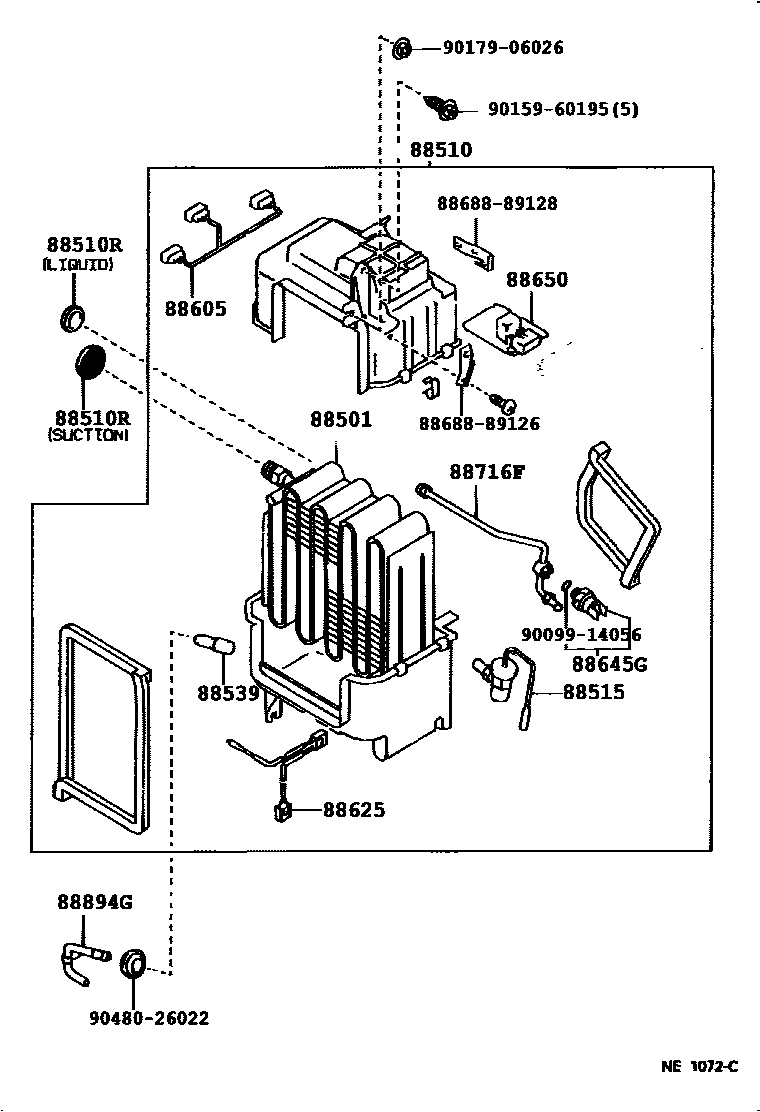

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MAKER OPTION 0002 1DEALER OPTION

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-04010iRN101,110,VZN100,110199202-199401

main88501-04020iRN101,110,VZN100,110199401-199501

88510UNIT ASSY, COOLER

main88510-04020iRN101,110199202-199401

main88510-04040iVZN100,110199202-199401

main88510-04070iRN101,110199401-199501

main88510-04080iVZN100,110..R199401-199501

DEALER OPTION

main88510-04090iVZN110..4FC199401-199501

MAKER OPTION

88510RGROMMET (FOR COOLER UNIT)

main90480-26003iRN101,110,VZN100,110199202-199501

LIQUID

main90480-36003iRN101,110,VZN100,110199202-199501

SUCTION

88515VALVE, COOLER EXPANSION

main88515-03010iRN101,110,VZN100,110199202-199401

main88515-04020iRN101,110,VZN100,110199401-199501

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-04010iRN101,110,VZN100,110199202-199501

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-04010iRN101,110199202-199501

main88605-04020iVZN100,110..R199202-199501

main88605-04030iVZN110..4FC199303-199501

88625THERMISTOR, COOLER, NO.1

main88625-04010iRN101,110,VZN100,110199202-199501

88645GSWITCH, PRESSURE

main88645-01030iVZN100,110199202-199401

main88645-04010iRN101,110199202-199401

main88645-04040iRN101,110,VZN100,110199401-199501

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-89106iRN101,110199202-199501

main88650-89113iVZN100,110199202-199501

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-04010iRN101,110,VZN100,110199202-199401

main88716-04060iRN101,110,VZN100,110199401-199501

88894GCONNECTOR, DRAIN HOSE

main88894-04010iRN101,110,VZN100,110199202-199501

MAKER OPTION

main88894-04020iRN101,110,VZN100,110199202-199501

DEALER OPTION

8868889126BRACKET, COOLER DIAPHRAGM

main88688-89126

8868889128BRACKET, COOLER DIAPHRAGM

main88688-89128

9009914056

main90099-14056

9015960195

main90159-60195

9017906026

main90179-06026

9048026022

main90480-26022

17 parts on this diagram · 2 diagrams in section
