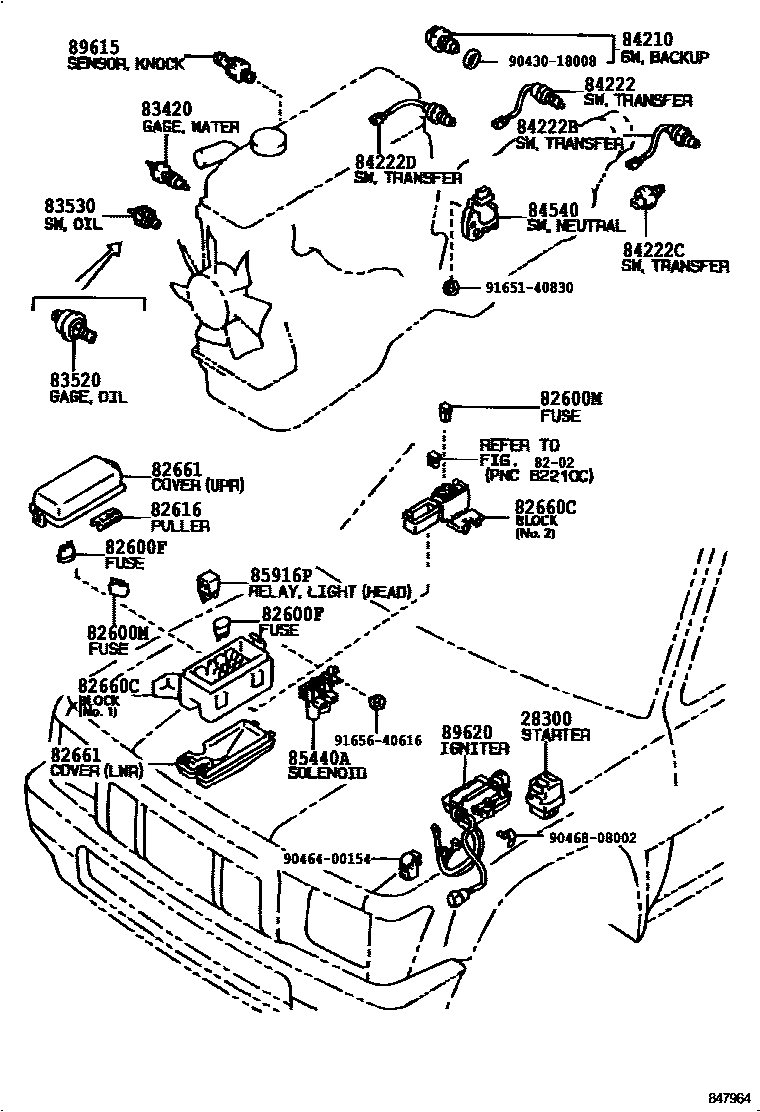

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1

28300RELAY ASSY, STARTER

main28300-10020i22RE,3VZE..RN101,110,VZN100,110199206-199501

main90987-02009i22RE,3VZE..RN101,VZN100199202-199206

8202

82600FFUSE, FUSE BLOCK

main90080-82012iRN101,110,VZN100,110199202-199501

10A,RED

main90080-82013iRN101,110,VZN100,110199202-199501

15A,BLUE

main90080-82014iRN101,110,VZN100,110199203-199501

20A,YELLOW

main90080-82015iRN101,VZN100199203-199209

7.5A,BROWN

main90982-09004iRN101..G199202-199203

20A,YELLOW

main90982-09005iRN101,VZN100199202-199203

7.5A

82600MFUSE, MEDIUM CURRENT

main90982-10001iRN101,VZN110..4FC199209-199501

30A,PINK

82616PULLER, FUSE

main82616-89102iRN101,110,VZN100,110199202-199501

82660CBLOCK ASSY, RELAY

main82660-35030iRN101199203-199205

main82660-35090iVZN100199203-199205

82661COVER, RELAY BLOCK, NO.1

main82662-35010iRN101,110,VZN100,110199202-199501

UPR

main82663-35010iRN101,110,VZN100,110199202-199501

LWR

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iVZN100,110199202-199501

main83420-20020iRN101199202-199209

main83420-20030iRN101,110199209-199501

YAZAKI

sub83420-16040

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14023iRN101,VZN100..5F199202-199209

NIPPONDENSO

sub83520-35030

main83520-34010iRN101,110,VZN100,110..5F199209-199501

main83520-55011iRN101,VZN100..5F199202-199209

YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iRN101199202-199209

sub83530-28030

main83530-14060iVZN100,110199209-199501

sub83530-30090

main83530-14070iRN101,110199209-199501

sub83530-28010

main83530-30080iVZN100199202-199209

sub83530-60040

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iRN101,110,VZN100,110..5F199202-199501

sub84210-52050

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-35050iRN101,110..W199202-199501

main84222-35060iRN101..4FC;RN101,VZN100,110..G,R199202-199501

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-35080iRN101..4FC199202-199501

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-35070iRN101..G;RN101..4FC;VZN100,110199202-199501

84222DSWITCH, TRANSFER INDICATOR, NO.4

main84222-35090iRN101..4FC199202-199501

84540SWITCH ASSY, NEUTRAL START

main84540-30270iRN101,VZN110..4FC199309-199501

MATUSITA

main84540-50010iRN101,VZN110..4FC199202-199309

85440ASOLENOID ASSY, FOUR WHEEL DRIVE CONTROL

main85440-35010iRN101..G;RN101..4FC;VZN100,110199202-199501

85916PRELAY, HEADLAMP

main90987-02006iRN101,110,VZN100,110199202-199501

89615SENSOR, KNOCK CONTROL

main89615-22040iRN101,110199202-199501

main89615-50010iVZN100,110199202-199501

89620IGNITER ASSY

main89620-35280iRN101199202-199209

main89620-35310iRN101,110199209-199501

main89621-12050iVZN100,110199202-199501

9043018008

main90430-18008

9046400154

main90464-00154

9046808002

main90468-08002

9165140830

main91651-40830

9165640616

main91656-40616

25 parts on this diagram · 5 diagrams in section
