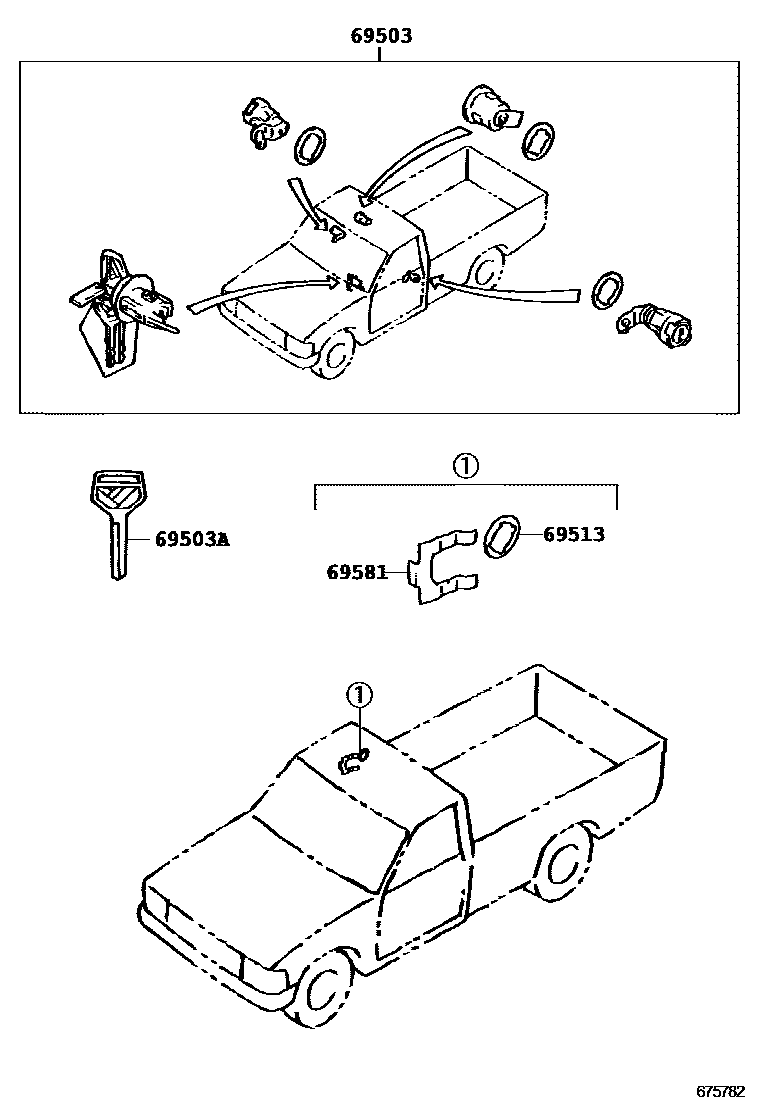

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-35030iRN101,110,VZN100,110199202-199501

sub69005-35130

69503AKEY, BLANK

main90999-00130×2iRN101,110,VZN100,110199202-199501

MASTER KEY

sub90999-00153

main90999-00132iRN101,110,VZN100,110199202-199501

MASTER KEY,W(*68)

sub90999-00174

69513PAD, FUEL FILLER LID LOCK CYLINDER

main69513-32010iRN101,110,VZN100,110199202-199501

69581RETAINER, FUEL FILLER LID CYLINDER

main69511-32010iRN101,110,VZN100,110199202-199501

4 parts on this diagram · 1 diagram in section
