E
EPC Data

FRONT DOOR WINDOW REGULATOR & HINGE

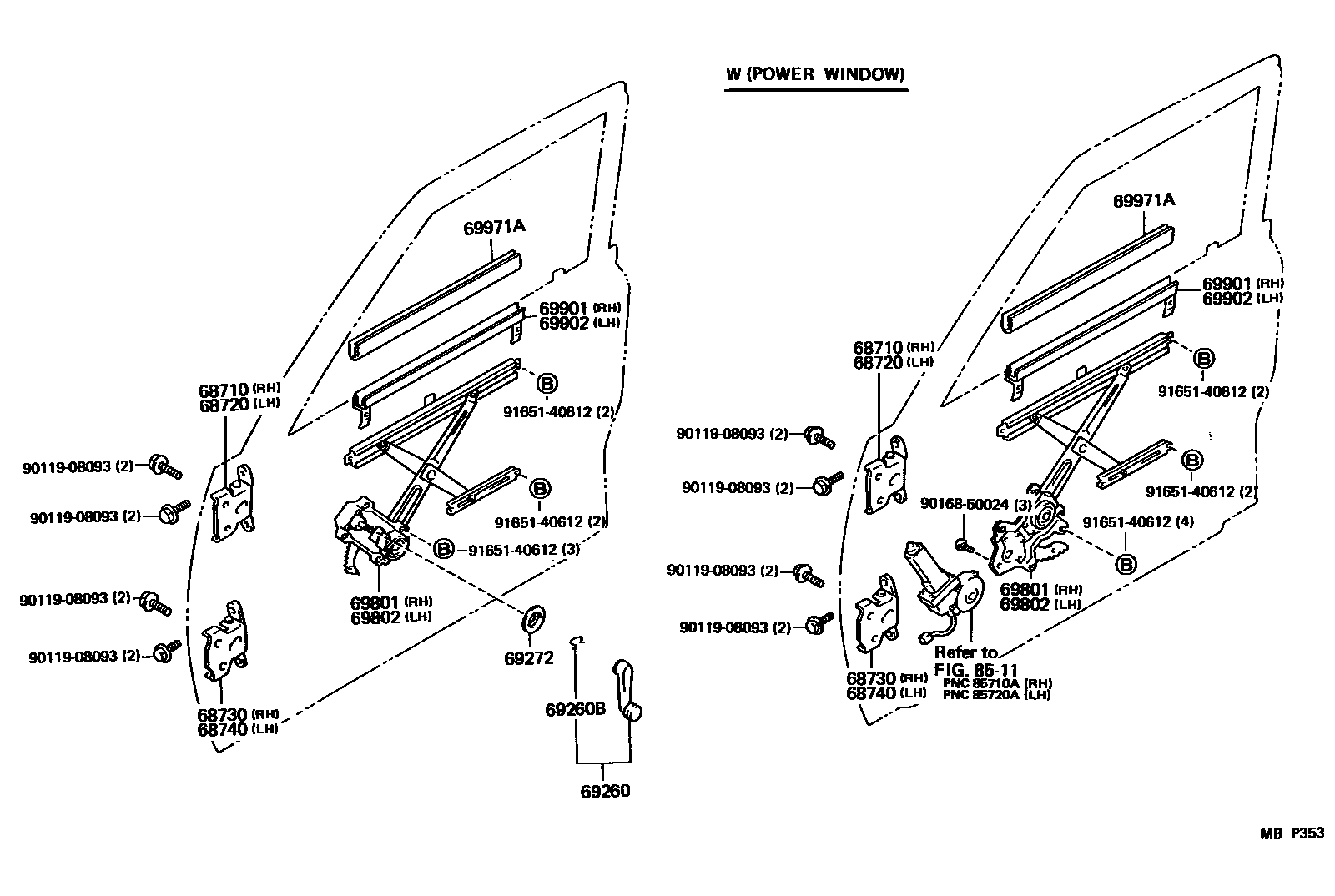

Parts diagram
68710HINGE ASSY, FRONT DOOR, UPPER RH
main68710-35010i199202-199501
68720HINGE ASSY, FRONT DOOR, UPPER LH
main68720-35010i199202-199501
68730HINGE ASSY, FRONT DOOR, LOWER RH
main68730-35010i199202-199501
68740HINGE ASSY, FRONT DOOR, LOWER LH
main68740-35010i199202-199501
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
main69260-04020-B0i199303-199501
MEDIUM GRAY,TRIM1#
main69260-04020-J0i199303-199501
MEDIUM BLUE,TRIM8#
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
main90080-52001i199202-199501
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
main69268-16010i199202-199501
sub69268-20020
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
main69810-04020i199202-199208
sub69810-04021
main69810-04021i199208-199501
main69810-04030i199202-199207
W(FRONT DOOR VENTILATOR WINDOW)
sub69810-04040
main69810-04040i199207-199501
W(FRONT DOOR VENTILATOR WINDOW)
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
main69820-04020i199202-199208
sub69820-04021
main69820-04021i199208-199501
main69820-04030i199202-199207
W(FRONT DOOR VENTILATOR WINDOW)
sub69820-04040
main69820-04040i199207-199501
W(FRONT DOOR VENTILATOR WINDOW)
69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
main69901-89113i199202-199204
main69901-89114i199202-199204
W(FRONT DOOR VENTILATOR WINDOW)
69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
main69901-89113i199202-199204
main69901-89114i199202-199204
W(FRONT DOOR VENTILATOR WINDOW)
69971AFILLER, FRONT DOOR GLASS CHANNEL
main69971-89106i199202-199204
main69971-89107i199202-199204
W(FRONT DOOR VENTILATOR WINDOW)
sub69971-89106
8511
9011908093
main90119-08093
9016850024
main90168-50024
9165140612
main91651-40612

16 parts on this diagram · 1 diagram in section
