FLOOR MAT & SILENCER PAD

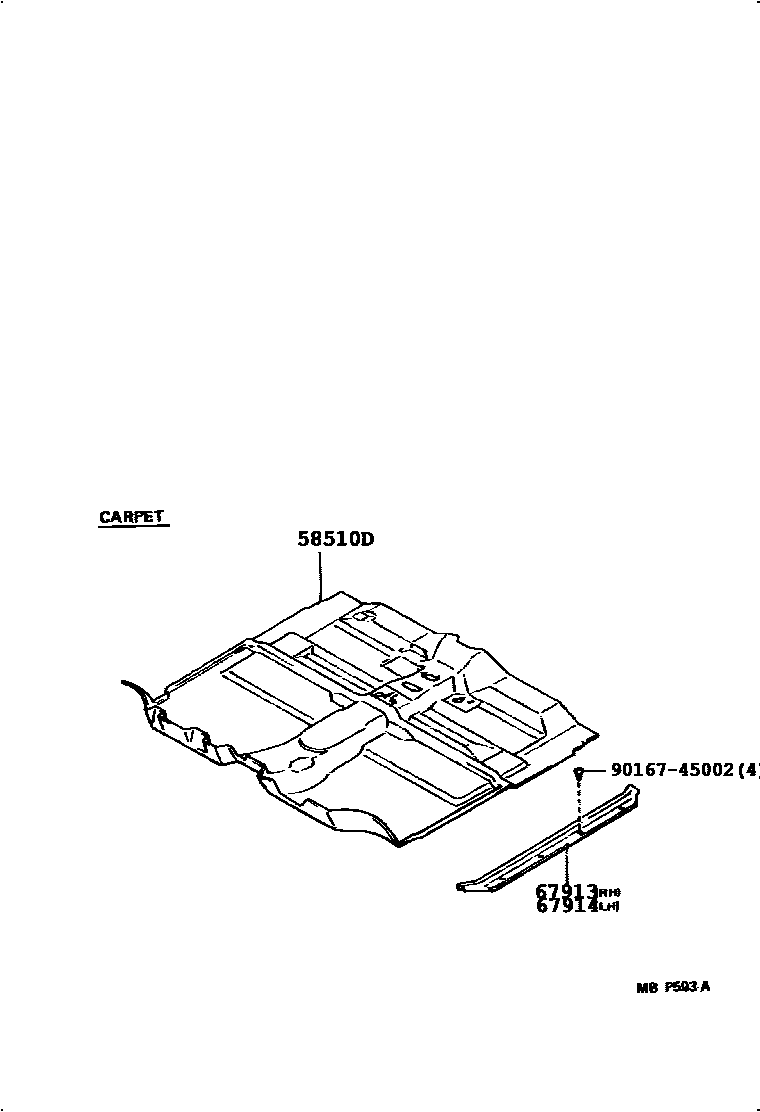

Parts diagram
58510DCARPET ASSY, FLOOR, FRONT
main58510-04030-B0i199202-199501
MEDIUM GRAY,TRIM1#,(L)
main58510-04030-J0i199202-199501
MEDIUM BLUE,TRIM8#,(L)
main58510-04040-B0i199202-199501
MEDIUM GRAY,TRIM1#,(L)
main58510-04040-J0i199202-199501
MEDIUM BLUE,TRIM8#,(L)
main58510-04090-B0i199303-199501
MEDIUM GRAY,TRIM1#
main58510-04090-J0i199303-199501
MEDIUM BLUE,TRIM8#
main58510-04100-B0i199303-199310
W(SPLIT SEAT),MEDIUM GRAY,TRIM1#
main58510-04100-J0i199303-199310
W(SPLIT SEAT),MEDIUM BLUE,TRIM8#
main58510-04110-B0i199303-199501
MEDIUM GRAY,TRIM1#
main58510-04110-J0i199303-199501
MEDIUM BLUE,TRIM8#
main58510-04120-B0i199303-199310
W(SPLIT SEAT),MEDIUM GRAY,TRIM1#
main58510-04120-J0i199303-199310
W(SPLIT SEAT),MEDIUM BLUE,TRIM8#
main58510-35300-B2i199202-199207
W(SEPARATE SEAT),MEDIUM GRAY,TRIM1#
sub58510-35300
sub58510-3D040
main58510-35300-J2i199202-199207
W(SEPARATE SEAT),MEDIUM BLUE,TRIM8#
sub58510-35300
sub58510-3D040
main58510-35310-B0i199202-199207
W(SEPARATE SEAT),GRAY,TRIM1#
sub58510-3D060
main58510-35310-J0i199202-199207
W(SEPARATE SEAT),BLUE,TRIM8#
sub58510-3D060
main58510-3D040-B1i199207-199501
W(SEPARATE SEAT),GRAY,TRIM1#
sub58510-3D040
main58510-3D040-J1i199207-199501
W(SEPARATE SEAT),BLUE,TRIM8#
sub58510-3D040
main58510-3D060-B1i199207-199501
W(SEPARATE SEAT),GRAY,TRIM1#
sub58510-3D060
main58510-3D060-J1i199207-199501
W(SEPARATE SEAT),BLUE,TRIM8#
sub58510-3D060
main58510-3D250-B1i199303-199310
W(SPLIT SEAT),GRAY,TRIM1#
sub58510-3D250
main58510-3D250-J1i199303-199310
W(SPLIT SEAT),BLUE,TRIM8#
sub58510-3D250
main58510-3D270-B1i199303-199310
W(SPLIT SEAT),GRAY,TRIM1#
sub58510-3D270
main58510-3D270-J1i199303-199310
W(SPLIT SEAT),BLUE,TRIM8#
sub58510-3D270
main58510-3D300-B1i199303-199501
GRAY,TRIM1#
sub58510-3D300
sub58510-3D310
main58510-3D300-J1i199303-199501
BLUE,TRIM8#
sub58510-3D300
sub58510-3D310
main58510-3D310-B1i199303-199501
GRAY,TRIM1#
sub58510-3D310
main58510-3D310-J1i199303-199501
BLUE,TRIM8#
sub58510-3D310
main58510-89338-17i199202-199210
MEDIUM GRAY,TRIM1#,(J)
sub58510-3D020
sub58510-89338
main58510-89338-J0i199202-199210
MEDIUM BLUE,TRIM8#,(J)
sub58510-3D020
sub58510-89338
main58510-89374-17i199202-199210
MEDIUM GRAY,TRIM1#,(J)
sub58510-89374
sub58510-35890
main58510-89374-J2i199202-199210
MEDIUM BLUE,TRIM8#,(J)
sub58510-89374
sub58510-35890
67913PLATE, FRONT DOOR SCUFF, RH
main67913-04010-B0i199202-199501
MEDIUM GRAY,TRIM1#,(L)
main67913-04010-J0i199202-199501
MEDIUM BLUE,TRIM8#,(L)
main67913-89104-B0i199202-199210
MEDIUM GRAY,TRIM1#,(J)
sub67913-89104
sub67913-89105
main67913-89104-J0i199202-199210
MEDIUM BLUE,TRIM8#,(J)
sub67913-89104
sub67913-89105
main67913-89105-B0i199303-199501
W(SEPARATE SEAT),MEDIUM GRAY,TRIM1#
sub67913-89105
main67913-89105-B0i199303-199501
MEDIUM GRAY,TRIM1#
sub67913-89105
main67913-89105-J0i199303-199501
MEDIUM BLUE,TRIM8#
sub67913-89105
main67913-89105-J0i199303-199501
W(SEPARATE SEAT),MEDIUM BLUE,TRIM8#
sub67913-89105
67914PLATE, FRONT DOOR SCUFF, LH
main67914-04010-B0i199202-199501
MEDIUM GRAY,TRIM1#,(L)
main67914-04010-J0i199202-199501
MEDIUM BLUE,TRIM8#,(L)
main67914-89103-B0i199202-199210
MEDIUM GRAY,TRIM1#,(J)
sub67914-89103
sub67914-89104
main67914-89103-J0i199202-199210
MEDIUM BLUE,TRIM8#,(J)
sub67914-89103
sub67914-89104
main67914-89104-B0i199303-199501
W(SEPARATE SEAT),MEDIUM GRAY,TRIM1#
sub67914-89104
main67914-89104-B0i199303-199501
MEDIUM GRAY,TRIM1#
sub67914-89104
main67914-89104-J0i199303-199501
MEDIUM BLUE,TRIM8#
sub67914-89104
main67914-89104-J0i199303-199501
W(SEPARATE SEAT),MEDIUM BLUE,TRIM8#
sub67914-89104
9016745002
main90167-45002

4 parts on this diagram · 2 diagrams in section
