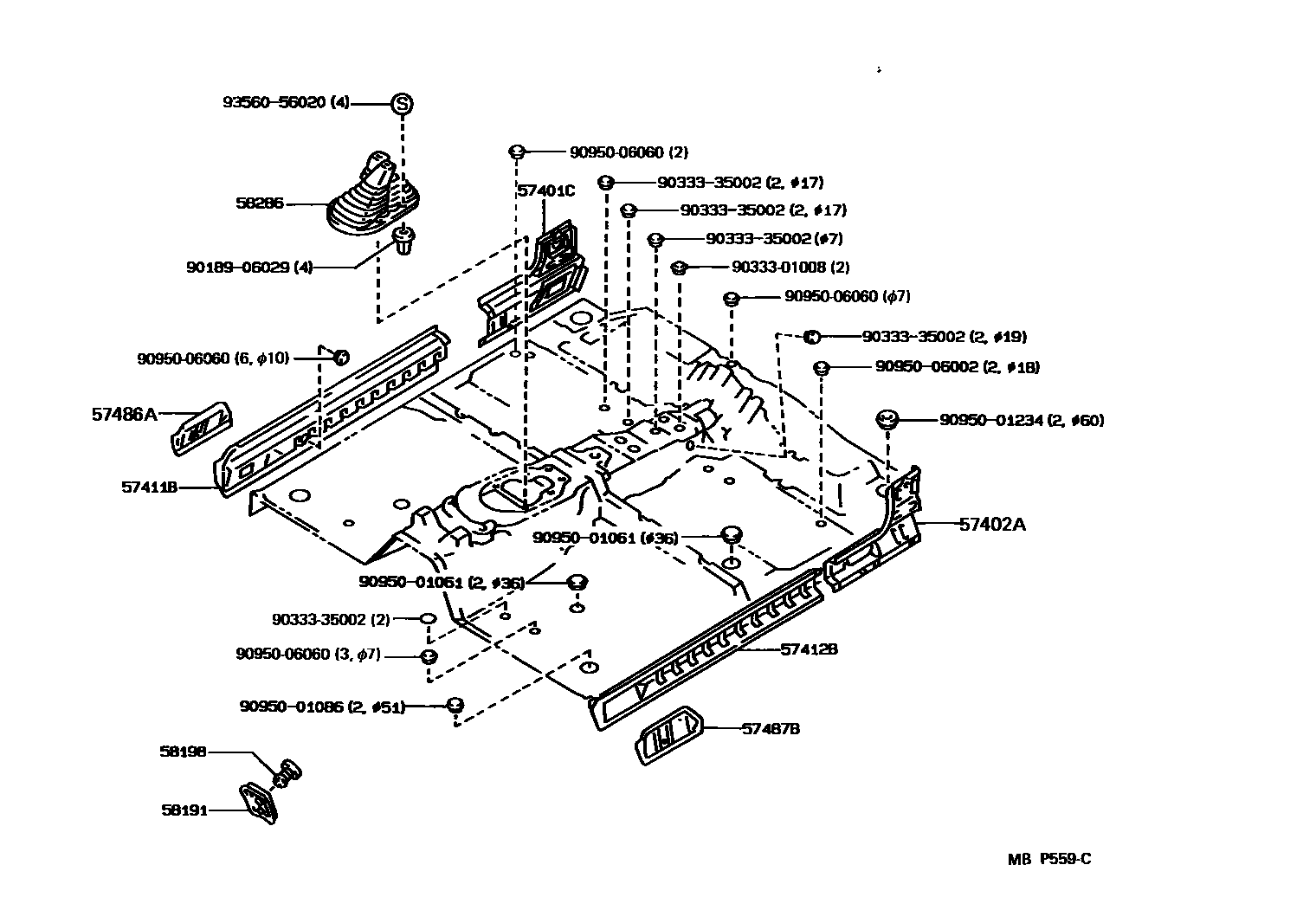

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-04030iRN110,VZN110199303-199501

main57401-89114iRN101,VZN100199202-199501

57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-04030iRN110,VZN110199303-199501

main57402-89114iRN101,VZN100199202-199501

57411BMEMBER, FLOOR SIDE, INNER RH

main57411-35010iRN101,110,VZN100,110199202-199501

57412BMEMBER, FLOOR SIDE, INNER LH

main57412-35010iRN101,110,VZN100,110199202-199501

57486AREINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH

main57486-89104iRN101,110,VZN100,110199202-199501

57487BREINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH

main57487-89102iRN101,110,VZN100,110199202-199501

58191FOOTREST, FRONT FLOOR

main58192-04010iRN101,110,VZN100,110199202-199501

(L)

main58192-89101iRN101,VZN100199202-199207

(J)

58198CLIP, FOOTREST

main58198-04010iRN101,110,VZN100,110199202-199501

(L)

main58198-89101iRN101,VZN100199202-199207

(J)

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-35070-B0iRN101,VZN100,110..G,R199308-199402

GRAY,TRIM1#

sub58280-35070

main58280-35070-J0iRN101,VZN100,110..G,R199308-199402

BLUE,TRIM8#

sub58280-35070

main58280-89120-R9iRN101,VZN100,110..G,R199202-199501

BLUE,TRIM8#

sub58280-89120

main58280-89120-S4iRN101,VZN100,110..G,R199202-199501

GRAY,TRIM1#

sub58280-89120

main58280-89121-R9iRN101,110..W199202-199501

BLUE,TRIM8#

sub58280-89121

main58280-89121-S4iRN101,110..W199202-199501

GRAY,TRIM1#

sub58280-89121

9018906029

main90189-06029

9033301008

main90333-01008

9033335002

main90333-35002

9095001061

main90950-01061

9095001086

main90950-01086

9095001234

main90950-01234

9095006002

main90950-06002

9095006060

main90950-06060

9356056020

main93560-56020

18 parts on this diagram · 3 diagrams in section
