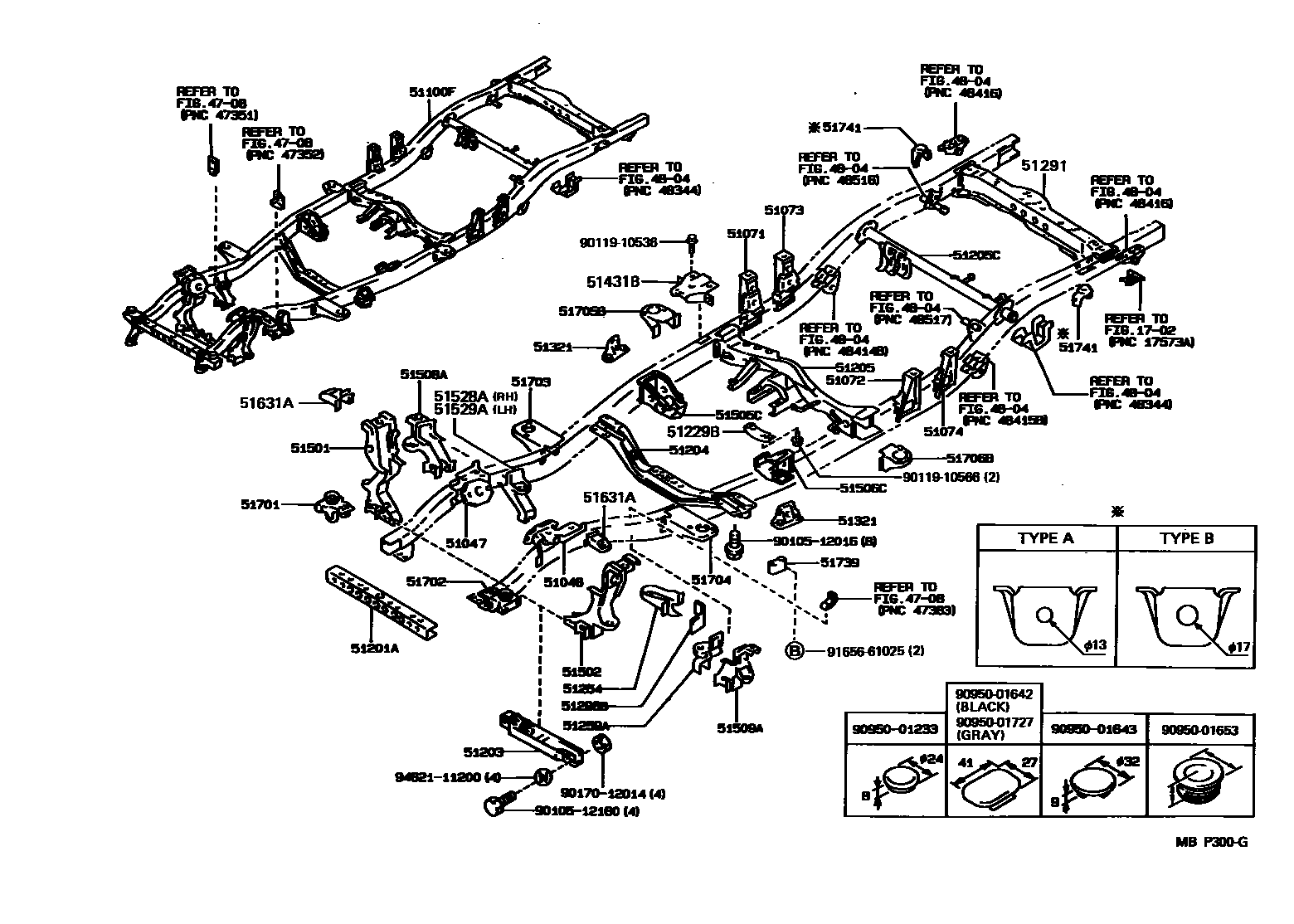

FRAME
1702
4708
4804
51047BRACKET SUB-ASSY, ENGINE MOUNTING & UPPER ARM, RH
51048BRACKET SUB-ASSY, ENGINE MOUNTING & UPPER ARM, LH
51071BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH
51072BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH
51073BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH
51074BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH
51100FFRAME SUB-ASSY
51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT
sub51201-35240
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
51205CROSSMEMBER SUB-ASSY, FRAME, NO.4
51205CCROSSMEMBER SUB-ASSY, FRAME, NO.5
51229BDUMPER, NO.2 FRAME CROSSMEMBER DYNAMIC
51254BRACKET, DIFFERENTIAL SUPPORT, LH
51259AWEIGHT, NO.4 CROSSMEMBER DUMPER
51291CROSSMEMBER, FRAME, REAR
51296BREINFORCEMENT, DIFFERENTIAL BRACKET, LH
51321GUSSET, CROSSMEMBER, NO.2 RH
RH
51431BBRACKET, ENGINE REAR MOUNTING
51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH
sub51501-35071
51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH
sub51502-35071
51505CSUPPORT SUB-ASSY, ANCHOR ARM, RH
51506CSUPPORT SUB-ASSY, ANCHOR ARM, LH
51508ABRACKET SUB-ASSY, LOWER ARM, RH
51509ABRACKET SUB-ASSY, LOWER ARM, LH
51528AREINFORCEMENT, LOWER ARM BRACKET, RH
51529AREINFORCEMENT, LOWER ARM BRACKET, LH
51631ASTOPPER, FRONT SUSPENSION REBOUND, NO.1
51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51705BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH
51706BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH
51739WEIGHT, CAB MOUNTING NO.2 BRACKET
51741BRACKET, REAR BODY MOUNTING, NO.1
9010512016
main90105-12016
9010512160
main90105-12160
9011910536
main90119-10536
9011910566
main90119-10566
9017012014
main90170-12014
9095001233
main90950-01233
9095001642
main90950-01642
9095001643
main90950-01643
9095001653
main90950-01653
9095001727
main90950-01727
9165661025
main91656-61025
9462111200
main94621-11200
51 parts on this diagram · 1 diagram in section
