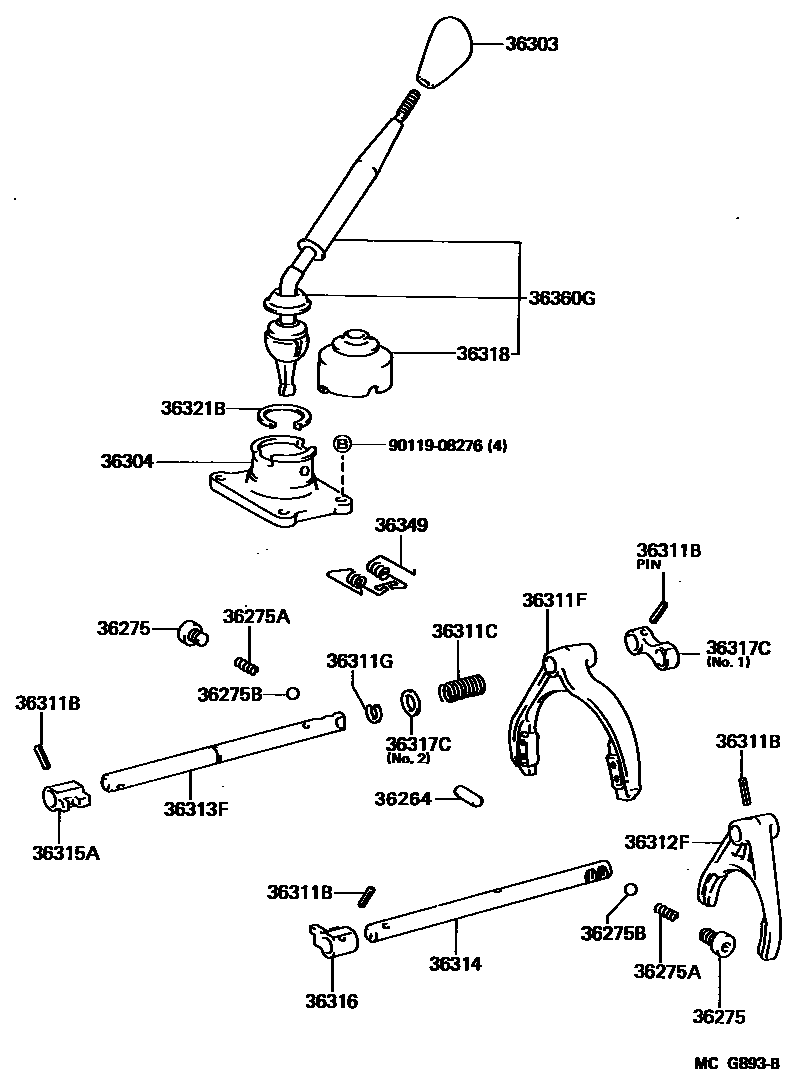

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1 0003 1

36264PIN OR ROLLER, SHIFT INTER-LOCK

main90250-06005iRN101,110..W199202-199501

L=30.8,OD=6

main90250-10020iRN101..4FC;RN101,VZN100,110..G,R199202-199501

L=25.7,OD=9.53

36275PLUG, SHIFT DETENT BALL SPRING

main90341-10064iRN101,110..W199202-199501

main90341-12014iRN101..4FC;RN101,VZN100,110..G,R199202-199501

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-13001iRN101,110..W199202-199501

L=16.5

main90501-16116iRN101..4FC;RN101,VZN100,110..G,R199202-199501

L=23,RH

main90501-18091iRN101..4FC;RN101,VZN100,110..G,R199202-199501

L=20.8,LH

36275BBALL, SHIFT DETENT

main90360-08009iRN101,110..W199202-199501

OD=7.94,STEEL

main90360-10003iRN101..4FC;RN101,VZN100,110..G,R199202-199501

OD=9.52,STEEL

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-35100iRN101,110,VZN100,110..5F199202-199501

main36303-35110-R9iRN101..4FC199202-199501

MEDIUM BLUE,TRIM8#

sub36303-35110

sub36303-35140

main36303-35110-S4iRN101..4FC199202-199501

MEDIUM GRAY,TRIM1#

sub36303-35110

sub36303-35140

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main36304-35040iVZN100,110..R199202-199501

sub36304-35H01

sub36304-35H21

sub36304-35H27

main36304-35050iRN101..G;RN101..4FC199202-199501

sub36304-35H02

sub36304-35H03

sub36304-35H04

sub36304-35H05

sub36304-35H06

sub36304-35H07

sub36304-35H08

sub36304-35H09

sub36304-35H10

sub36304-35H11

sub36304-35H12

sub36304-35H22

sub36304-35H23

sub36304-35H24

sub36304-35H25

sub36304-35H26

36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)

main90254-05001iRN101,110,VZN100,110..R,W199202-199501

L=22

36311CSPRING, COMPRESION (FOR SHIFT FORK)

main90501-20088iRN101..4FC;RN101,VZN100,110..G,R199202-199501

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36311-35010iRN101,110..W199202-199501

main36311-35020iRN101..4FC;VZN100,110..R199202-199501

main36311-35030iRN101..G199202-199411

main36311-35030iRN101..4FC;VZN100,110..R199202-199501

W(*ADD)

36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)

main90520-13002iRN101..G;RN101..4FC199202-199501

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36312-35020iRN101,110..W199202-199501

main36312-35040iRN101..4FC;RN101,VZN100,110..G,R199202-199501

36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK

main36313-35040iVZN100,110..R199202-199501

main36313-35050iRN101..G;RN101..4FC199202-199501

main36313-35060iRN101,110..W199202-199501

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-35080iRN101,110..W199202-199501

main36314-35110iRN101..G;RN101..4FC199202-199501

main36314-35130iVZN100,110..R199202-199501

36315APIN, TRANSFER GEAR SHIFT FORK SHAFT

main36315-35010iRN101..G;RN101..4FC199202-199501

36316HEAD, TRANSFER GEAR SHIFT, NO.2

main36316-35020iRN101..G;RN101..4FC199202-199501

36317CSTOPPER, TRANSFER SHIFT SHAFT

main36317-35010iRN101..G199202-199405

NO.1

sub36317-35011

main36317-35011iRN101..4FC199403-199501

NO.1

main36317-35011iVZN100,110..R199403-199501

main36317-35020iRN101..G;RN101..4FC199202-199501

NO.2

36318BOOT, TRANSFER FRONT DRIVE SHIFT

main33555-20060iRN101,110..W199202-199501

main33555-35090iRN101..4FC;RN101,VZN100,110..G,R199202-199501

36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)

main90521-49003iVZN110..R;RN101,110,VZN100199202-199501

36349SPRING, TRANSFER SELECT RETURN

main36349-35010iVZN100,110..R199202-199501

main36349-35020iRN101..G;RN101..4FC199202-199501

main36349-35040iRN101,110..W199202-199501

36360GLEVER ASSY, TRANSFER HIGH & LOW SHIFT

main36360-35070iRN101,VZN100,110..G,R199202-199501

sub36360-35071

sub36304-35051

main36360-35090iRN101,110..W199202-199501

main36360-35130iRN101..4FC199202-199501

sub36360-35131

sub36304-35051

9011908276

main90119-08276

21 parts on this diagram · 3 diagrams in section
