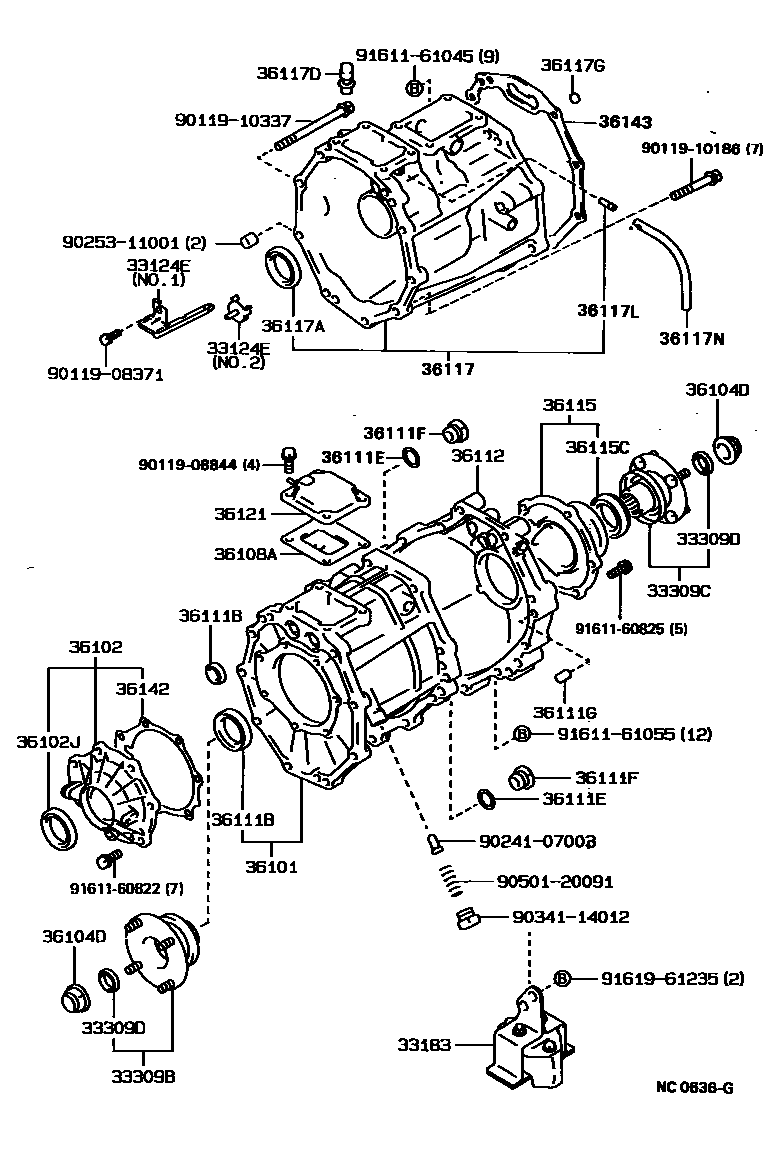

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1 0003 1 0004 1 0005 1

33124EPIPE, OIL RECEIVER(FOR TRANSFER)

main33106-35020iRN101,110..W199202-199501

main33124-35070iRN101..G199202-199411

NO.2

main33124-35100iVZN100,110..R199405-199501

main33124-36010iVZN100,110..R199202-199405

main33124-36010iRN101..G199202-199411

NO.1

33183DAMPER, TRANSFER DYNAMIC

main33183-35010iRN101..4FC;RN101,VZN100,110..G,R199202-199501

main33183-35040iVZN110..4FC199303-199501

33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35030iRN101,110..W199202-199501

main33309-35061iRN101..4FC;RN101,VZN100,110..G,R199202-199501

sub33309-35063

sub90311-41017

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35040iRN101,110..W199202-199501

main33309-35080iRN101..4FC;RN101,VZN100,110..G,R199202-199501

sub33309-35100

33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90312-23001iRN101..4FC;RN101,VZN100,110..G,R199202-199501

36101CASE SUB-ASSY, TRANSFER

main36101-35050iVZN100,110..R199202-199501

main36101-35060iRN101..G;RN101..4FC199202-199501

36102COVER SUB-ASSY, TRANSFER CASE

main36102-35011iRN101..4FC;RN101,VZN100,110..G,R199202-199501

sub36102-35012

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main90311-40007iRN101..4FC;RN101,VZN100,110..G,R199202-199501

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-20001iRN101,110..W199202-199501

main90179-22016iRN101..4FC;RN101,VZN100,110..G,R199202-199501

36108ADEFLECTOR SUB-ASSY, BREATHER OIL

main36108-35030iRN101..G;RN101..4FC199202-199501

sub36108-35031

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-15008iRN101..G;RN101..4FC199202-199501

FORK SHAFT SIDE

main90311-41006iVZN100,110..R199202-199406

FR OUTPUT SIDE

sub90311-41008

main90311-41008iRN101..G;RN101..4FC199406-199501

FR OUTPUT SIDE

sub90311-41011

36111EGASKET (FOR TRANSFER CASE)

main90430-18008iRN101,VZN100,110..G,R199202-199501

36111FPLUG (FOR TRANSFER CASE)

main90341-18006iRN101,VZN100,110..G,R199202-199501

FILLER

main90341-18057iVZN110..R;RN101,110,VZN100199202-199501

DRAIN

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214iRN101..4FC;RN101,VZN100,110..G,R199202-199501

L=14,OD=10

main90250-10232iRN101,110..W199202-199501

L=15,OD=8

36112CASE, TRANSFER, REAR

main36112-35020iRN101..4FC;RN101,VZN100,110..G,R199202-199501

36115HOUSING, TRANSFER EXTENSION

main36105-35020iRN101..4FC;RN101,VZN100,110..G,R199202-199501

sub36105-35040

main36115-35010iRN101,110..W199202-199501

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-38140iRN101,110..W199202-199501

main90311-41005iRN101..4FC;RN101,VZN100,110..G,R199202-199406

sub90311-41007

main90311-41007iRN101..4FC;RN101,VZN100,110..G,R199406-199501

sub90311-41020

36117ADAPTER, TRANSFER

main36107-35072iVZN100199202-199208

sub36107-35150

sub33521-35240

main36107-35100iRN101..G199202-199411

main36107-35140iRN101,110..W199202-199501

main36107-35150iVZN100,110..R199208-199405

main36107-35180iVZN100,110..R199405-199501

36117ASEAL, OIL(FOR TRANSFER ADAPTER)

main90311-32009iRN101,110..W199202-199501

main90311-40007iRN101,VZN100,110..G,R199202-199501

36117DPLUG(FOR TRANSFER ADAPTER)

main90930-03085iRN101..G199202-199411

main90930-03114iVZN100199202-199501

36117GPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER)

main90331-21003iVZN100,110..R199208-199501

main90341-10065iRN101,110..W199202-199501

main90341-20010iRN101..G199202-199411

36117LTUBE(FOR TRANSFER ADAPTER)

main90441-05001iRN101..4FC;RN101,VZN100,110..G,R199202-199501

sub90406-T0007

36117NHOSE(FOR TRANSFER ADAPTER)

main90445-08265iRN101..G;RN101..4FC199202-199501

36121COVER, TRANSFER CASE, NO.1

main36102-35020iRN101..G;RN101..4FC199202-199501

sub36102-35040

main36121-35010iRN101,110..W199202-199501

36142GASKET, TRANSFER COVER

main36142-35010iRN101..4FC;RN101,VZN100,110..G,R199202-199501

36143GASKET, TRANSFER CASE, FRONT

main36143-35010iRN101,110..W199202-199501

main36143-35030iVZN100,110..R199202-199501

9011908371

main90119-08371

9011908844

main90119-08844

9011910186

main90119-10186

9011910337

main90119-10337

9024107003

main90241-07003

9025311001

main90253-11001

9034114012

main90341-14012

9050120091

main90501-20091

9161160822

main91611-60822

9161160825

main91611-60825

9161161045

main91611-61045

9161161055

main91611-61055

9161961235

main91619-61235

39 parts on this diagram · 5 diagrams in section
