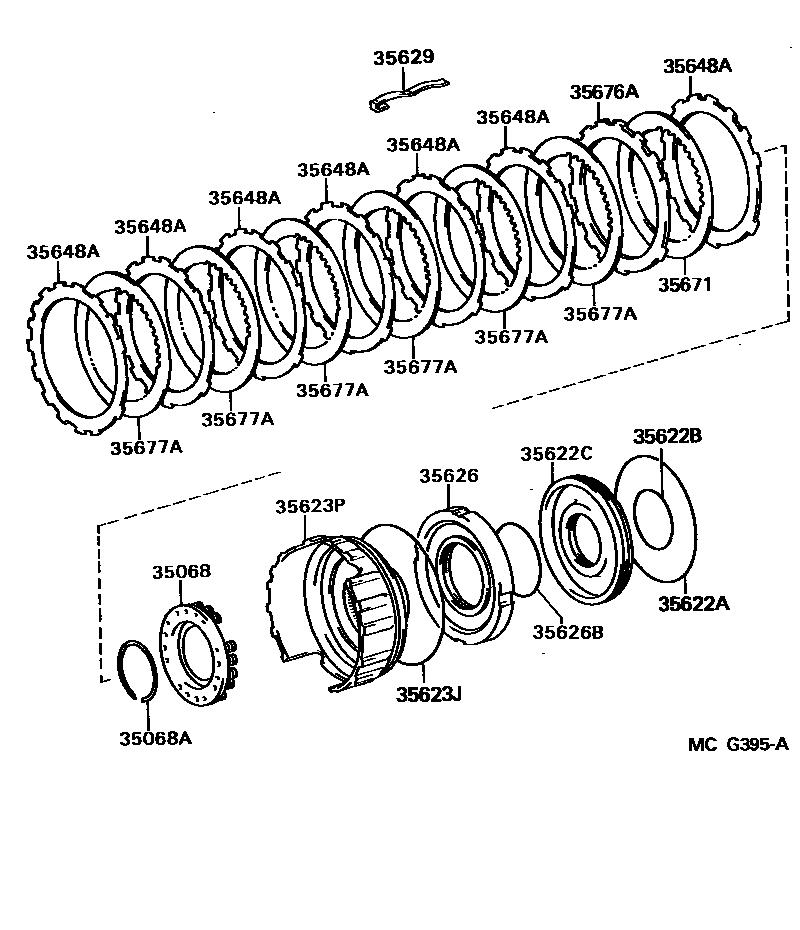

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-30011iRN101..4FC199202-199501

main35068-35010iVZN110..4FC199303-199501

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-52262iRN101,VZN110..4FC199202-199501

35622ARING (FOR BRAKE PISTON OUTER)

main90301-99193iRN101,VZN110..4FC199202-199501

35622BRING (FOR BRAKE PISTON INNER)

main90301-57188iRN101,VZN110..4FC199202-199501

35622CPISTON, 1ST & REVERSE BRAKE, NO.1

main35622-30010iRN101,VZN110..4FC199202-199501

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99192iRN101,VZN110..4FC199202-199501

35623PPISTON, 1ST & REVERSE BRAKE, NO.2

main35623-35011iVZN110..4FC199303-199501

main35623-35022iRN101..4FC199202-199501

35626SLEEVE, BRAKE REACTION

main35626-30020iRN101,VZN110..4FC199202-199501

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-68191iRN101,VZN110..4FC199202-199501

sub90301-67005

35629SPRING (1ST & REVS BRAKE PLATE STOPPER)

main35629-22020iVZN110..4FC199303-199501

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-30031iRN101..4FC199202-199501

35671PLATE, BRAKE CUSHION

main35671-35010iVZN110..4FC199303-199501

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-50010iRN101,VZN110..4FC199202-199501

T=5.0

main35676-50020iRN101,VZN110..4FC199202-199501

T=4.8

main35676-50030iRN101,VZN110..4FC199202-199501

T=4.6

main35676-50040iRN101,VZN110..4FC199202-199501

T=4.4

main35676-50050iRN101,VZN110..4FC199202-199501

T=4.2

main35676-50060iRN101,VZN110..4FC199202-199501

T=4.0

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-30110iRN101..4FC199202-199501

sub35677-30130

14 parts on this diagram · 1 diagram in section
