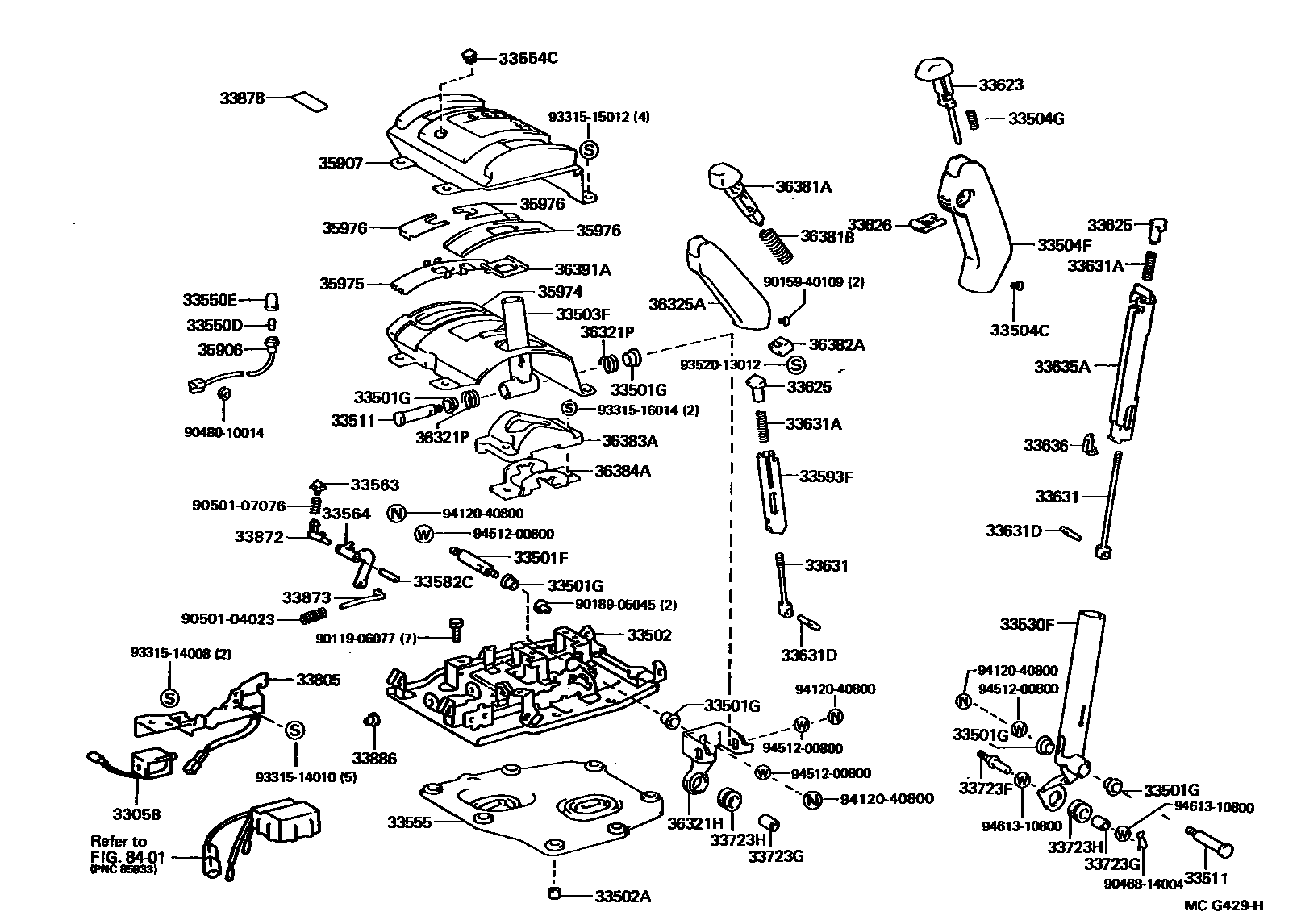

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33058BRACKET SUB-ASSY, SHIFT LOCK SOLENOID

main33058-35030iRN101..4FC¥3,940199202-199208

main33058-35050iRN101,VZN110..4FC¥3,950199208-199501

33501FSHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)

main33511-20240iVZN110..4FC¥720199303-199501

main33511-32020iRN101..4FC¥380199202-199501

33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main90385-11003iRN101..4FC¥610199202-199501

main90385-11003iVZN110..4FC¥610199303-199501

FOR TRANSFER LEVER

main90385-11020iVZN110..4FC¥210199303-199501

FOR SHIFT LEVER

33502PLATE SUB-ASSY, SHIFT LEVER

main33502-35200iRN101..4FC¥7,200199202-199501

main33502-35210iVZN110..4FC¥10,600199303-199501

33502ACOLLAR (FOR FLOOR SHIFT SETTING)

main90387-06065iRN101..4FC¥180199202-199501

OD=8.8

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33503-35060iVZN110..4FC¥2,380199303-199501

33504CSCREW (FOR SHIFT LEVER KNOB SETTING)

main90159-40109iRN101..4FC¥80199202-199501

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14050-10iRN101,110,VZN100,110..5F199202-199501

BLUE,TRIM8#

sub33504-14050¥3,000

sub33504-14070¥2,730

main33504-14050-S4iRN101,110,VZN100,110..5F199202-199501

MEDIUM GRAY,TRIM1#

sub33504-14050¥3,000

sub33504-14070¥2,730

main33542-35070-03iRN101,VZN110..4FC199202-199501

GRAY,TRIM1#

sub33542-35070¥3,730

main33542-35070-04iRN101,VZN110..4FC199202-199501

BLUE,TRIM8#

sub33542-35070¥3,730

33504GSPRING, COMPRESSION (FOR SHIFT LEVER KNOB)

main90501-07009iRN101,VZN110..4FC¥350199202-199501

33511SHAFT, CONTROL (FOR FLOOR SHIFT)

main33511-35120iVZN110..4FC¥440199303-199501

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33055-35030iRN101..4FC¥5,100199202-199501

main33055-35050iVZN110..4FC¥3,710199303-199501

main33530-35151iRN101..W¥8,700199202-199203

sub33530-35152¥8,700

main33530-35152iRN101,110..W¥8,700199203-199501

main33530-35190iRN101,VZN100..G,R¥8,700199202-199203

sub33530-35191¥8,800

main33530-35191iRN101,VZN100,110..G,R¥8,800199203-199501

33550DBULB, POSITION INDICATOR LAMP

main90981-11018iRN101,VZN110..4FC¥140199202-199501

12V 1.2W W/O SOCKET

33550ECAP, POSITION INDICATOR LAMP

main90339-04014iVZN110..4FC¥100199303-199501

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-35030iVZN110..4FC¥530199308-199501

main33554-35040iRN101..4FC¥530199308-199501

33555BOOT, SHIFT LEVER

main33555-35070iVZN110..4FC¥1,010199303-199501

main33555-35110iRN101..4FC¥1,960199202-199501

UPR

main33555-35120iRN101..4FC¥1,090199202-199501

LWR

main33555-60030iRN101,110,VZN100,110..5F¥580199202-199501

33563BUTTON, SHIFT LOCK RELEASE

main33563-35010iVZN110..4FC¥250199303-199501

main33563-35040iRN101..4FC¥190199202-199308

main33563-35070iRN101..4FC¥380199308-199501

33564LINK, SHIFT LOCK RELEASE, NO.1

main33564-35060iRN101,VZN110..4FC¥400199202-199501

33582CPIN, STRAIGHT (FOR FLOOR SHIFT LOCK PLATE STOPPER)

main90250-03065iRN101,VZN110..4FC¥160199202-199501

33593FHOLDER, SPRING (FOR FLOOR SHIFT)

main33593-35010iVZN110..4FC¥950199303-199501

33623BUTTON, SHIFT LEVER KNOB

main33623-35020iRN101..4FC¥370199308-199501

main33623-35020-03iRN101,VZN110..4FC199202-199501

GRAY,TRIM1#

sub33623-35020¥370

main33623-35020-04iRN101,VZN110..4FC199202-199501

BLUE,TRIM8#

sub33623-35020¥370

33625SLEEVE, SHIFT LEVER KNOB

main33625-35020iVZN110..4FC¥440199303-199501

TRANSFER SIDE

main33625-35040iVZN110..4FC¥400199202-199501

TRANSMISSION SIDE

33626STOPPER, SHIFT LEVER BUTTON

main33626-35020-03iRN101,VZN110..4FC199202-199501

GRAY,TRIM1#

sub33626-35020¥280

main33626-35020-04iRN101,VZN110..4FC199202-199501

BLUE,TRIM8#

sub33626-35020¥280

33631ROD, DETENT

main33631-12080iVZN110..4FC¥980199202-199501

TRANSMISSION SIDE

main33631-35030iVZN110..4FC¥600199303-199501

TRANSFER SIDE

33631ASPRING, COMPRESSION (FOR DETENT ROD)

main90501-07074iRN101..4FC¥90199202-199501

33631DPIN, GROOVED (FOR DETENT ROD)

main90256-04001iRN101..4FC¥260199202-199501

33635AGUIDE, WIRE, NO.1 (FOR SHIFT LEVER)

main33635-35040iRN101,VZN110..4FC¥670199202-199501

33636GUIDE, WIRE, NO.2 (FOR SHIFT LEVER)

main33636-35010iRN101,VZN110..4FC¥160199202-199501

33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)

main33723-22010iRN101,VZN110..4FC¥640199202-199501

33723GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main90389-08005iRN101..4FC¥140199202-199501

33723HGROMMET (FOR FLOOR SHIFT CONTROL SHAFT)

main90480-17177iRN101..4FC¥190199202-199501

33805PLATE SUB-ASSY, SHIFT LOCK (FOR FLOOR SHIFT)

main33805-35050iRN101,VZN110..4FC¥1,590199202-199501

33872LINK, SHIFT LOCK RELEASE, NO.2

main33872-35050iVZN110..4FC¥790199303-199501

main33872-35060iRN101..4FC¥780199202-199501

33873LINK, SHIFT LOCK RELEASE, NO.3

main33873-35020iRN101,VZN110..4FC¥440199202-199501

33878LABEL, SHIFT LOCK INFORMATION, NO.2

main33878-14010iRN101..4FC¥180199202-199501

main33878-32010iVZN110..4FC¥180199303-199501

33886STOPPER, SHIFT LEVER

main33886-16010iRN101,VZN110..4FC¥110199202-199501

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-35060iRN101,VZN110..4FC¥1,160199202-199501

sub35906-17020¥1,020

35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)

main35907-35070iVZN110..4FC¥1,560199303-199308

main35907-35120iRN101..4FC¥1,840199202-199308

main35907-35170iVZN110..4FC¥3,000199308-199501

main35907-35180iRN101..4FC¥1,840199308-199501

35974HOUSING, POSITION INDICATOR, LOWER

main35974-35070iVZN110..4FC¥2,100199303-199501

main35974-35090iRN101..4FC¥1,530199202-199308

main35974-35120iRN101..4FC¥1,970199308-199501

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-35050iVZN110..4FC¥990199303-199501

main35975-35070iRN101..4FC¥1,530199202-199501

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-35010iVZN110..4FC¥660199303-199501

TRANSFER SIDE

main35976-35020iVZN110..4FC¥460199303-199501

TRANSMISSION SIDE

main35976-35040iRN101..4FC¥600199202-199501

36321HLEVER, TRANSFER SHIFT

main36321-35040iVZN110..4FC¥1,160199303-199501

36321PSPRING (FOR TRANSFER SHIFT LEVER)

main90508-26068iVZN110..4FC¥190199303-199501

FR

main90508-26069iVZN110..4FC¥190199303-199501

RR

36325AKNOB, LEVER, NO.2

main36325-35030-03iVZN110..4FC199303-199501

GRAY,TRIM1#

sub36325-35030¥1,210

main36325-35030-04iVZN110..4FC199303-199501

BLUE,TRIM8#

sub36325-35030¥1,210

36381ABUTTON, TRANSFER SHIFT LEVER KNOB

main36381-35020-03iVZN110..4FC199303-199501

GRAY,TRIM1#

sub36381-35020¥480

main36381-35020-04iVZN110..4FC199303-199501

BLUE,TRIM8#

sub36381-35020¥480

36381BSPRING, COMPRESSION (FOR SHIFT LEVER KNOB)

main90501-08068iVZN110..4FC¥170199303-199501

36382ASTOPPER, TRANSFER SHIFT LEVER BUTTON

main36382-35010iVZN110..4FC¥380199303-199501

36383ASUPPORT, TRANSFER DETENT BLOCK

main36383-35030iVZN110..4FC¥1,350199303-199501

36384ABLOCK, TRANSFER DETENT

main36384-35010iVZN110..4FC¥850199303-199501

36391ACOVER, TRANSFER SLIDE

main36391-35010iVZN110..4FC¥460199303-199501

8401

9011906077

main90119-06077¥80

9015940109

main90159-40109¥80

9018905045

main90189-05045¥130

9046814004

main90468-14004¥80

9048010014

main90480-10014¥200

9050104023

main90501-04023¥330

9050107076

main90501-07076¥140

9331514008

main93315-14008¥80

9331514010

main93315-14010¥160

9331515012

main93315-15012¥80

9331516014

main93315-16014¥80

9352013012

main93520-13012¥170

9412040800

main94120-40800¥90

9451200800

main94512-00800¥80

9461310800

main94613-10800¥90

65 parts on this diagram · 6 diagrams in section
