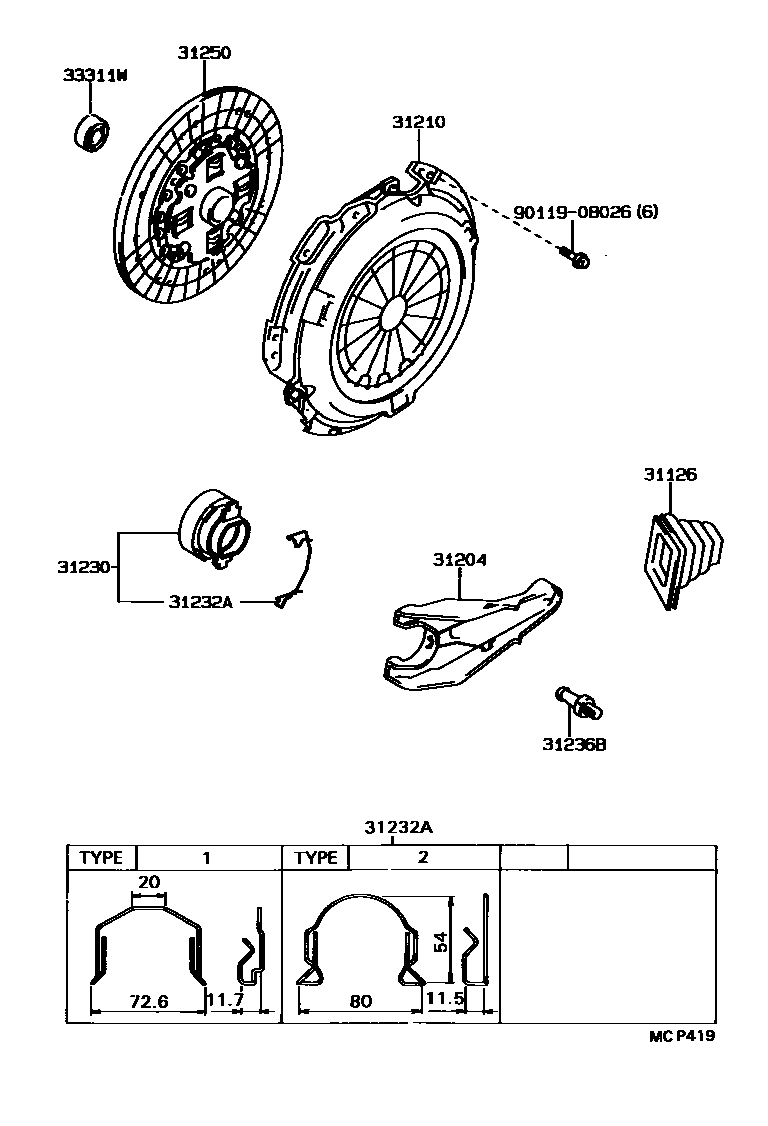

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iRN101,110,VZN100,110..5F199202-199501

main31126-34010iVZN100,110..R199409-199501

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iRN101,110..5F199202-199501

main31204-35031iVZN100,110..R199202-199501

31210COVER ASSY, CLUTCH

main31210-30240iRN101,110..5F199208-199501

sub31210-30241

main31210-35071iVZN100,110..R199202-199501

sub31210-35192

main31210-35110iRN101..5F199202-199208

sub31210-53040

31230BEARING ASSY, CLUTCH RELEASE

main31230-35070iRN101,110,VZN100,110..5F199202-199501

sub31230-35071

31232ACLIP, RELEASE BEARING HUB

main31232-35020iRN101,110,VZN100,110..5F199202-199501

main31232-35030iRN101,110,VZN100,110..5F199202-199501

31236BSUPPORT, RELEASE FORK

main31236-30060iRN101,110..5F199202-199501

main31236-35030iVZN100,110..R199202-199501

31250DISC ASSY, CLUTCH

main31250-35161iVZN100,110..R199202-199501

sub31250-35162

main31250-35233iRN101..5F199202-199208

sub31250-22320

main31250-35320iRN101,110..5F199208-199308

sub31250-35321

main31250-35321iRN101,110..5F199308-199501

sub31250-35380

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iRN101,110,VZN100,110..5F199202-199501

sub90363-12024

9011908026

main90119-08026

9 parts on this diagram · 1 diagram in section
