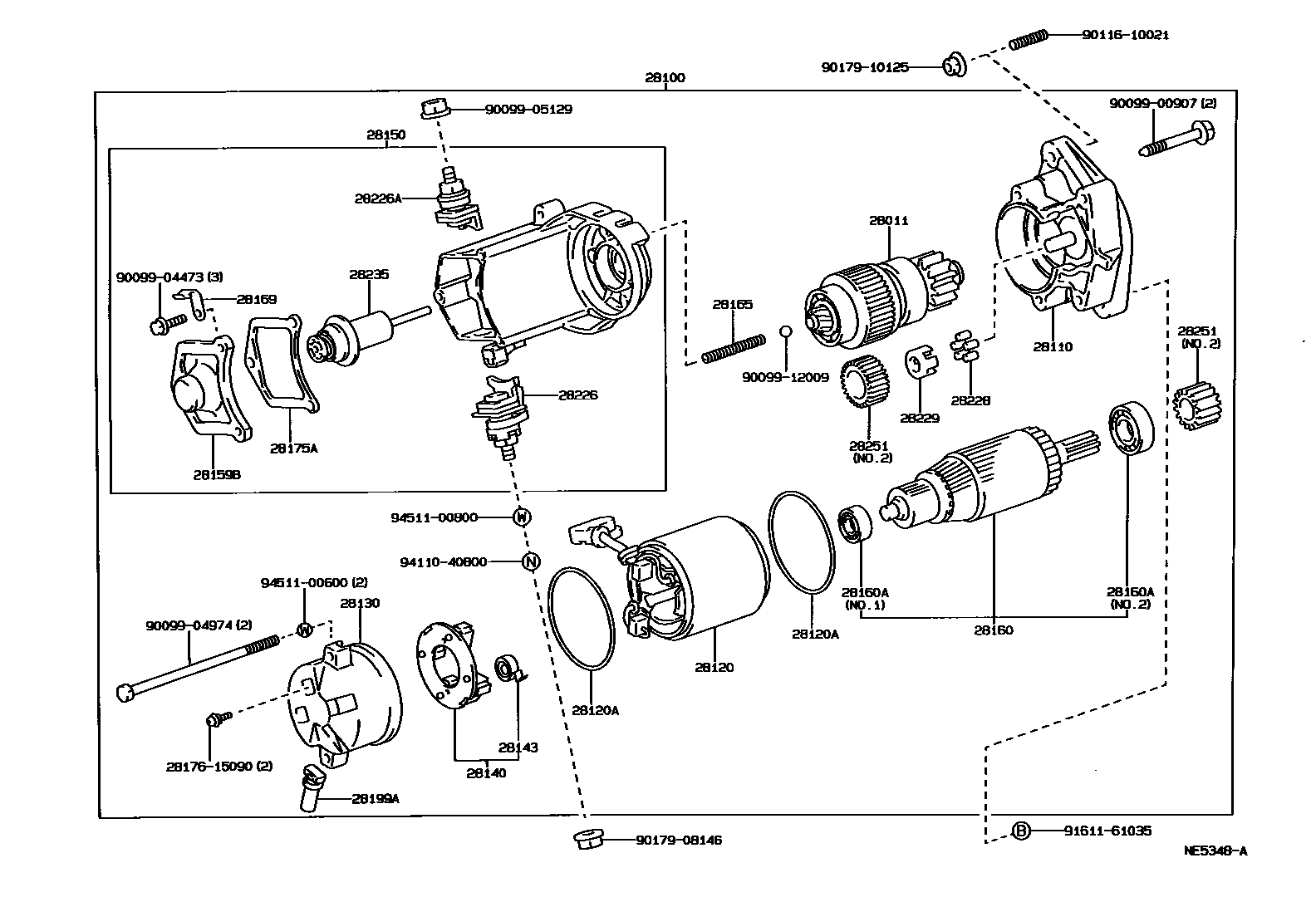

STARTER
28011CLUTCH SUB-ASSY, STARTER
NIPPONDENSO USA
USA DENSO
NIPPONDENSO
28100STARTER ASSY
12V 1.4KW,USA DENSO
12V 1.4KW,NIPPONDENSO USA
12V 1.4KW,NIPPONDENSO
12V 1.4KW,NIPPONDENSO
12V 1.6KW,COLD SPEC
12V 1.6KW,COLD SPEC
28110HOUSING ASSY, STARTER DRIVE
NIPPONDENSO USA
USA DENSO
NIPPONDENSO
28120YOKE ASSY, STARTER
NIPPONDENSO USA
USA DENSO
COLD SPEC
NIPPONDENSO
28120ARING, O(FOR STARTER YOKE)
28130FRAME ASSY, STARTER COMMUTATOR END
USA DENSO
NIPPONDENSO USA
NIPPONDENSO
28140HOLDER ASSY, STARTER BRUSH
NIPPONDENSO USA
USA DENSO
NIPPONDENSO
28143SPRING, STARTER BRUSH
COLD SPEC
28150SWITCH ASSY, MAGNET STARTER
NIPPONDENSO USA
USA DENSO
NIPPONDENSO
NIPPONDENSO
28159BCOVER, MAGNET SWITCH
28160ARMATURE ASSY, STARTER
NIPPONDENSO USA
USA DENSO
COLD SPEC
NIPPONDENSO
28160ABEARING, STARTER ARMATURE
NO.2
NO.1
NO.1
NO.2
COLD SPEC,NO.2
28165SPRING, STARTER MAGNET SWITCH RETURN
USA DENSO
NIPPONDENSO USA
NIPPONDENSO
28169CLAMP, STARTER MOTOR LEAD WIRE
28175AGASKET, MAGNET SWITCH COVER
28199APROTECTOR, DUST STARTER
28226ASTARTER KIT, MOTOR TERMINAL
28228ROLLER, STARTER IDLE GEAR CLUTCH
NIPPONDENSO USA
USA DENSO
NIPPONDENSO
28229RETAINER, STARTER IDLE GEAR
USA DENSO
NIPPONDENSO USA
NIPPONDENSO
28235PLUNGER, MAGNET SWITCH
28251PINION, STARTER DRIVE
NO.2
2817615090SCREW, STARTER
main28176-15090
9009900907
main90099-00907
9009904473
main90099-04473
9009904974
main90099-04974
9009905129
main90099-05129
9009912009
main90099-12009
9011610021
main90116-10021
9017908146
main90179-08146
9017910125
main90179-10125
9161161035
main91611-61035
9411040800
main94110-40800
9451100600
main94511-00600
9451100800
main94511-00800
35 parts on this diagram · 3 diagrams in section
