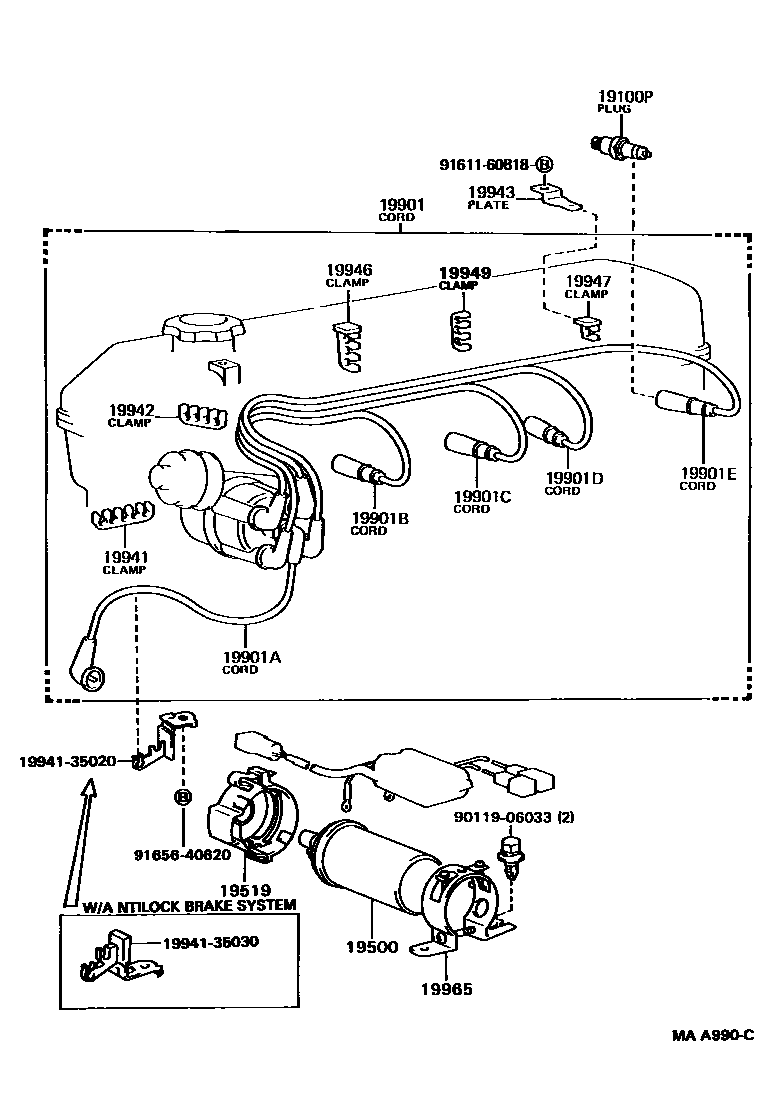

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1

19100PPLUG, SPARK

main90919-01064i22RE..RN101,110199202-199501

W16EXR-U

main90919-01176i3VZE..VZN100,110199202-199501

K16R-U

19500COIL ASSY, IGNITION

main90919-02190i22RE..RN101199202-199209

sub90919-02113

main90919-02197i3VZE..VZN100,110199202-199501

19519COVER, IGNITION COIL

main19519-28020i22RE..RN101199202-199209

COLD SPEC

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21431i22RE..RN101199202-199209

sub90919-29055

main90919-21528i3VZE..VZN100,110199202-199501

main90919-21553i22RE..RN101,110199209-199501

19901ACORD, COIL RESISTIVE

main90919-13404i22RE..RN101199202-199209

sub90919-13485

main90919-13419i3VZE..VZN100,110199202-199501

SUMIDEN

main90919-13420i3VZE..VZN100,110199202-199501

YAZAKI

main90919-13437i22RE..RN101,110199209-199501

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15243i22RE..RN101199202-199209

main90919-15276i3VZE..VZN100,110199202-199501

main90919-15368i22RE..RN101,110199209-199501

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15244i22RE..RN101199202-199209

main90919-15277i3VZE..VZN100,110199202-199501

main90919-15369i22RE..RN101,110199209-199501

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15245i22RE..RN101199202-199209

main90919-15278i3VZE..VZN100,110199202-199501

main90919-15370i22RE..RN101,110199209-199501

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-15246i22RE..RN101199202-199209

main90919-15279i3VZE..VZN100,110199202-199501

main90919-15371i22RE..RN101,110199209-199501

19941CLAMP, RESISTIVE CORD, NO.1

main90464-00214i22RE..RN101199202-199209

main90464-00555i22RE..RN101,110199209-199501

19942CLAMP, RESISTIVE CORD, NO.2

main90464-00061i22RE..RN101199202-199209

main90464-00556i22RE..RN101,110199209-199501

19943PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1

main19943-35010i22RE..RN101,110199202-199501

main19943-65020i3VZE..VZN100,110199202-199501

19946CLAMP, RESISTIVE CORD, NO.3

main90464-00303i22RE..RN101199202-199209

main90464-00693i22RE..RN101,110199209-199501

19947CLAMP, RESISTIVE CORD, NO.4

main90464-00059i22RE..RN101199202-199209

main90464-00685i22RE..RN101,110199209-199501

19949CLAMP, RESISTIVE CORD, NO.5

main90464-00144i22RE..RN101199202-199209

main90464-00556i22RE..RN101,110199209-199501

19965BAND, IGNITION COIL, NO.1

main90919-03111i22RE..RN101199202-199209

main90919-03112i3VZE..VZN100199202-199501

1994135020CLAMP, RESISTIVE CORD, NO.1

main19941-35020

1994135030CLAMP, RESISTIVE CORD, NO.1

main19941-35030

9011906033

main90119-06033

9161160818

main91611-60818

9165640620

main91656-40620

21 parts on this diagram · 3 diagrams in section
