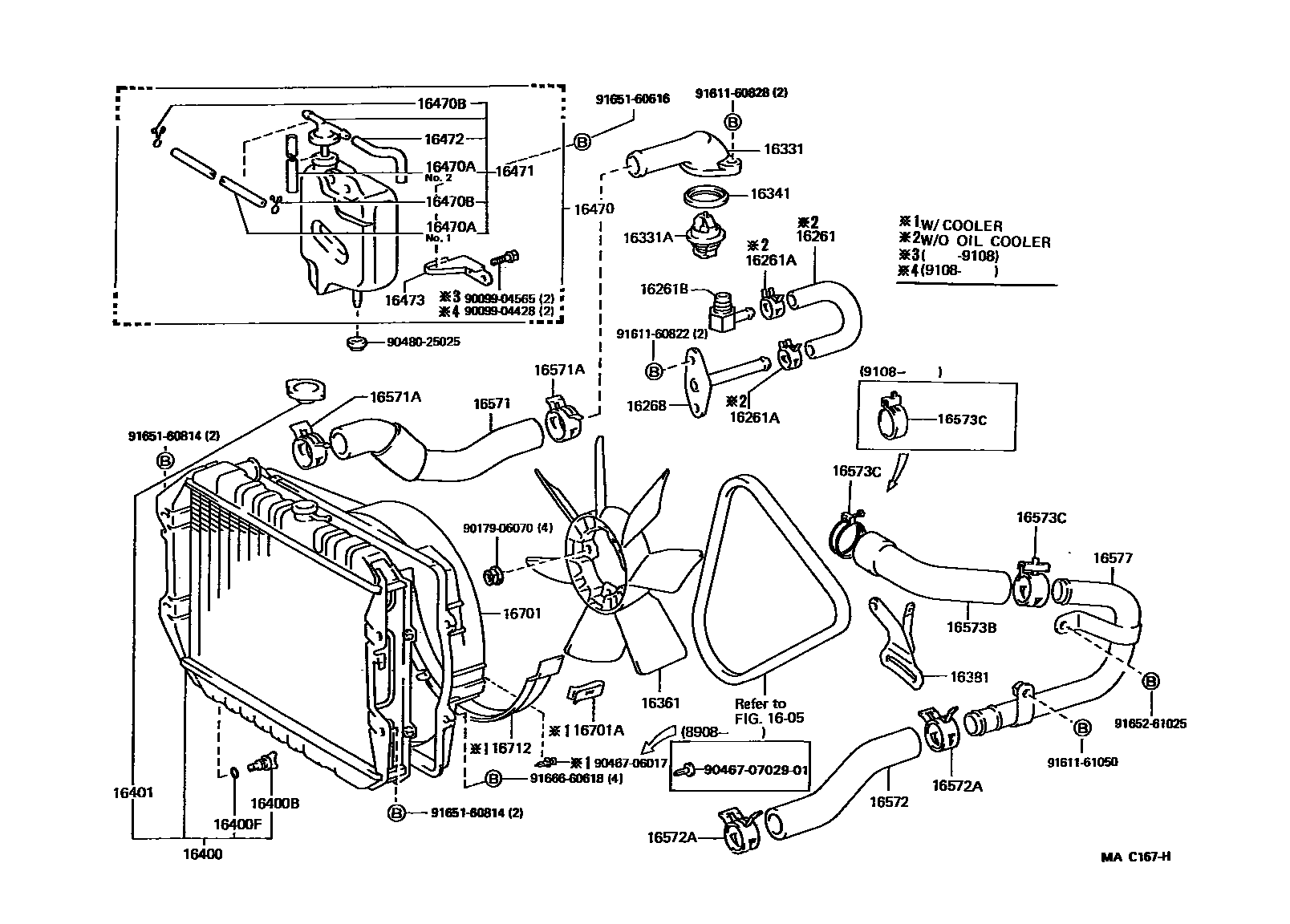

RADIATOR & WATER OUTLET
1605
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
sub96134-41900
16261BUNION(FOR WATER BY-PASS HOSE)
16268PIPE, WATER BY-PASS, NO.1
16331OUTLET, WATER
16331ATHERMOSTAT
*WAX 88-100
*WAX 82-95
16361FAN
16381BAR, FAN BELT ADJUSTING
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
NIPPONDENSO
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
NO.3
L=600,NO.1,NO.2
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16473SUPPORT(FOR RADIATOR RESERVE TANK)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
sub90466-38001
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
16577PIPE, RADIATOR, NO.7
16701ACLIP(FOR FAN SHROUD)
16712SHROUD, FAN, NO.2
9009904428
main90099-04428
9009904565
main90099-04565
9017906070
main90179-06070
9046706017
main90467-06017
904670702901
main90467-0702901
9048025025
main90480-25025
9161160822
main91611-60822
9161160828
main91611-60828
9161161050
main91611-61050
9165160616
main91651-60616
9165160814
main91651-60814
9165261025
main91652-61025
9166660618
main91666-60618
43 parts on this diagram · 3 diagrams in section
