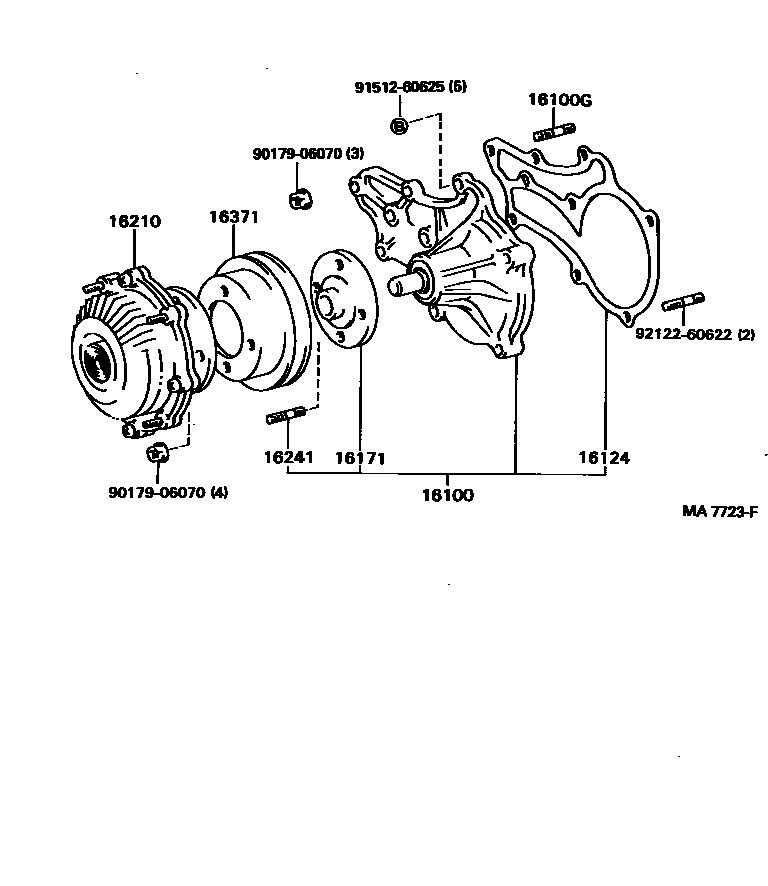

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-39346i22RE..RN101,110199202-199501

main16100-69225i3VZE..VZN100199202-199208

sub16100-69475

main16100-69345i3VZE..VZN100,110199208-199501

sub16100-69485

main16100-69385i3VZE..VZN110..4FC199308-199501

sub16100-69495

16100GBOLT, STUD(FOR WATER PUMP SET)

main16193-38030i22RE..RN101,110199202-199501

16124GASKET, WATER PUMP COVER

main16124-35010i22RE..RN101,110199202-199501

16171SEAT, WATER PUMP PULLEY

main16171-35010i22RE..RN101,110199202-199501

16210COUPLING ASSY, FLUID

main16210-38060i22RE..RN101,110199202-199501

main16210-65020i3VZE..VZN100,110199202-199308

main16210-65030i3VZE..VZN100,110199308-199501

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16198-43040i3VZE..VZN100,110199308-199501

main16241-28020i22RE..RN101,110199202-199501

16371PULLEY, FAN

main16173-35020i22RE..RN101,110199202-199501

main16371-65010i3VZE..VZN100,110199202-199501

9017906070

main90179-06070

9151260625

main91512-60625

9212260622

main92122-60622

10 parts on this diagram · 2 diagrams in section
