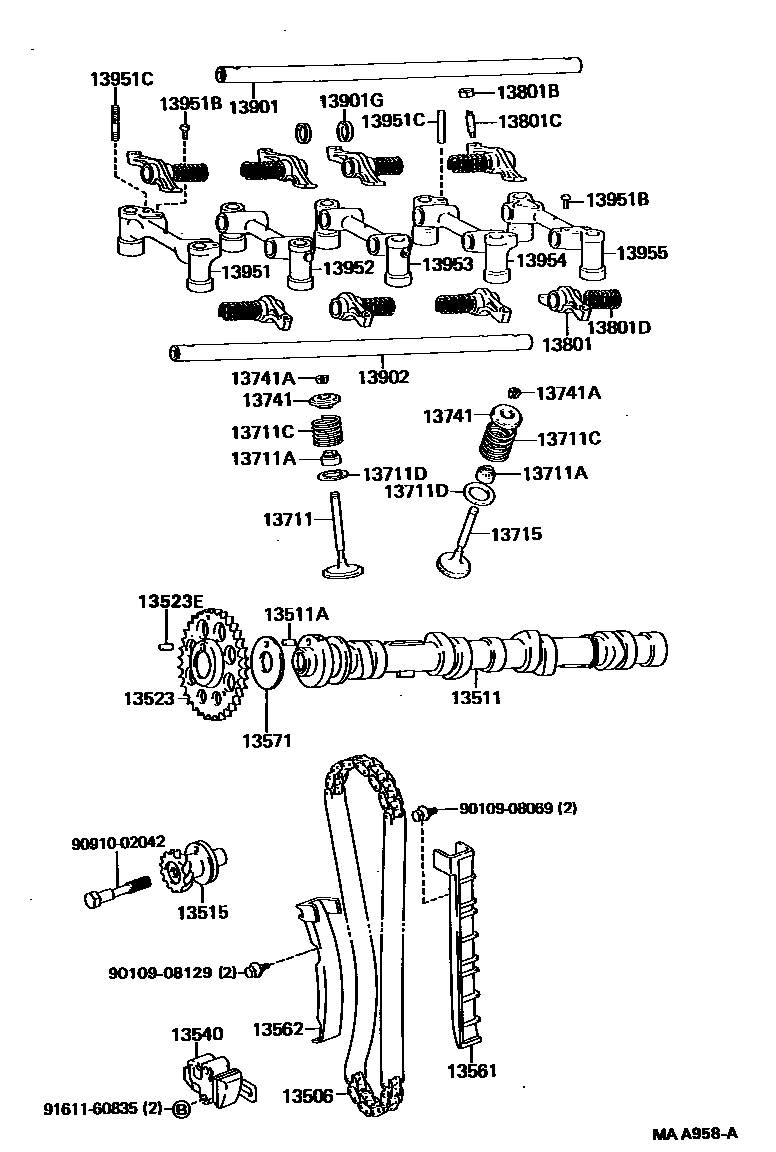

CAMSHAFT & VALVE
13506CHAIN SUB-ASSY
13511CAMSHAFT
13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)
L=15,OD=5
L=14,OD=6
13515GEAR, DISTRIBUTOR DRIVE
sub13515-37900
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13523EPIN, STRAIGHT(FOR TIMING GEAR)
13540TENSIONER ASSY, CHAIN, NO.1
13561DAMPER, CHAIN VIBRATION, NO.1
13562DAMPER, CHAIN VIBRATION, NO.2
13571PLATE, CAMSHAFT THRUST
13711CSPRING, COMPRESSION(FOR OUTER)
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13715VALVE, EXHAUST
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
13801BNUT, HEXAGON(FOR VALVE ADJUSTING)
13801CSCREW, VALVE ADJUSTING
13801DSPRING, COMPRESSION(FOR ROCKER ARM)
13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901GWASHER, ROCKER SHAFT
13902SHAFT SUB-ASSY, VALVE ROCKER, NO.2
13951SUPPORT, VALVE ROCKER, NO.1
13951BSCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)
sub93210-56008
13951CBOLT, STUD(FOR ROCKER SUPPORT)
13952SUPPORT, VALVE ROCKER, NO.2
13953SUPPORT, VALVE ROCKER, NO.3
13954SUPPORT, VALVE ROCKER, NO.4
13955SUPPORT, VALVE ROCKER, NO.5
9010908069
main90109-08069
9010908129
main90109-08129
9091002042
main90910-02042
9161160835
main91611-60835
35 parts on this diagram · 2 diagrams in section
