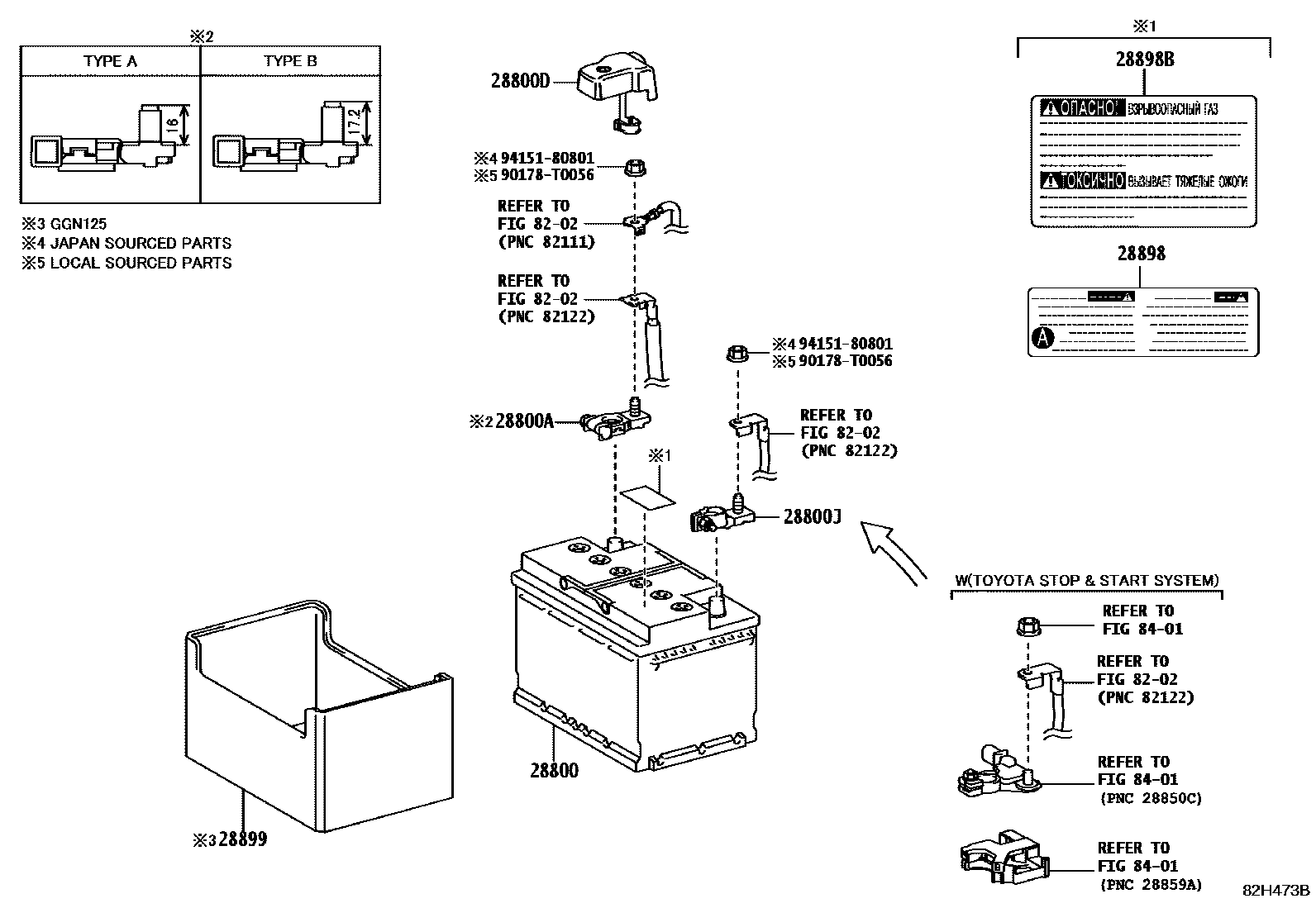

BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 1/2 0004 1HV BATTERY 2/2

28800BATTERY

main28800-0C241i2TRFE..TGN126..THP..LA;2TRFE..TGN121,136..ARL,GEN202308-202407

LN2,GS

main28800-0C251i2TRFE..TGN126,136..AGTP202311-202410

LN2

main28800-0C261i2TRFE..TGN121,126,136..SAP202402-202410

LN2

main28800-0C274i2TRFE..TGN126..THP..LA;2TRFE..TGN121,136..ARL,GEN202308-202407

LN2,FURUKAWA

main28800-0C361i1TRFE,2TRFE..TGN12#..5F..GCC202308-202407

LN0

main28800-0L380i1GDFTV..GUN126..PKN202412

80D26L

main28800-0L461i1G#,2GDFTV..GGN125,GUN125,126,13#..AGTP202311-202410

LN3

main28800-0L481i1G#,2GDFTV..GGN125,GUN122,125,126,13#..SA202402-202403

LN3

main28800-0L482i1G#,2GDFTV..GGN125,GUN122,125,126,13#..SAP202404-202412

LN3

main28800-0L491i5LE..LAN125202402-202404

LN4

main28800-0L492i5LE..LAN125202405-202410

LN4

main28800-0L504i2GDFTV..GUN125..LHD..S..GEN202308-202408

LN3,FURUKAWA

main28800-0L504i2GDFTV..GUN125..LHD..S..GEN202308-202407

LN3,TOYOTA STOP & START SYSTEM-WITHOUT,FURUKAWA

main28800-0L504i2GDFTV..GUN125..LHD..S..GEN202308-202407

LN3,CAMBODIA SPEC,FURUKAWA

main28800-0L504i2GDFTV..GUN125..LHD..S..GEN202308-202407

LN3,OCEANIA GENERAL SPEC,FURUKAWA

main28800-0L504i2GDFTV..GUN125..LHD..S..GEN202308-202407

LN3,ASEAN GENERAL SPEC,FURUKAWA

main28800-0L504i2GDFTV..GUN125..LHD..S..GEN202308-202407

LN3,AZERBAIJAN SPEC,FURUKAWA

main28800-0L511i2GDFTV..GUN125..6FC..L..GEN;2GDFTV..GUN125..LHD..(H,L)..GEN202308-202407

LN4,ASIA COLD COUNTRY SPEC

main28800-0L511i2GDFTV..GUN125..LHD..S..GEN202308-202407

LN4

main28800-0L511i2GDFTV..GUN125..LHD..S..GEN202308-202407

LN4,MOROCCO SPEC

main28800-0L521i1GDFTV..GUN126..6FC..TH202308-202407

LN4

main28800-0L521i1GDFTV..GUN126..6FC..TH202308-202407

LN4,TOYOTA STOP & START SYSTEM-WITH

main28800-0L571i2GDFTV..GUN125..LHD..S..GEN202308-202402

LN3,YUASA

sub28800-0L572

main28800-0L571i2GDFTV..GUN125..LHD..S..GEN202308-202402

LN3,TOYOTA STOP & START SYSTEM-WITHOUT,YUASA

sub28800-0L572

main28800-0L571i2GDFTV..GUN125..LHD..S..GEN202308-202402

LN3,CAMBODIA SPEC,YUASA

sub28800-0L572

main28800-0L571i2GDFTV..GUN125..LHD..S..GEN202308-202402

LN3,OCEANIA GENERAL SPEC,YUASA

sub28800-0L572

main28800-0L571i2GDFTV..GUN125..LHD..S..GEN202308-202402

LN3,ASEAN GENERAL SPEC,YUASA

sub28800-0L572

main28800-0L571i2GDFTV..GUN125..LHD..S..GEN202308-202402

LN3,AZERBAIJAN SPEC,YUASA

sub28800-0L572

main28800-0L572i2GDFTV..GUN125..LHD..S..GEN202403-202407

LN3,AZERBAIJAN SPEC,YUASA

main28800-0L572i2TRFE..TGN126..GEN;1GDFTV..GUN126..THP..6FC..S;2GDFTV..GUN125..RHD..THP..6F;2GDFTV..GUN125..THP..6F..S..(LA,SA,VN);1GDFTV..GUN126..THP..6FC..H..DCRL..GEN;2GDFTV..GU202403-202408

LN3,YUASA

main28800-0L572i2TRFE..TGN126..GEN;1GDFTV..GUN126..THP..6FC..S;2GDFTV..GUN125..RHD..THP..6F;2GDFTV..GUN125..THP..6F..S..(LA,SA,VN);1GDFTV..GUN126..THP..6FC..H..DCRL..GEN;2GDFTV..GU202403-202407

LN3,ASEAN GENERAL SPEC,YUASA

main28800-0L572i2TRFE..TGN126..GEN;1GDFTV..GUN126..THP..6FC..S;2GDFTV..GUN125..RHD..THP..6F;2GDFTV..GUN125..THP..6F..S..(LA,SA,VN);1GDFTV..GUN126..THP..6FC..H..DCRL..GEN;2GDFTV..GU202403-202407

LN3,OCEANIA GENERAL SPEC,YUASA

main28800-0L572i2TRFE..TGN126..GEN;1GDFTV..GUN126..THP..6FC..S;2GDFTV..GUN125..RHD..THP..6F;2GDFTV..GUN125..THP..6F..S..(LA,SA,VN);1GDFTV..GUN126..THP..6FC..H..DCRL..GEN;2GDFTV..GU202403-202407

LN3,CAMBODIA SPEC,YUASA

main28800-0L572i2TRFE..TGN126..GEN;1GDFTV..GUN126..THP..6FC..S;2GDFTV..GUN125..RHD..THP..6F;2GDFTV..GUN125..THP..6F..S..(LA,SA,VN);1GDFTV..GUN126..THP..6FC..H..DCRL..GEN;2GDFTV..GU202403-202407

LN3,TOYOTA STOP & START SYSTEM-WITHOUT,YUASA

main28800-0L722i1G#,2GDFTV..GGN125,GUN122,125,126..GCC202308-202407

LN3

main28800-0L732i2TRFE..TGN121,126..6FC..GCC202308-202407

LN2

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i1GDFTV,2GDFTV..GUN125,126..GHA,KEN202308-202412

TYPE A:REFER ILLUST.

main90982-05061i1GDFTV..GUN126..PKN202308-202412

TYPE B:REFER ILLUST.

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-33350i2TRFE..TGN126..THP..(GCC,GEN,LA);1GDFTV..GUN126..MHV..(ARL,GCC,LA);1G#,2GDFTV,1TRFE,2TRFE..GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i1GDFTV..GUN126..THP..6F;1G#,2GDFTV,1TRFE,2TRFE..GGN125,GUN120,121,122,125,13#,TGN120,121,136..THP;1GDFTV,2TRFE..GUN126,TGN126..THP..(5F,6FC)..(DCRL,HTWC)..(ARL,GCC,202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT

main90982-06059i1GDFTV,2GDFTV..GUN125,126..CAMP,MAP202308-202412

28898PLATE, BATTERY

main28897-36030i1G#,2GDFTV,1TRFE,2TRFE..GGN125,GUN122,125,126,TGN12#..GCC202308-202407

28898BPLATE, BATTERY

main28897-31040i2TRFE..TGN126..(H,S)..GEN202308-202407

28899INSULATOR, BATTERY

main28899-27020i1GRFE..GGN125..GCC202308-202410

8202

8401

90178T0056

main90178-T0056

9415180801

main94151-80801

11 parts on this diagram · 4 diagrams in section
