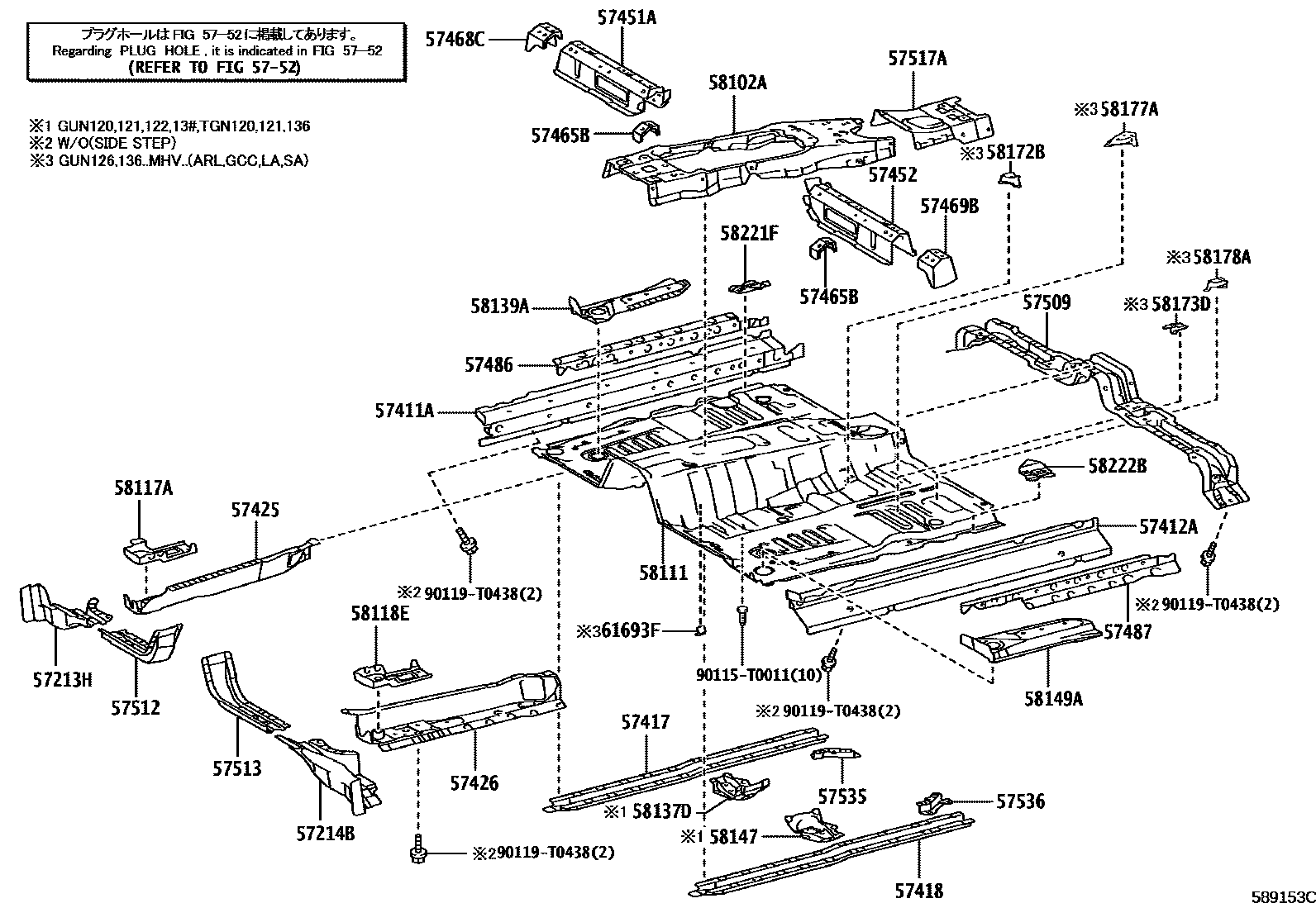

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1FLOOR PANEL 0002 1SHIFT LEVER BOOT 0003 1SIDE STEP 0004 1SIDE STEP 0005 1SIDE STEP

57213HBRACKET, BODY MOUNTING, NO.2 RH

main57213-KK010iGUN126..AGTP,SAP;GGN125,GUN122,125,13#,LAN125,TGN121,126,136..AGTP,GHAP,SAP202308-202412

57214BBRACKET, BODY MOUNTING, NO.2 LH

main57214-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-KK020iGUN125,126..CAMP,MAP202308-202412

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-KK020iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-0K010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-0K011iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202501

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202501

57451AMEMBER, FRONT FLOOR CROSS, RH

main57451-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

57465BBRACKET, FRONT SEAT, INNER

main57465-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

57468CBRACKET, FRONT SEAT, OUTSIDE, RH

main57468-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

sub57468-KK020

57469BBRACKET, FRONT SEAT, OUTSIDE LH

main57469-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

sub57469-KK020

57486REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH

main57486-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH

main57487-KK010iGUN125,126..CAMP,MAP202308-202412

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-KK010iGUN122,13#,TGN121,136..(AGTP,SAP)..(DCRL,HTWC)202308-202410

main57509-KK020iGUN125..KEN;GUN126..GHA,KEN202308-202412

main57509-KK050iGUN126,136..MHV..SA202311-202410

57512REINFORCEMENT, FRONT FLOOR, RH

main57512-0K030iGUN126..PKN202308-202412

57513REINFORCEMENT, FRONT FLOOR, LH

main57513-0K010iGUN126..PKN202308-202412

57517ARETAINER, FRONT FLOOR REINFORCEMENT, REAR

main57517-KK010iGUN125,126,13#,TGN136..RHD..MTM..SA202308-202412

main57517-KK020iGUN122,125,126,13#,LAN125,TGN121,126,136..LHD..(AGTP,GHAP,SAP)..MTM202308-202410

main57517-KK030iGUN126..RHD..THP..6FC..S;GUN126..6FC..H..(ARL,TH);GUN126..RHD..6FC..H..DCRL..GEN;GUN120,121,125,13#,TGN121..RHD..THP..6FC202308-202412

main57517-KK040iGUN126..GHA202308-202412

5752

57535BRACE, FRONT FLOOR, RH

main57535-KK010iGUN126..PKN202308-202412

57536BRACE, FRONT FLOOR, LH

main57536-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-KK010iGUN125,126,13#,TGN136..RHD..MTM..SA202308-202412

main58102-KK020iTGN126..THP..5F..(GCC,GEN,LA);GUN122,125,126,13#,TGN120,121,136..LHD..THP..MTM202308-202410

main58102-KK030iGUN126..RHD..THP..6FC..S;GUN126..6FC..H..(ARL,TH);GUN126..RHD..6FC..H..DCRL..GEN;GUN120,121,125,13#,TGN121..RHD..THP..6FC202308-202412

main58102-KK040iGGN125,GUN125,126,135,TGN121,126..LHD..THP..6FC..(GCC,GEN,LA,PH,TWN,VN)202308-202412

58111PAN, FRONT FLOOR

main58111-KK010iGUN125..6F..MA202309-202408

sub58111-KK110

main58111-KK030iGUN125,126..6FC..MA202309-202408

sub58111-KK090

main58111-KK090iGUN126..6FC..PKN202308-202412

main58111-KK110iGUN125,126..6F..KEN202308-202412

main58111-KK120iTGN126..THP..5F..(GCC,GEN,LA);GUN122,125,126,13#,TGN120,121,136..LHD..THP..MTM202308-202410

main58111-KK130iGGN125,GUN125,126,135,TGN121,126..LHD..THP..6FC..(GCC,GEN,LA,PH,VN)202308-202412

main58111-KK140iGUN125..RHD..6F..L..GEN202308-202407

BHUTAN SPEC

main58111-KK140iGUN126..RHD..6F..H..GEN202308-202407

EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)

main58111-KK140iGUN126..6F..IND202310-202409

main58111-KK150iGUN125,135..AGTP..6F..LA202311-202410

COLOMBIA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)

main58111-KK150iGUN125,135..AGTP..6F..LA202311-202410

CHILE SPEC

main58111-KK150iGUN125,135..AGTP..6F..LA202311-202410

CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)

main58111-KK160iGUN126..6FC..IND202310-202409

main58111-KK160iGUN125..6FC..L..GEN202308-202407

EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)

main58111-KK170iGUN126..AGTP..6FC..H..LA202311-202410

EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)

main58111-KK170iGUN126..TWN202308-202407

main58111-KK170iGUN126..AGTP..6FC..H..LA202311-202410

COLOMBIA SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)

main58111-KK170iGUN126..AGTP..6FC..H..LA202311-202410

CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

58118EBRACKET, JACK SET

main58118-KK010iGUN125,126..CAMP,MAP202308-202412

58137DBRACKET, FRONT FLOOR HOUSING, FRONT RH

main58137-KK010iGUN120,121,122,13#,TGN120,121,136..THP202308-202410

58139APLATE, FRONT FLOOR SIDE, REAR RH

main58139-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202412

58147BRACKET, FRONT FLOOR HOUSING, FRONT LH

main58147-KK010iGUN120,121,122,13#,TGN120,121,136..THP202308-202410

58149APLATE, FRONT FLOOR SIDE, REAR LH

main58149-KK010iGUN126..AGTP,SAP;GGN125,GUN122,125,13#,LAN125,TGN121,126,136..AGTP,GHAP,SAP202308-202412

58172BBRACKET, COMPUTER MOUNTING, NO.3

main58172-KK010iGUN126..MHV..(ARL,GCC,LA)202311-202410

58173DBRACKET, COMPUTER MOUNTING, NO.4

main58173-KK010iGUN126..MHV..(ARL,GCC,LA)202311-202410

58177AEXTENSION, FRONT FLOOR PANEL, RH

main58177-KK010iGUN126..MHV..(ARL,GCC,LA)202311-202410

58178AEXTENSION, FRONT FLOOR PANEL, LH

main58178-KK010iGUN126..MHV..(ARL,GCC,LA)202311-202410

58221FREINFORCEMENT, FLOOR PANEL, FRONT RH

main58221-KK010iGUN125,126,13#,TGN121..ARL,TWN202308-202407

main58221-KK020iGUN126,TGN126..LHD..THP..(HTWC,MHV)..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)..(GCC,GEN,IDN,LA,PH,SA,TH,VN)202308-202412

58222BREINFORCEMENT, FLOOR PANEL, FRONT LH

main58222-KK010iGUN125,126,13#,TGN121..ARL,TWN202308-202407

main58222-KK020iGUN126,TGN126..LHD..THP..(HTWC,MHV)..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)..(GCC,GEN,IDN,LA,PH,SA,TH,VN)202308-202412

61693FBRACKET, FRONT FLOOR

main53257-35030iGUN126..MHV..(ARL,GCC,LA)202311-202410

90115T0011

main90115-T0011

90119T0438

main90119-T0438

39 parts on this diagram · 5 diagrams in section
