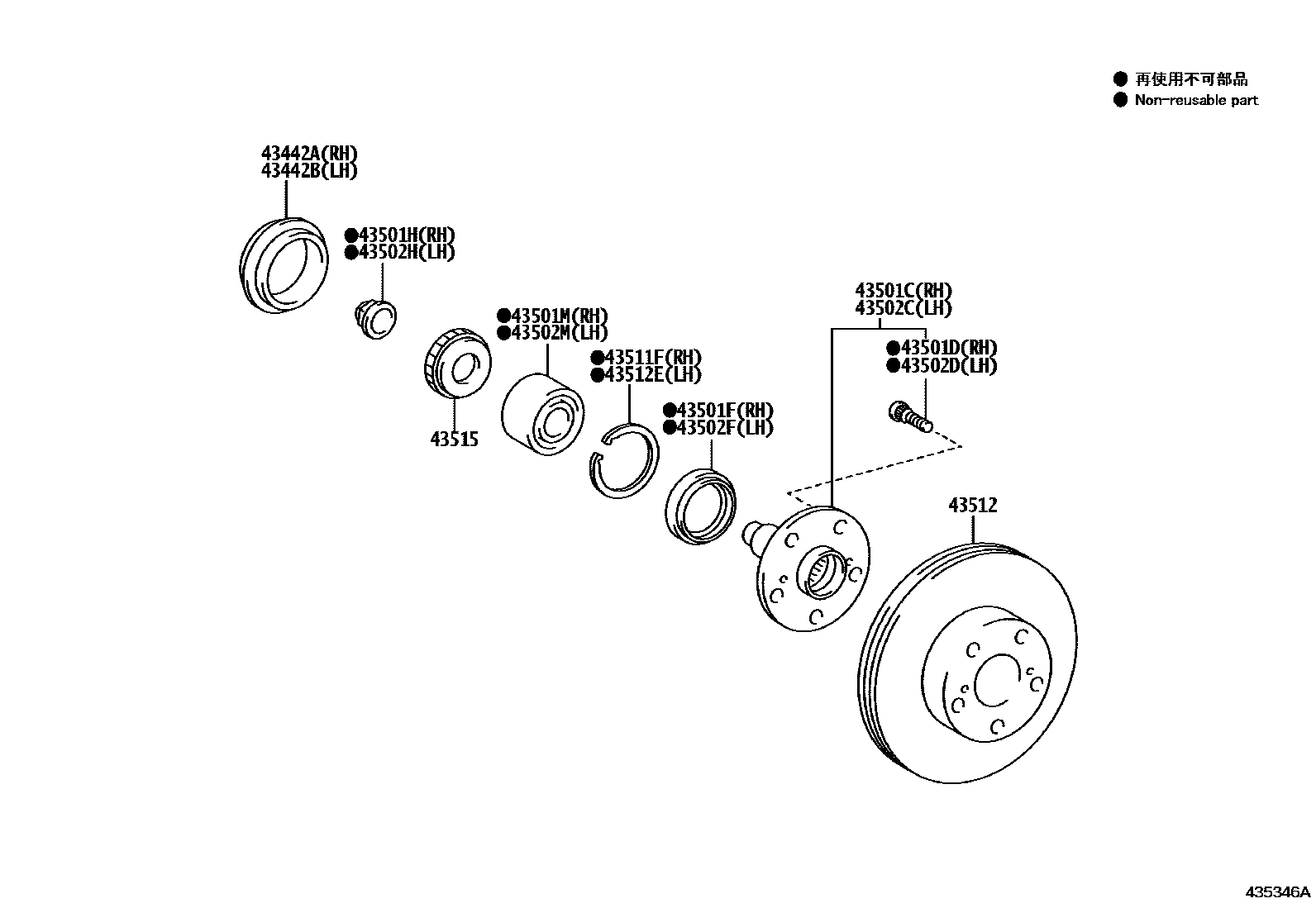

FRONT AXLE HUB

0001 1 0002 1 0003 1

43442ACAP, KNUCKLE GREASE RETAINER, INNER, RH

main43442-0K010iGUN120,121,122,13#,TGN120,121,136..THP202308-202410

43442BCAP, KNUCKLE GREASE RETAINER, INNER, LH

main43442-0K010iGUN122,13#,TGN121,136..AGTP,SAP202308-202410

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-KK010iGUN126..IND,MMR202308-202503

main43502-KK020iGUN13#,TGN136..AGTP,SAP202308-202410

main43502-KK030iGUN120,121,122,TGN120,121..THP202308-202410

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iGUN122,TGN121..SA202402-202410

main90942-02081iGGN125,GUN125,126,13#,LAN125,TGN126,136..AGTP,SAP202308-202503

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-T0090iGUN120,121,122,TGN120,121..THP202308-202410

main90312-T0001iGUN125,126..CAMP,MAP202308-202412

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90178-T0113iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN125,126..THP..(DCRL,HTWC)202308-202412

main90179-24010iGUN122,TGN121..SA202308-202410

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90080-36205iGUN122,TGN121..SA202402-202410

main90366-F0002iGGN125,GUN125,126,13#,LAN125,TGN126,136..SAP202402-202412

main90366-T0007iGUN120,121,122,TGN120,121..THP202308-202407

main90366-T0061iGUN126..IND,MMR202308-202410

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-KK010iGUN125,126..GHA,KEN202308-202503

main43502-KK020iGUN13#,TGN136..THP202308-202410

main43502-KK030iGUN122,TGN121..SA202308-202410

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iGUN122,TGN121..SA202402-202410

main90942-02081iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN125,126,13#,TGN136..THP..(DCRL,HTWC)202308-202503

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-T0090iGUN120,121,122,TGN120,121..THP202308-202410

main90312-T0001iGUN125,126..CAMP,MAP202308-202412

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90178-T0113iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN125,126..THP..(DCRL,HTWC)202308-202412

main90179-24010iGUN120,121,122,TGN120,121..THP202308-202410

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90080-36205iGUN122,TGN121..SA202402-202410

main90366-F0002iGUN125,126..GHA,KEN202402-202412

main90366-T0007iGUN120,121,122,TGN120,121..THP202308-202407

main90366-T0061iGGN125,GUN125,126,13#,TGN126,136..AGTP202308-202410

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-T0003iGUN122,TGN121..SA202308-202410

43512DISC, FRONT

main43512-0K071iGUN125..LHD..SAP..L202402-202410

VSC-WITHOUT&TIRE & DISC WHEEL-205R16C STEEL

sub43512-0K060

main43512-0K160iGUN120,121,122..PH,TH202308-202407

VSC-WITHOUT

main43512-0K230iGUN125,126..CAMP,MAP202308-202409

main43512-0K270iGUN126..IND202308-202409

main43512-0K270iGUN125,126,136,TGN126..THP..LA;GUN135,TGN136..THP..(L,S)..(GEN,LA)202308-202407

CENTRAL AND SOUTH AMERICA SPEC

main43512-0K280iGGN125,GUN125,126,13#,TGN126,136..AGTP202311-202410

main43512-0K290iGUN121..6FC202308-202407

VSC-WITH(*HSAC & *TSC)

main43512-0K290iGUN121..6F202308-202407

TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)

main43512-0K290iGUN121..6F202308-202407

CENTRAL AND SOUTH AMERICA SPEC&VSC-WITHOUT

main43512-0K290iGUN121..6F202308-202407

GR SPORT

main43512-0K290iGUN121..6F202308-202407

VSC-WITH(*HSAC & *TSC)&TIRE & DISC WHEEL-215/65R16C ALUMINUM

main43512-0K290iGUN121..6F202308-202407

GR SPORT&VSC-WITH(*HSAC & *TSC)

main43512-0K290iGUN122,TGN121..SA202308-202410

main43512-0K330iTGN126,136..SAP..S;GGN125,GUN125,126,13#..SAP202402-202410

TIRE & DISC WHEEL-265/65R17 STEEL

sub43512-0K230

main43512-0K330iTGN126,136..SAP..S;GGN125,GUN125,126,13#..SAP202402-202410

TIRE & DISC WHEEL-265/65R17 ALUMINUM

sub43512-0K230

main43512-0K330iTGN126..SAP..L202402-202410

TIRE & DISC WHEEL-225/70R17C STEEL

sub43512-0K230

main43512-0K330iGUN125,126..GHA,KEN202402-202412

sub43512-0K230

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-T0003iGUN120,121,122,TGN120,121..THP202308-202410

43515ROTOR, SKID CONTROL, FRONT

main43515-0K010iGUN120,121,122,TGN120,121..THP202308-202410

16 parts on this diagram · 3 diagrams in section
