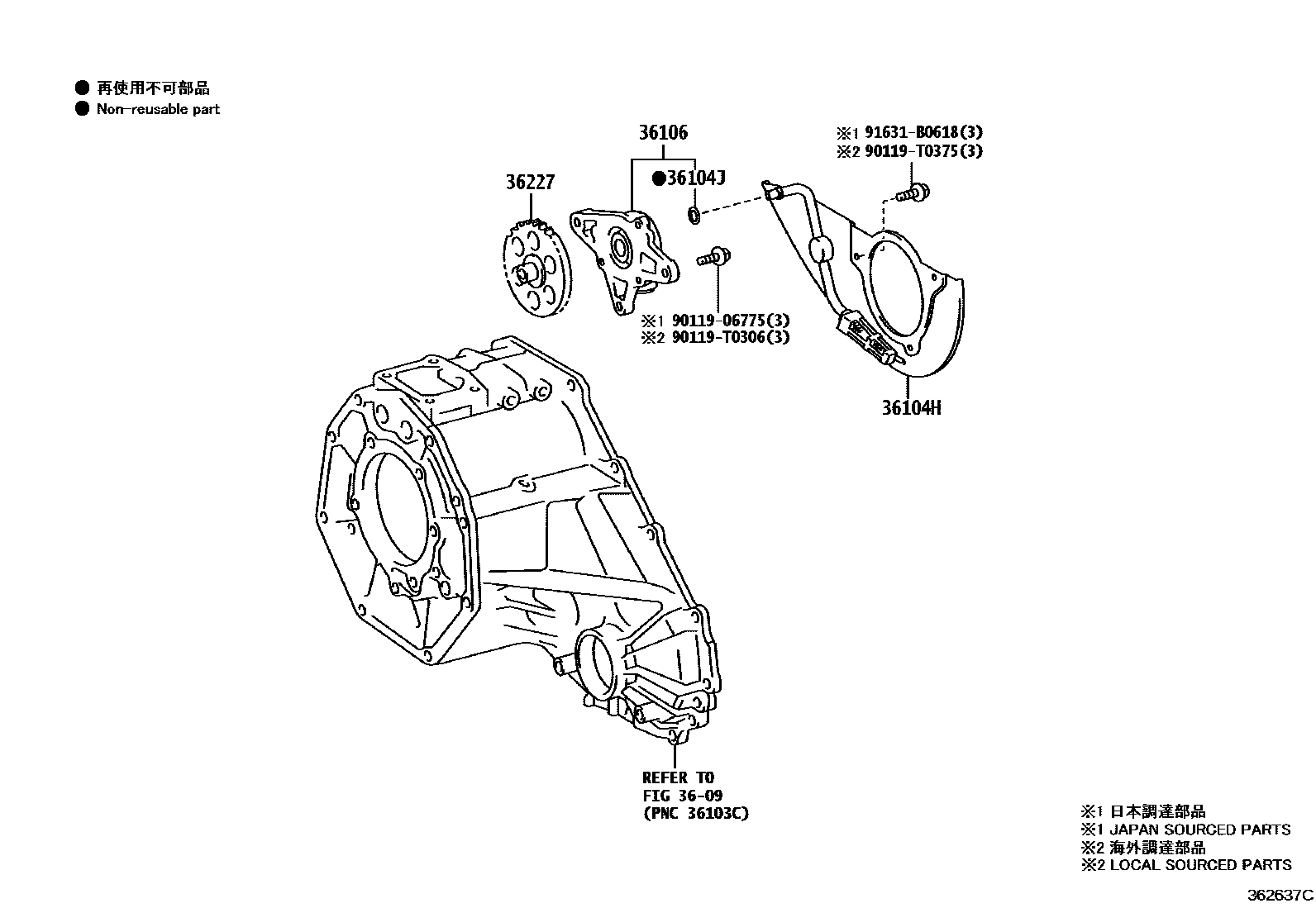

TRANSFER OIL PUMP

3609

36104HSEPARATOR SUB-ASSY, TRANSFER OIL

main36104-35021iGUN125,126..CAMP,MAP202308-202412

*382,*381

36104JRING, O (FOR TRANSFER OIL PUMP BODY)

main96721-19009iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN125,126..THP..(DCRL,HTWC)202308-202412

*382,*381

36106BODY SUB-ASSY, TRANSFER OIL PUMP

main36106-04010iGGN125,GUN125,126,LAN125,TGN126..AGTP,SAP202308-202412

*382

main36106-35070iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN125,126..THP..(DCRL,HTWC)202308-202412

*381

36227GEAR, TRANSFER OIL PUMP

main36227-0K011iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN125,126..THP..(DCRL,HTWC)202308-202412

*382

main36227-35021iGUN125,126..GHA,KEN202308-202412

*381

9011906775

main90119-06775

90119T0306

main90119-T0306

90119T0375

main90119-T0375

91631B0618

main91631-B0618

9 parts on this diagram · 1 diagram in section
