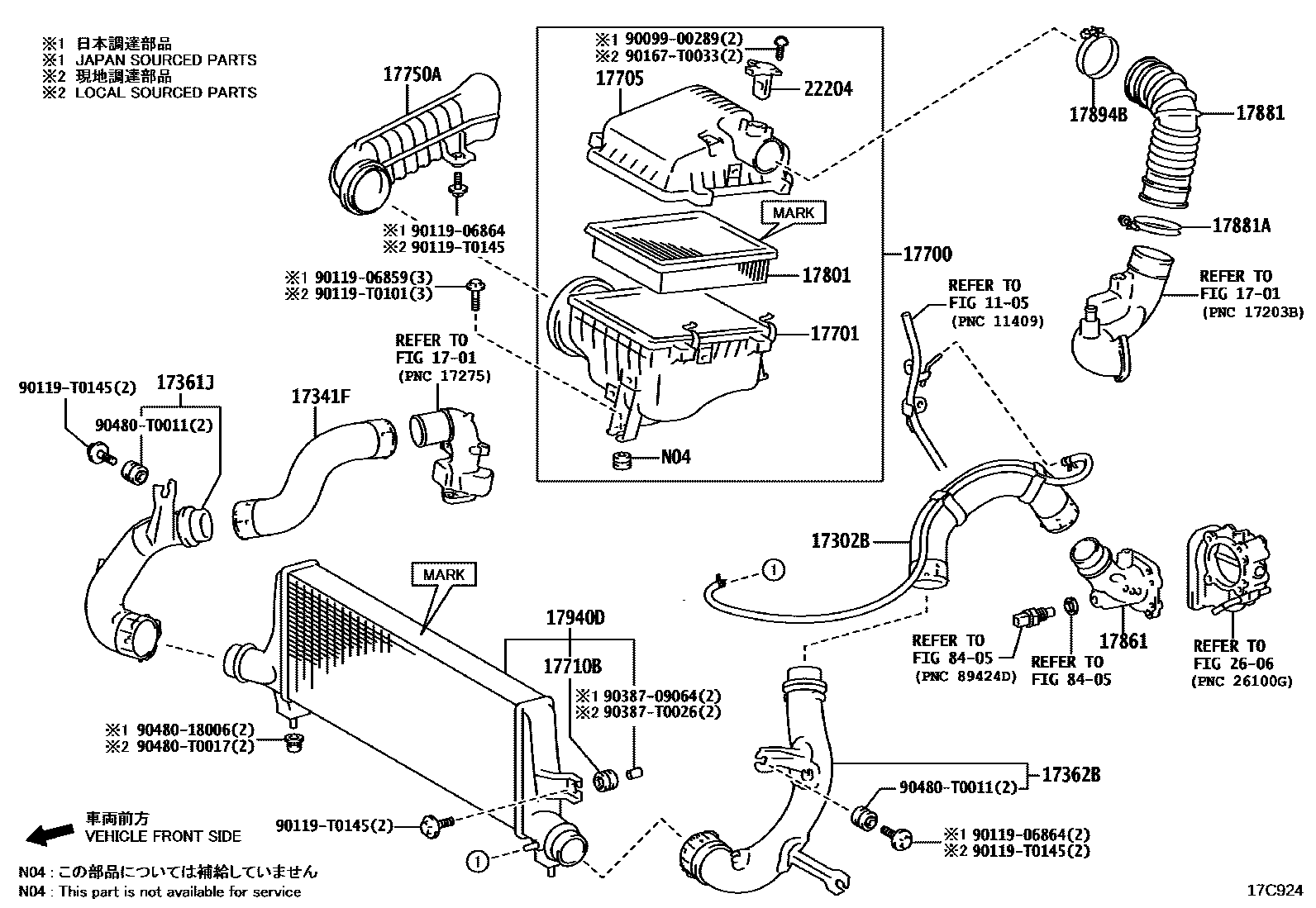

AIR CLEANER
1105
1701
17302BHOSE SUB-ASSY, AIR
main17302-0E022i1GDFTV..GUN126..MHV..(ARL,GCC,LA);1GDFTV,2GDFTV..GUN12#,13#..THP..DCRL..(ARL,GCC,GEN,IDN,LA,PH,SA,TH,VN)202308-202407
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
17341FHOSE, AIR, NO.1
main17341-0E040i1GDFTV..GUN126..MHV..(ARL,GCC,LA);1GDFTV,2GDFTV..GUN12#,13#..THP..DCRL..(ARL,GCC,GEN,IDN,LA,PH,SA,TH,VN)202308-202407
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
17361JTUBE, AIR, NO.1
main17361-0E010i1GDFTV..GUN126..MHV..(ARL,GCC,LA);1GDFTV,2GDFTV..GUN12#,13#..THP..DCRL..(ARL,GCC,GEN,IDN,LA,PH,SA,TH,VN)202308-202407
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
17362BTUBE, AIR, NO.2
main17362-0E010i1GDFTV..GUN126..MHV..(ARL,GCC,LA);1GDFTV,2GDFTV..GUN12#,13#..THP..DCRL..(ARL,GCC,GEN,IDN,LA,PH,SA,TH,VN)202308-202407
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
17700CLEANER ASSY, AIR
17701CASE SUB-ASSY, AIR CLEANER
17705CAP SUB-ASSY, AIR CLEANER
17710BGROMMET
main90480-T0011i1GDFTV..GUN126..MHV..(ARL,GCC,LA);1GDFTV,2GDFTV..GUN12#,13#..THP..DCRL..(ARL,GCC,GEN,IDN,LA,PH,SA,TH,VN)202308-202407
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
17750AINLET ASSY, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17861CONNECTOR, INTAKE AIR
BHUTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
THA SOURCED PARTS
BRAZIL SPEC
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
main17861-0C150i2TRFE..TGN136..GEN;2TRFE..TGN121..6FC;2TRFE..TGN121..5F..ARL;2TRFE..TGN126..S..(GCC,GEN);2TRFE..TGN126..THP..6FC..(H,L)202308-202407
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
main17861-0E010i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..DCRL..ARL202308-202407
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
sub17861-08020
main17861-0E010i2GDFTV..GUN125..6FC..S..GEN;2GDFTV..GUN125..RHD..6F..(H,L)..GEN;1GDFTV..GUN126..RHD..6FC..H..DCRL..GEN202404-202407
OCEANIA(EURO 5 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
sub17861-08020
main17861-0E010i2GDFTV..GUN125..6FC..S..GEN;2GDFTV..GUN125..RHD..6F..(H,L)..GEN;1GDFTV..GUN126..RHD..6FC..H..DCRL..GEN202404-202407
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
sub17861-08020
main17861-0E010i2GDFTV..GUN125..6FC..S..GEN;2GDFTV..GUN125..RHD..6F..(H,L)..GEN;1GDFTV..GUN126..RHD..6FC..H..DCRL..GEN202404-202407
AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
sub17861-08020
SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),#,THA SOURCED PARTS
sub17861-08020
MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),#,THA SOURCEDPARTS
sub17861-08020
ASIA COLD COUNTRY SPEC,#,THA SOURCED PARTS
sub17861-08020
OCEANIA(EURO 5 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),#,THA SOURCED PARTS
sub17861-08020
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),#,THA SOURCED PARTS
sub17861-08020
IND SOURCED PARTS
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),INDSOURCED PARTS
ASIA COLD COUNTRY SPEC,IND SOURCED PARTS
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,IND SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
EXPORT FROM SA&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
OCEANIA(EURO 5 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),INDSOURCED PARTS
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JORDAN SPEC,JAPAN SOURCED PARTS
IRAQ SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
AZERBAIJAN SPEC,JAPAN SOURCED PARTS
AFRICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
OCEANIA GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
CAMBODIA SPEC,JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
UAE SPEC,JAPAN SOURCED PARTS
17881HOSE, AIR CLEANER, NO.1
THA SOURCED PARTS
THA SOURCED PARTS
ZAF SOURCED PARTS
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
main90460-T0005i1GDFTV..GUN126..MHV..(ARL,GCC,LA);1G#,2GDFTV..GGN125,GUN12#,13#..THP..(DCRL,HTWC)202308-202412
17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
17940DINTERCOOLER ASSY
main17940-0E010i1GDFTV..GUN126..MHV..(ARL,GCC,LA);1GDFTV,2GDFTV..GUN12#,13#..THP..DCRL..(ARL,GCC,GEN,IDN,LA,PH,SA,TH,VN)202308-202407
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
22204METER SUB-ASSY, INTAKE AIR FLOW
2606
8405
9009900289
main90099-00289
9011906859
main90119-06859
9011906864
main90119-06864
90119T0101
main90119-T0101
90119T0145
main90119-T0145
90167T0033
main90167-T0033
9038709064
main90387-09064
90387T0026
main90387-T0026
9048018006
main90480-18006
90480T0011
main90480-T0011
90480T0017
main90480-T0017
31 parts on this diagram · 5 diagrams in section
